High Precision CNC 5-Axis Machining Center for Best Peice From China Supplier

High Precision CNC 5-Axis Machining Center for Best Peice From China Supplier

US$120,000.00-180,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
TF320
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.05~0.06(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
X,Y,Z Working Area
400*600*350mm
B,Cworking Area
+120-120; /360;
Spindle Speed
0-20000rpm
Spindle Interface
Bt30/Bt0/Hsk-A63
Atc Content
20t /24 /32t
Nc System
Hdc-848di
Transport Package
Wooden Case
Specification
3012*3705*3325(mm)
Trademark
YOSAN
Origin
China
HS Code
8501320000

Product Description

Efficient and multi-application

Product Description

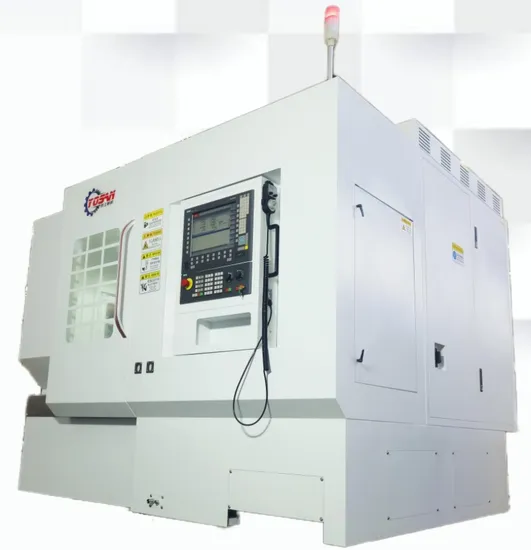

TF320 Vertical five axis machining center, is a small size of the machine tool, workpiece in a clamping can automatically continuously complete milling, drilling, boring, expansion, hinge, tapping, and other processes of processing, machine tool is suitable for small and medium-sized box, plate, plate, valve, shell, mold and other complex parts of small and medium-sized batch processing. The machine tool adopts high-precision line rail and wire bar, the machine tool has better dynamic responsiveness and high speed, can achieve high-speed cutting, low speed without crawling, in precision parts, 5G products, hardware, auto parts, medical equipment industry is widely used.
The structure of the whole machine is 3 + 2 structure.
The fuselage adopts mineral casting to stabilize the base, HT300Moving parts, DD direct drive cradle turntable, high-performance electric spindle.
Basic large-scale base adopts Mineral molding, the machine head and drag plate are made of high-strength cast iron materials, which makes the machine tool To high rigidity, good shock absorption and stable accuracy.
Strict quality control
The machine tool is installed in strict accordance with the provisions of GB/T34880.2-2017 Part 1, andUsing Renishaw laser inspection and IBS space compensation instruments to ensure the accuracy of the machine tool. Product Parameters

Description Parameter
Machine Model TF320
NC System SIEMENS 840DSL/HDC-848Di
X,Y,Z Working Area 400*600*350mm
B,CWorking Area ±120° /360°
Drilling spindle power 2.2kw
Saw spindle Electric spindle
Spindle speed 0-20000rpm
running speed 36m/min
Working speed 36m/min
Working travel 50-400 mm
diameter of table surface Ø320 mm
Spindle Interface BT30/BT0/HSK-A63
X,Y,Z PositionaI Accuracy ≤0.01mm
X,Y,Z Repeat positioning accuracy ≤0.006mm
ATC content 20T /24 /32T
WEIGHT 6T
Overall dimension 3012*3705*3325mm

Our Service

Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
*More than 95% of the timely response rate, timely response to customer questions
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Use online contact methods such as skype whatsapp facebook to provide online services to customers.
Packaging & Shipping
1.The innermost layer is EPE pearl cotton film package.
2.The middle layer is wrapping up with environmental protection material .
3.And the outermost layer is winding up with PE stretch film.
4.They're very environmentally friendly.
5.If you need a wooden box, we will make a wooden box.
Delivery Detail: Shipped in 25-30 working days after payment.
