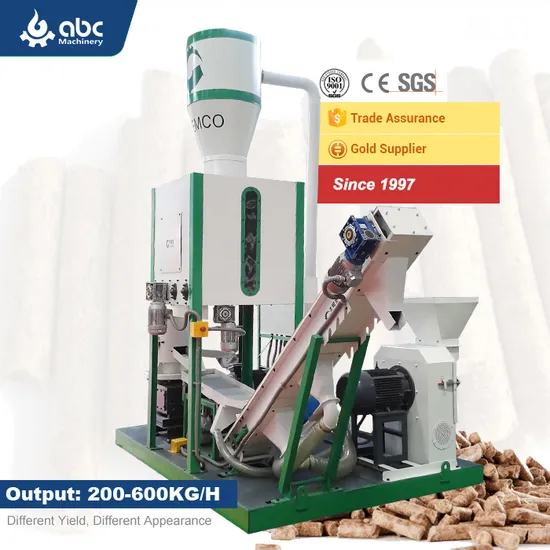

Small Wood Agricultural Wastes Portable Complete Pellet Machine for Making Agro/Farm, Reed, Leaves, Corn Stalk, Straw, Grass Pellets FL49

Small Wood Agricultural Wastes Portable Complete Pellet Machine for Making Agro/Farm, Reed, Leaves, Corn Stalk, Straw, Grass Pellets FL49

US$28,000.00 1 sets (MOQ)

Basic Info.

Model NO.
WMPL
Warranty
1 Year
Condition
New
Color
Green
After-sales Service
Provide Local After-Sales Service
Raw Materials
Wood, Biomass, Sawdust, Straw, Rice Husk, Stalks
Production Scale
Mini, Large Scale, Complete, Industrial Project
Pellets Diameter
2.5mm, 4mm, 5mm, 6mm, 8mm, 12mm, Mini/Small/Big
Types
Electric Motor, Diesel Engine, Gasoline, Portable
Output (Kg/H)
100/200/300/500/800/1000kg/H (Kg Per Hour)
Complete Pelletizing Process
Wood Chipping, Crushing, Pelletizing, Cooling
Main Market
Chile, Korea, Japan, Thailand, Indonesia, Vietnam
Final Products
Making Compact Pine Wood/Bamboo/Sugarcane Bagasse
Application
Cheap Making Pellets as Eco Biofuel
Trademark
ABC Machinery
Production Capacity
200-600kg/H

Packaging & Delivery

Package Size
120.00cm * 100.00cm * 60.00cm
Package Gross Weight
500.000kg

Product Description




Cheap Peanut Hull Compact Husk Leaves Pellet Machine

ABC Machinery is a leading manufacturer of wood pellet making machine, complete wood pellet plant and other related equipment for pelleting wood, compact leaves Pellet Machine and agricultural waste. Over 10 years of experience in equipment manufacturing and project construction has proved our strong ability and great product quality.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

↘ Main Types of Equipment for Manufacturing Wood Pellets

Flat Die Pellet Mill: Includes die turned type and roller press turned type. Best choice for home use or farm use. Ring Die Pellet Mill: Includes vertical ring die type and horizontal ring die type.
Complete Wood Pellet Plant: Offer both mini/small wood pellet plant or movable/mobile pellet plant/ peanut hull leaves Pellet Machine(200kg/h~1000kg/h) and customized full pellet line for industrial / husk leaves Pellet Machine/commercial wood pellets production. The capacity of our wood pellet production equipment for sale ranging from 1ton to 40 tons per hour.

Mobile Pellet Plant
Type
Power(Hp)
Output(kg/h)
Weight(kg)
Package Size(mm)
Wood Pellet Processing (6mm~10mm)




MPL300R
41.44
250-350
2300
3500*1960*3500
MPL400R
49.44
350-450
2400
3500*1960*3500
MPL420R
56.81
400-600
2500
3500*1960*3500

~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

↘ Various Kinds of Mateirals Suitable for Making Pellets

Wooden Materials:log, tree branch, wood chips/bricks/blocks, wood shavings, sawdust, white/Korean pine wood, paulownia, poplar, white/red oak tree, pinus sylvestris, eucalyptus, beech, spruce, palm tree, palm fiber, palm empty fruit bunches (efb) etc; Agricultural Wates: Sugarcane bagasse, rice husk, corn stalk, pineapple peel, rape straw, paddy straw, hemp straw, cotton rod, corn cob, peanut shells, groundnut hull, coffee husk, sunflower seed husk, oat husk, coconut shell, coir pitch, etc.
Energy Plant: Elephant grass, nipier grass, merker grass, pennisetum, bamboo
Others: bentonite, slime, leaves, charcoal powder, carbon black, peat, paper, cardboard, waste newspaper, olive pomace

↘ Main Application of Biomass Pellets: Biofuel, animal bedding or cat litter.
Pellet production is measured in kg per hour or ton per hour, and everyone's production needs will vary. So find a blend of size, running costs and production rates to suit your situation. Our biomass extruding equipment is capable to process hard wood and soft wood, which gives you the flexibility to choose the most economic raw material based on availability and price.

↘ Advantages of Pellet Mill

No.1 market share in China, more than 170 wood pellet production plant built in around the world. Convenient for your on-site investigation. More than 10 patents innovation technology guarantees the quality of every equipment of biomass pellet production line, eg. the smart cooling system, the 3 cylinder dryer, etc.
The capacity can reach up to 150,000T/Year.
One- stop service rang from project design to after service.
PLC intelligent control. Smart and reliable.
Factory directly sale - wholesale price!
Professional one-to-one technology support.
Stable spare parts supply.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~

↘Complete Process of Wood Pellet Line

A fully complete wood pellet production line generally includes the following 5 sections: Crushing System: Dust collecting system is very important, we adopt the Bag dust collector in Hammer mill section, and the water film Dust collector in the whole of plant. (Main equipment: debarker, wood chipper, screening machine, hammer mill / crushing machine)

Drying System: A drum drier with fireproofing and moisture checking designing is adopted. The fuel can be various, but you can only choose one as the fuel.
Pelleting System: Adopting aerodynamics technology and the current round principle, reduces the temperature in pelletizing chamber to around 90; As a result the machine can work well continuously; Timing feeder can control the feeding speed to reduce the block ratio; The body is more durable because we use spherical graphite cast iron; Capacity increased after adding another force feeder made from stainless steel to increase the feeding spread area.

Cooling System: Auto control cooling period. It makes the fresh pellets hard & dry. Cool air flows from bottom to top, while the pellets drop from top to bottom, they fully meet and cool completely; The manufacturing steel plates are 3mm thick; The cooling system consists of vessel, wind-in cone, discharge system, feed port, exhaust inlet, level control indicator; This equipment should be used with air lock feeder, cooling wind net.

Bagging System: Including automatic scale, conveyor, heat sealing devices for wood pellets; This machine is a combination of automatic weighting and filling, together with transportation sewing machine, so that it can automatically weigh, fill and sew; Computer high-speed sampling and processing, as well as the programmable control process ensure that it is universal to different packing; The special aseismic equipment can guarantee precise calculation, fast speed and stable work under bad conditions. It can be adjusted outside which is very convenient to maintain.

↘ Successful Projects of Complete Wood Pellet Line / Plant
ABC Machinery has exported to over 65 countries and regions all over the world, and can provide turnkey project design for customers, do overall onsite commissioning and offer aftersales service.
Pellets making has been proved to be one of the most promising and profitable business nowadays because of its considerable number of users. If you want to build your own husk leaves Pellet Machine, our pellet production line (which includes wood crusher, dryer, wood pellet mill, wood pellet cooler, and pellet packer) is a wise choice for you. We export small and large pellet mill plant all over the world.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
