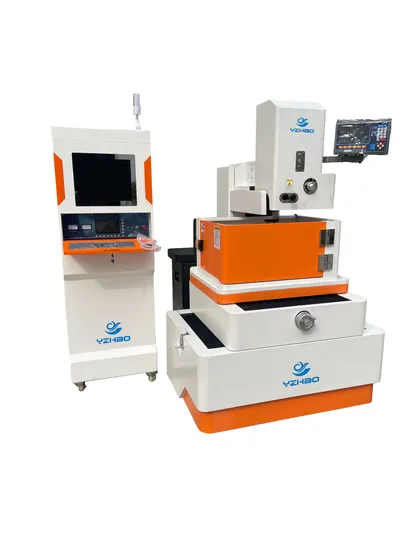

Fast Shipping Metal T800 Wire Cutting EDM Machine From Ningbo

Fast Shipping Metal T800 Wire Cutting EDM Machine From Ningbo

US$10,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
T800
Certification
CE, RoHS, ISO9001
Customized
Customized
Material
Metal
Application
Metal Cutting Machine, Metal Processing Machinery Parts
Transport Package
Wood Box
Specification
2900x2000x2400mm
Trademark
YZHAO
Origin
China
HS Code
845630109
Production Capacity
500

Product Description

Detailed Photos
Product Parameters
S/N Item Parameter
1 Model National Standard T800
2 Electrical cabinet form Standing cabinet/counter (full step type)
3 Guide rail Linear guides
4 Lead screw form Ball screw
5 XYUV Motion Motor Form Reactive stepping motor
6 Working mode of wire-moving motor Frequency Converter Speed Regulation 1~12m/s
7 Machine Protection Environmental Protection Cover
8 Woektable size 1200X800
9 X-Y Axial Travel 800X630mm
10 U, V-axis travel ±35×±35mm
11 Machining taper/thickness ±3°/80mm
12 Max. Linear Cutting Thickness 280mm(Z-axis electric lifting)
13 control mode 4-axis linkage
14 Max.Load Weight 1200kg
15 Max. Processing Current 8A
16 Max.Machining EfficiencyCr12,H=60mm ≥160 mm²/m
17 Surface roughness(Linear cutting,H≤40mm) Ra≤0.8μm(After the knife is repaired)
18 Cutting accuracyCr12,H=40mm ≤0.008mm
19 Diameter range of molybdenum wire 0.12~0.22mm
20 Silk storage capacity 300m
21 Molybdenum Wire LossCr12,H=40mm ≤0.02mm /200000mm²,
22 operating system Windows 98/XP(According to Control Software)
23 Control system AUTOCUT/HL/HF
24 communication interface LAN,RS232,USB
25 Operational function Drawing or importing CAD graphics
26 Working tank volume 60L
27 Working fluid filtration mode Screen filtration
28 Total Weight 3800 kg
29 Outward Size of Main Engine 2900x2000x2400mm
30 Cabinet size 700×850×2000mm
31 Rated power of electrical appliances ≤ 2.0kW

The series is YZHAO technical team combined with the Swiss slow wire fuselage structure and
Japan's high-frequency discharge power supply research and development.
Equipment sheet metal streamlined strong, simple and elegant appearance in line with Europe and the United States CE certification,
The fuselage structure adopts slow wire base, Panasonic AC servo motor drive, precision
And the processing efficiency can be comparable to that of slow-walking wire.
The equipment is suitable for high-precision, high-finish customers, widely used in Europe.
U.S. enterprises, large state-owned enterprises, precision research institutes, higher education.House, etc.
T800 AC full servo series in the wire cutting machine for NINGBO YZHAO INTELLIGENT MACHINE CO. , LTD "fist" products, is the most reliable and stable in the domestic wire machine tool.
The product adopts the fuselage base of the slow-walking wire, the silk transport concept of the slow-walking wire,
Filtering method of slow walking wire. Its machining accuracy, finish are slow walking
The effect of wire, large area processing without jumper phenomenon and uneven phenomenon,
It is the only product to replace the cut wire machine.
The product is widely used in: parts processing, automobile mold, aluminum profile mold etc.
With the development of the electrical processing industry and the differentiated needs of customers, tailor-made
Silk walking is becoming more and more common, and NINGBO YZHAO INTELLIGENT MACHINE CO. , LTD has launched tailor-made services to maximize satisfaction.
customer needs.
High configuration: high rigidity casting, the weight of the whole machine is 3.8 tons. Taiwan Bank Tailor
Do P3 or C3 linear guide and ball screw. "Double eye mask"
The positioning ensures stable operation of the molybdenum wire.
High precision: the whole laser interferometer detection accuracy can reach within 8um, bright and clean
Degree effect Ra<1.0um and other indicators are almost close to slow
Go wire cutting machine, and the price is only three of the same trip One in one.
Company Profile
NINGBO YZHAO INTELLIGENT MACHINE Co., Ltd. is a national high-tech enterprise, dedicating to the Research & development and manufacturing of precise CNc lathe, machine center, digital & automatic production line, With the headquarter in Fenghua, Ningbo, China. Company has its own production base of 20000 square meters, has the capability of making 6000PCS/sets machines per year.Since the foundation in 2008, driven by ongoing scientific & technical innovation, now already have a strong technique team, with European specialist three people, high-medium technician more than thirty. For better serving the esteem customers, YZHAO fully take the advantages of advanced concept and technology from EU like Italy and GER., connecting with the domestic actual manufacturing situation, for years focus on the innovation, R&D and production on the CNc turning process & smart manufacturer, forming a dozen of high performance CNC lathe machines, like P series CNC lathe with flat bed in gang tools, X series CNC lathe with slant bed in gang tools, M series turret machines, S series turning & milling centers with double spindles, and forming a dozen of high performance machine centers, T series tapping centers, V series vertical machine centers, H series horizontal machine centers, VF series 5 axis machine centers, and especially for the customized automation having the obvious features of stability & compatibility, B series automation for shaft parts, H series gantry loader automation, G series six arm robots automation, among which, the in house built-in synchronous electric spindle (from Italy technology) plays a prominent part in the precise positioning of turning & milling center application, which with a number of independent invention patents, always in the leading position of CNCturning & smart manufacturing field, going through years of rich experiences in practical application, bring to the customers more and more feasible custom-made technique solutions and turnkey projects, gaining a very good reputation in the domestic and overseas market. With strong R&D team and strength, based on mutual benefit & win-win and customized service principle, bold investment in innovation, ongoing accumulation of experiences , YZHAO is committed to bring the biggest economic benefits to more and more enterprises.

FAQ

1. What is the payment Terms ?
A : T/T or L/C ,30% initial payment when order ,70% balance payment before shipment ;Irrevocable LC at sight .
When we receive the advance payment, we will start to make production.when the machine is ready , we will take pictures to you.after we got your balance payment. we will send the machine to you.
2. what is your company mainly produces ?
A : Our company is a professional machine tool manufacturer with many years of experience. The company mainly produces CNC-Lathe; CNC-Milling Machine; CNC Cutting Machine, CNC Spare Parts, CNC Accessories, wier cutting machine,cnc machine center
3.When is the delivery time?
A: If the machine you will order is standard machine, we can ready the machine within 15days. if some special machines will be some longer. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.we will give you the answer accordingly.
4. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.but we will offer lifetime service for machine.
5. What is the packaging of the machine?
A: The standard packaging of the machine is wooden pallet with plastic film.
