US$1,000.00-10,000.00
|
1 Set
(MOQ)
|
Basic Info.
Motive Force
Electric power
Performance
Efficient Filtration
Pump Material
PPO+PPE+30%FRP
Mechanical Seal
High Density Silicon Carbide Surface
O-Ring
Viton(High Corrosion Resistance)
Water Proof Standard
IP55(Odp)
Pump Housing
Aluminum Alloy
Aluminum Alloy
220V/1n/50Hz, 380V/3n/50Hz
Max.Working Pressure
0.3MPa
Transport Package
Plywood Case
Production Capacity
5000PCS/Month
Product Description
Product Description

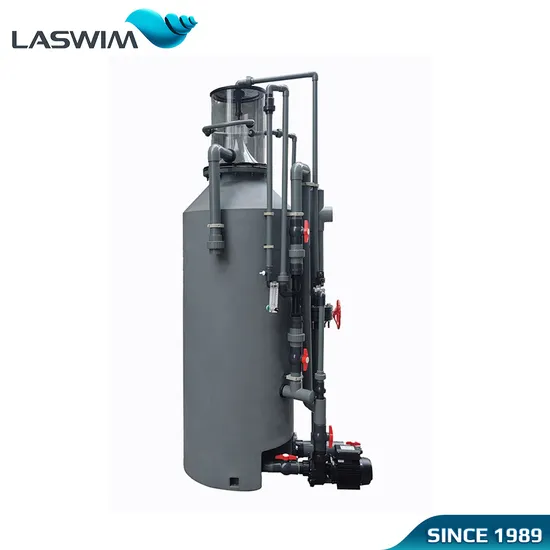

The body of this protein skimmer is made from UV-rated linear low-density polyethylene(LLDPE) material, which makes the protein skimmer rugged, ozone-resistant, and UV-resistant. It is designed to carry out the protein fractionation process efficiently and help to save the operation and maintenance costs. At the same time, stocking densities and growth rates are enhanced and animal health is improved. Protein skimmers for fresh water applications can be customized. Features:
High venturi airflow direct injection system. Rotation molded LLDPE main body. Vanstone inlet flange. Cost-saving dual seawater & potable water top cup rinse system. Individual electronic timer control and electrical solenoid for rinse system. Specially designed venturi injection pump. Adjustable air flow meter for ozone injection. Anti-siphon design. Built-in floor anchoring point. All clear acrylic top cup and funnel. Ozone vent and fresh air make up the vent on the top cup. Pillow base included for venturi pump. Retracting top cup seawater rinse spray head. Easy to install, normally 3-6 hours for complete installation with minimum tool. 3-year warranty on the main body, 1 year on other parts. Product Parameters
Seawater venturi pump
Pump material | PPO+PPE+30%FRP |
Shaft | 316SS+PVC |
Mechanical seal | High-density silicon carbide surface |
O-ring | Viton(high corrosion resistance) |
Waterproof standard | IP55(ODP) |
Pump housing | Aluminum alloy |
Power supply | 220V/1N/50Hz,380V/3N/50Hz |
Motor | 2950rpm |
Liquid temperature | 5-50ºC |
Ambient temperature | ≤50ºC |
Max. working pressure | 0.3MPa |
Technical parameters
Model | Flow rate (@120S)m³/h | Flow rate (@90S)m³/h | Diameter of reaction chamber(mm) | Total height (mm) | Total volume(L) | Venturi quantity | Water inlet(mm) | Water outlet(mm) |
WL-LDPE25 | 7 | 9 | 420 | 2134 | 226 | 1 | φ50 | φ63 |
WL-LDPE50 | 14 | 18 | 550 | 2515 | 452 | 1 | φ63 | φ90 |
WL-LDPE75 | 24 | 32 | 730 | 2591 | 797 | 1 | φ63 | φ90 |
WL-LDPE150 | 40 | 54 | 950 | 2565 | 1350 | 1 | φ90 | φ110 |
WL-LDPE300 | 84 | 112 | 1350 | 2794 | 2800 | 1 | 2*φ90 | φ160 |
WL-LDPE600 | 166 | 222 | 1650 | 3658 | 5540 | 2 | 2*φ110 | φ225 |
WL-LDPE1000 | 282 | 376 | 2134 | 3658 | 9407 | 4 | 2*φ160 | φ315 |
WL-LDPE2000 | 344 | 458 | 2134 | 4267 | 11445 | 4 | 2*φ225 | φ400 |
