US$500.00-1,300.00
|
1 unit
(MOQ)
|
Basic Info.
LCD Display
With LCD Display
Ultra High Temperature Alarm
Ultra High Temperature Alarm
Sterilization Information Recording and Printing
Sterilization Information Recording and Printing
After-Sale Service
Online Technical Support
Sterilization Class
Class B
Sterilization Temperature
121,134
Drying System
Vacuum Drying System
Sterilization Data
USB(Standard) and Printer(Optional)
Model Bkmza (Perious Name:Bkm-Z18b) B
Hand Lock Door
Water Supply System
Build-in Water Tank
Water Consumption
0.16L~0.18L in One Cycle
Tray Holder
3 PCS Ss Trays on Ss Shelf
Transport Package
Wooden or Carton Boxes
Specification
495*700*410
Production Capacity
10000
Product Description

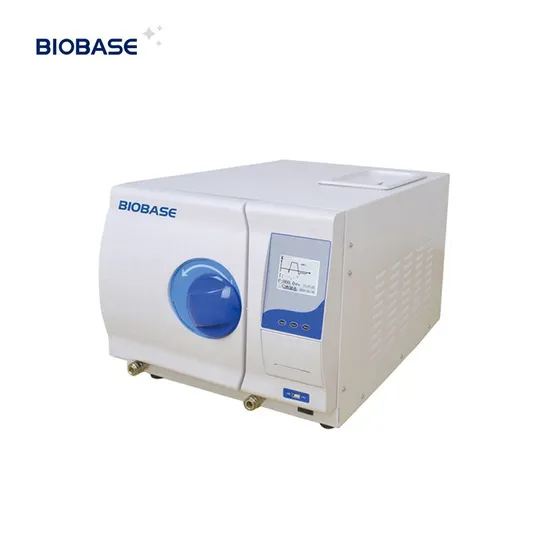

BIOBASE Table Top Autoclave Introduction:
The table top autoclave can be used for medical and surgical items in ophthalmology, dentistry and internal medicine clinics, such as packaged items, hollow and porous items for sterilization, and can also be used in emergency rooms and small laboratories.Detailed Pictures
BIOBASE18l 23l Dental Medical Autoclave Sterilizer Class B
BKM-ZB series sterilizer is an automatic high temperature and pressure rapid sterilizer which works with steam as medium.
It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.
Features:
1. Build-in open type water tank
The sterilizer adopts easy-clean open type water tank which can support repeated program running if fully injected with water.
2. High-efficiency ultimate vacuum
The sterilizer adopts high-efficiency low noise vacuum system which has excellent effects.
3. Large LCD display for BKMZA/BKMZB
The LCD screen can display temperature, pressure, time, operating status, failure warning and other information.
It is convenient for customers to observe the sterilizer running status.
4. Multiple program types
The system has various programs that include packed items, unpacked items, BD testing program, vacuum testing program and drying function.
Custom program, rapid program and preheat function(for BKM-Z16B).
5. Standard USB port for BKMZA/BKMZB
Users can store the sterilization data with USB disk.
6. Optional mini printer can be attached to record the process of sterilization.
Product Parameters
Model | BKMZA (Perious name:BKM-Z18B) | BKMZB (Perious name:BKM-Z24B) |
Capacity | 18L | 23L |
Chamber Size(mm) | φ247*360 | φ247*470 |
Sterilization Class | Class B |
Sterilization Temperature | 121ºC,134ºC |
Drying System | Vacuum drying system |
Display | LCD display |
Testing System | B&D Test Vacuum Test Helix Test |
Control Precision | Temperature: 1ºC Pressure: 0.1bar |
Sterilization Data | BKM-Z16B: Printer(optional) BKMZA/BKMZB: USB(standard) and printer(optional) |
Safety System | Hand lock door Pressure lock system Relief valve in case of over pressure Pressure or temperature over load protection Alarm for system failure, finish reminding, water level warning |
Water Supply System | Build-in water tank easy to clean |
Water Tank Capacity | 3.5L |
Water Consumption | 0.16L~0.18L in one cycle |
Tray Holder | 3 pcs SS trays on SS shelf |
Chamber | SUS304 Max working pressure: 2.3bar Min working pressure: -0.9bar Design temperature: 140ºC |
Ambient Temp. | 5~40ºC |
Noise | <65dB |
Consumption | 1950VA | 1950VA |
Power Supply | Standard: 220V±10%,50Hz/60Hz; Optional: 110V±10%,50Hz/60Hz. Wiring Method: Plug |
External Size(W*D*H)mm | 495*600*410 | 495*700*410 |
Package Size(W*D*H)mm | 610*810*590 | 610*810*590 |
Gross Weight(kg) | 63 | 65 |
You may also like
Company Profile
Packaging & Shipping
Package: Wooden Box and Carton(with pallet)
Delivery: 1~7 Workdays
Type of Shipping: Sea Freight, Air Freight, Express and Cold-Chain Transportation etc.
After Sales Service
Service :Free:
Free offer trial video for your sample
Free training video with machine
Pre-sales service:
24 hours online to ensure quick response to customers' inquiry or online message.
Guide customers to choose the best suitable machine model.
Offer detailed specification and competitive prices.
Customization available for special specification products.
Sample testing support. View our Factory.
After-sales service:
Training how to install and use the machine.
Available to service machinery overseas.
In response to customers technical problems.
12-month warranty for most of products
Your technicians can be trained by our company.
Replacement parts are available in our overseas office in USA, Dubai and India..
