Basic Info.
Controlling Mode
Artificial
Automatic Grade
Automatic
After-sales Service
1 Year
Diameter of Main Saw Blade
355mm
Diameter of Grooving Saw Blade
180mm
Transport Package
Plywood Box
Specification
6100*6200*1700mm
Packaging & Delivery
Package Size
610.00cm * 620.00cm * 170.00cm
Package Gross Weight
4000.000kg
Product Description
Technical Paremeters

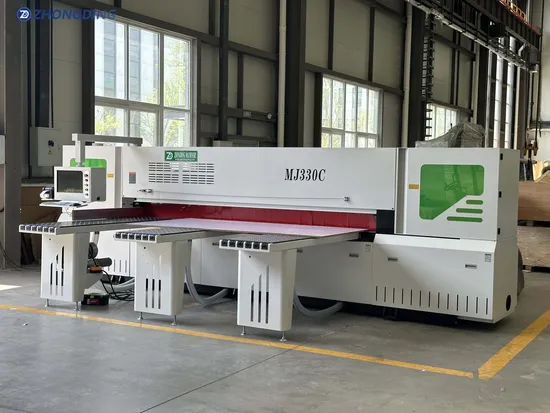

MJ330C CNC BEAM SAW MACHINE
Model | MJ330C | MJ380C |
Sawing length | 3300mm | 3800mm |
Sawing thickness | 80mm | 80mm |
Dia. of main saw blade | 355mm | 355mm |
Rotate speed of main saw blade | 3950/4500 rpm | 3950/4500 rpm |
Dia. of grooving saw blade | 180mm | 180mm |
Axis Dia. of grooving saw blade | 30mm | 30mm |
Rotate speed of grooving saw blade | 6300 rpm | 6300 rpm |
Saw carriage forward speed | 0-120 m/min | 0-120 m/min |
Saw carriage back speed | 0-120 m/min | 0-120 m/min |
Head saw motor | 15kw | 15kw |
Grooving saw motor | 2.2kw | 2.2kw |
Saw carriage drive motor | 1.5kw | 1.5kw |
Automatic feeding motor | 1kw | 1kw |
High pressure blower motor | 3kw | 3kw |
Automatic feeding speed | 0-40 m/min | 0-40 m/min |
Operation pressure | 5-7kg/cm | 5-7kg/cm |
Workbench height | 850mm | 850mm |
Net weight | 4000kg | 5300kg |
Dimensions (L*W*H) | 6100*6200*1700mm | 6450*6800*1900mm |
Product Details
Air floating platform under pressurebeam,avoiding board scratchingand assuring smoother board
movement.
Air floating platform under pressurebeam,avoiding board scratchingand assuring smoother board
movement.
Saw height independent lifting system
Saw height independent lifting system
Saw height independent lifting system
Imported electrical parts
Application
Company Profile
Qingdao Zhongding Machinery Co., Ltd. is a leading company of specializing in manufacturing and exporting woodworking machine for more than 20 years. We perform a variety of services to not only supply our clients with top quality woodworking machinery but also adequate maintenance, spare parts and technical advice.
We are committed to providing one-stop service for factory production. Replying on the favorable geographical advantages of Qingdao Industrial Park. We have formed a series of panel-type furniture equipment such as table saws, edge banding machines, and CNC routers, as well as solid wood woodworking machines such as: polishing machines, panel machine, press machine etc, which have been exported to lots of countries and regions, such as Europe, Russia, Southeast Asia, Middle East and so on. Bring our products and services for more than 66 countries people and customers.
About the payment,I should do the PI for you first,and it has the payment account number of our company, you need to pay a 30% deposit first,when we get the deposit,we will arrange the production of the machine,it takes 20 days. After the production is completed,I will send the pictures of the machine to you,next,you should pay the final payment,and we will arrange the delivery for you. Certifications
Exhibitions
Our customer feedback
FAQ
FAQ
Q1: ARE YOU A MANUFACTURER?
A1:Yes.We have 20 years manufacture and export exprience.
Q2: ABOUT THE MOQ
A2: 1 set, and we are OEM,I will give you the competitive price better than market.
Q3: MAY I BUY A SAMPLE?
A3: Of course ,sample order is welcome.
Q4: HOW CAN I PLACE A ORDER?
A4: Just give me your nice inquiry,l will do my best to assist you.
Q5: IF IWANT CHEAPER QUALITY, CAN YOU PRODUCE?
A5.Yes, just send us your quality details, such as the material, what cheaper partsinstead etc, we will do that as your request and calculate the price.
Q6: IF IORDER BIG QUANTITY, WHAT'S THE GOOD PRICE?
A6: Please send the details enquiry to us, such as the ltem Number, Quantity for eachitem, Quality request, Logo, Payment Terms, Transport method, Discharge place etc.We will make the accurate quotation to you as soon as possible.
