High Speed Wheels Sorter Parcel Sorting Conveyor / Belt Conveyor Roller Divider Wheel Sorter Conveyor for Logistic System

Product Description

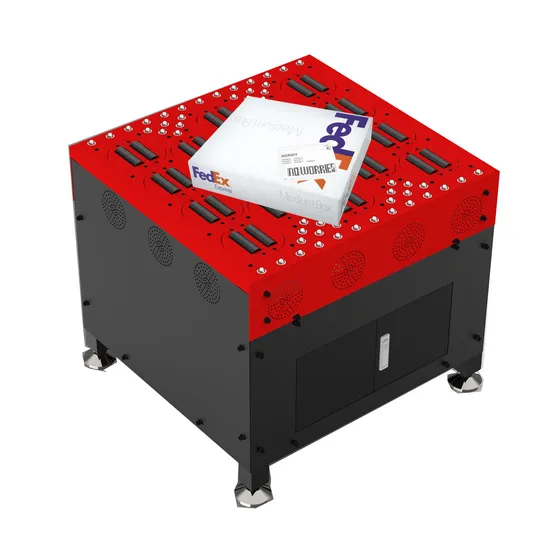

Product Description Wheel sorter is designed to sort packages in logistics , E-Commerce and other relevant industries. It is always used with dws equipment. Pacels can be sorted according to bar code or weight. A sorting diverter can offer three or five sorting directions.
Main Features: Compact designing -Five sorting directions availabe with one device
Scientific layout
-Rollers are arranged scientifically,reduce the vibration of parcel
Flexible and customizable
-Size can be customized according to individule needs
Durable and easy to maintain
-Modularized designing, each module can be replaced seperately
Parameter

Performance parameters	Oblique guide wheel K-02
Maximum sorting capacity	7500 PPH (Note: Cargo 400*400mm )
Running speed ( m/s )	1.5m/s-2.5m/s ( adjustable)
Handling package weight range	≤30kg
bag size	Maximum L600*600*600mm
Sorting direction	Sorting on both sides
Sorting module arrangement	3434
Height adjustable range	-20/+50 mm
power	1.5kw
System noise level	≤72dB
transfer method	Electric roller friction drive
Swing angle	MAX-80 ° - 80 °
Swing speed	Single 60 ° swing speed: ≤200ms
Device processing power	Bilateral efficiency 4000 pieces /H
Sorting Accuracy	≥99 %
voltage fluctuation	± 10%
package type	Carton, soft bag, snakeskin bag, and other types of packages

Ancillary equipment

wheel sorter The rolling wheel sorter can be automatically sorted into 3 directions to realize automatic sorting of parcels	Precise and efficient Reduce labor, realize the replacement of labor by machines, and improve work efficiency	Conveyor belt size can be customized The length and width can be customized according to the actual site requirements

Application

Enavelops	Sorft Parcel	Big Packages	Various box

Company Profile Senad Robot(Shanghai)Co.,LTD. Founded in 2012,Senad is a high-tech enterprise concentrated on research & development and production of high-end warehouse automation equipments. There are not only standard equipments but also customizable ones to realize different functions,such as high speed barcode scanning, weighing, volume dimensions measuring, conveying and sorting, singulating, as well as dimension weigh scan and sorting integrated line system,etc. These equipments take machine vision deep learning algorithm and robot motion control as the core, and adopt image processing algorithm, artificial intelligence, pattern recognition, video analysis algorithm, ARM|FPGA|DSP embedded software and hardware development, industrial machine vision positioning, vision tracking, vision detection, multi-sensor information fusion and other technical methods to achieve the goal of "replacing manual labor with robot". These devices are designed to enable companies to get rid of labor problems, disputes and losses caused by human errors and achieve high efficiency. Technology makes production easier. We pursue a win-win situation. Our mission is to make work easier and more efficient for our partners. We will continue to contribute to upgrading and developing the practical application of new technologies, providing our partners with high quality equipment and professional consulting services.
Certifica
Partners
FAQ Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise.It has its own software development team with complete,fast and efficient R&D capabilities . We support OEM and ODM services. Device color support customization. Q3. What is the services? Pr-sales:Customized solutions, planning and design;One-to-one service After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system Q4. How long is the product warranty period?
One year warranty except the consuming spare parts. Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A, Western Union, Money Gram and ******.If you have other payment,please contact me. Q6. Where does your company located?
Both our company and factory are located in Shanghai.
