Dr-7200b Medical Digital Radiography Dr System Flat Panel X-ray X Ray Detector

Product Description

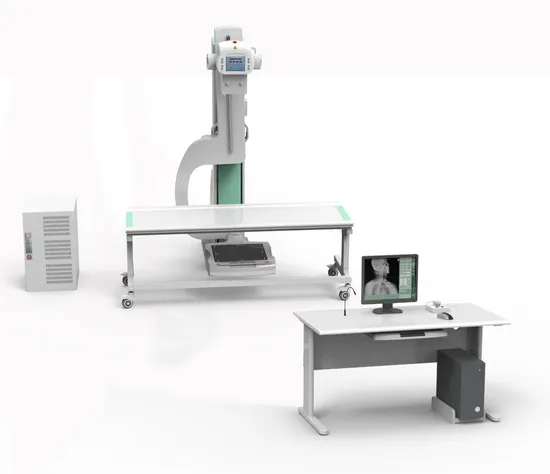

DR-7200B Medical Digital Radiography System Flat Panel X-ray Detector
Main Technical Parameters:

Item	Content		Technical Parameters
Power	Voltage		380V±38V
	Frequency		50Hz±1Hz
	Capacity		≥63kVA
	Internal Resistance		≤0.17Ω
High Frequency High Voltage X-Ray Generator (SEDECAL)	Power		50KW
	Inverter Frequency		60 KHz
	Tube voltage		40kV-150kV ,continuous adjustment
	Tube current		10mA-640mA , grade adjustment
	Exposure time		0.1ms-10000ms
X-ray source assembly (TOSHIBA E7884X)	Tube Focus:big/small		1.2mm /0.6mm
	Input power		Big focus 50kW Small focus 20kW
	Anode thermal capacity		210KJ
	Rotary anode speed		2700rpm
You can choose one kind of Flat Panel Detector from Toshiba and Vieworks, the information as belows:
Toshiba Digital Flat Panel Detector	Toshiba	FDX4343R
	Active area	430(H)×439(V)
	Pixel matrix:	3008(H)×3072(V)
	Pixel pitch:	143 μm
	Cycle time:	Less than 6 s
	Limiting resolution	3.5 lp/mm typ
	A / D transition:	14 bit
	Energy range	40 - 150 kVp
	Maximum entrance dose (low gain)	4 mR / frame
	Data output	16-bit digital output Ethernet(1000BASE - T)
	Exposure Synchronous control:	outside
	power Input:	DC 24V 2A
Digital Flat Penal Detector	Active area	350(H)×430(V)
	Pixel matrix:	2448(H)×2984(V)
	Pixel pitch:	143 μm
	Cycle time:	6S
	Limiting resolution	Min. 3.7 line pair/mm
	A / D transition:	16 bit
	Energy range	40 - 150 kVp
	Maximum entrance dose (low gain)	4 mR / frame
	Data output	16-bit digital output Ethernet(1000BASE - T)
	Sensor Protection Board	Carbon Fiber Sheet
	Exposure Synchronous control:	outside
	power Input:	DC 24V 2A
U-Arm	U-arm Vertical movement range	500mm-1650mm
	Focus-screen movement range	1100mm-1800mm
	Rotation range	-40°- 130°
	Detector rotation range	-30°- 30°
	Collimator	Electric multi-leaf
	Fixed grid for bed use	Grid density: 103L/INCH, ratio:10:1 Focal distance: 110cm/180cm, 15"×18"

Main Features:
DR-7200B high frequency digital x-ray equipment can meet different parts radiography, such as head, chest, abdomen, waist, lumber, thoracic, pelvis, limbs etc. And meet different positions radiography, such as lay decubitus, normotopia, side position etc.

1. Original imported high frequency host and high speed tube
TOSHIBA highest inverter frequency x-ray tube and SEDECAL high voltage generator
Constant direct current high voltage output, it can achieve high quality monochromatic X-Ray and eliminate the harmful effect of soft ray to image thoroughly.
Equipped with high performance and large capacity X-Ray tube
Adopt 0.6/1.2mm2 dual focus, 300KHU large capacity and high speed X-Ray tube,it is suitable for long time and high intensity clinical examination.
Intelligent high voltage control system with multiple human APR, LCD display show APR rules, and set according patients figure, position and part automatically, it's fast and convenient.
Computer progress control, remote operate, electric multi-lead collimator, adjust X-ray range as diagnosis need, this reduce X-ray harm for patients and atmosphere
There are four choices to set KV and mA diagram. AEC offer accurate exposure for different figures and promise lowers radiation for high definition photos.
Multi self-diagnosis program, has RS232 port, and with error indication function.

2. High definition digital image chain to ensure that minor lesions can not be passed.
Imported DR flat panel detector, it does not need any conversion but it can finish digital photography of each position to achieve real direct digital.

DR flat panel detector DR connected with image processor achieves low noise and rich contrast image, edge enhancement filtering device makes the edge of image more clear and sharp.
3k×3k gathering matrix, more than 900 mega pixel, promise high photo space definition, and good signal-no-noise ratio.
