415W 420W 430W 440W 450W Half-Cut Perc Mono Solar Panel for Solar Power System

Product Description

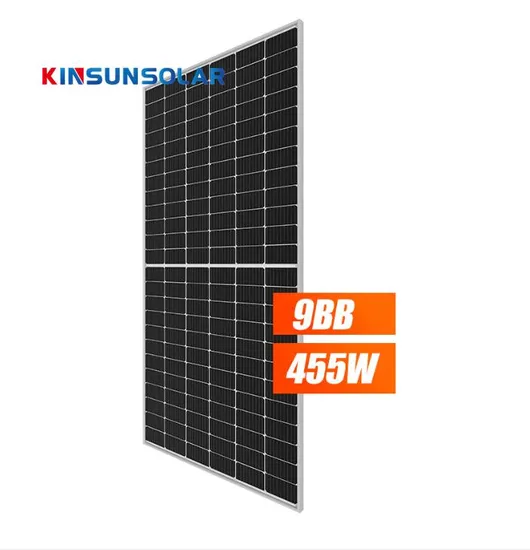

144 PCS PERC Half-cut Mono 450W solar panel
Factory dirctly sell with cheap price

General Data
Model	JS450-24M/P
Cell	Mono crystalline 166*166mm
No. of cells	144 in series
Weight	25.1kg
Dimensions	2108*1048*35(mm)
Produced in accordance with	ROHS/CE/IEC
Package info	2pcs/ carton
Electrical Data
(STC:Irradiance 1000w/m², module temperate 25OC, AM=1.5)
Power45	450Wp
Open circuit voltage	49.84V
Maximum power voltage	42.1V
Short circuit current	11.2A
Module Conversion Efficiency	15.12%
Maximum system voltage	1000V
Operating temperature	-40OC to +90OC
NOCT	45OC ± 2OC
Temperature coefficient of Isc	+0.05%/OC
Temperature coefficient of Voc	-0.34%/OC
Temperature coefficient of Pm	-0.5%/OC
Specifications included in this datasheet are subject to change without prior notice
Warranties
1.10 years limited product warranty 2.15 years at 90% of the minimal rated power output 3.25 years at 80% of the minimal rated power output

Half cell module comprises two separated and identical solar cell arrays, which means the ordinary strings of cells are cut
into hayles, and hese shorter strings compose which has speparated current paths. When a module is shaded, only one
side shaded arrary's current will be impacted , while the other arrary will still be functionally producing power . under this
circumstance. When a module is shaded, the affected working areas of blade will be 50% less. By cutting solar cell into
halves, the internal power loss will be lower and hot spot effect will also be reduced.
Remarks : above the size of solar panel ,customization is available .
FAQ:

Q: What material of solar panel?
A:Solar photovoltaics are made with a number of parts, the most important of which are silicon cells. Silicon, atomic number 14 on the periodic table, is a nonmetal with conductive properties that give it the ability to convert sunlight into electricity. When light interacts with a silicon cell, it causes electrons to be set into motion, which initiates a flow of electricity. This is known as the "photovoltaic effect."
Q: What about the leading time?
A: In general, the leading time is about 7 to 10 days. But please confirm the exact delivery time with us as
different products and different quantity will have different leading time.
Q: How about the packing and shipping?
A: Normally, we have carton and pallet for packaging. If you have any other special requirements, please feel
free to contact with us.
Q: How about custom logo and other OEM?
A: Please contact with us to make sure the detailed things before placing order. And we will help you make
the best effect. We have talented engineer and great team work.
Q: Is safety of the product?
A: Yes, the material is Eco-friendly and non-toxic. Of course, you can also make a test on it.
