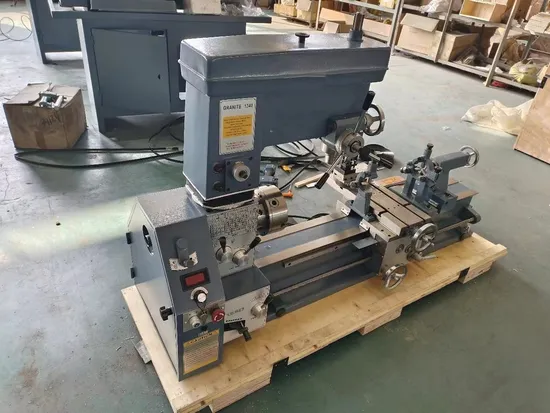

Multi-Purpose Lathe Combination Machine G1340

Product Description

Main features:
1)Has the purposes of turning, milling, drilling, boring & thread-cutting.
2)DC brushless motor, big torque at low speed, infinitely variable speed.
3)Power-driven for table in milling.
4)Cam clamping chuck.
5)Lengthened table.
6)Has the devices of safety interlock & an overload safety.
7)Lengthened drilling/milling box, 360° rotation in veritical plane.
Standard configuration:
3-jaw chuck, drilling chuck, drill taper stock, center, drawing
bar, exchange gear, tools, etc.
Special configuration:
Stand, steady rest, follow rest, milling chuck, milling cutter, live
center, etc.

Contents	G1340
Swing dia. over bed	330mm	13″
Swing dia. over table	190mm	7.5″
Distance between centers	1000mm	40″
Spindle bore	28mm	1.1″
Spindle speed	50~3000r/min
Longitudinal stroke	890mm	35″
Cross stroke	185mm	7.3″
Small toolpost stroke	70mm	2.75″
Metric pitch/grade	0.35~6.5mm/24
Inch pitch/grade	7~52T.P.I./21
Longitudinal feed/grade	0.067~0.5mm/r/21
Cross feed/grade	0.021~0.157mm/r/21
Milling-drilling spindle taper	MT3	R8
Milling-drilling shaft stroke	127mm	5″
Milling-drilling box stroke	110mm	4.33″
Table size	450×170mm	17.7″×6.7″
Drilling dia.	24mm	0.95″
Power of motor	1.1kw
Case dimensions of machine	1640×570×1110mm
Case dimensions of stand	1540×560×550MM

Company information:
Shandong Linyi Golden Star Machine Tool Co., Ltd.the original linyi machine tool plant, founded in 1965, is a research and development, production and manufacturing mechatronics CNC machine tool products and characteristics of export products for the main business of state-level high-tech enterprises, with annual production of CNC lathe, vertical machining centers, CNC milling machine, engine lathe, multi-purpose machine, surface grinding machine, etc. The comprehensive production capacity of more than Taiwan. The company has passed THE ISO9001 international quality system certification, and enjoys the right to import and export. It is a patent star enterprise in Shandong Province, with provincial enterprise technology center, provincial one enterprise one technology RESEARCH and development center, municipal engineering technology research center and key laboratory of high-grade CNC machine tool enterprises.
