Wet Sand Blasting Machine with Water Recirculation System

Product Description

Product Description

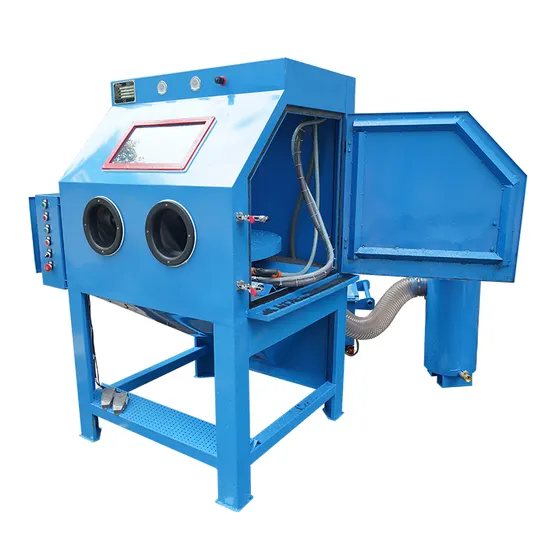

Wet Sandblasting Machine with Water Recirculation System
Wet sandblasting machine is built with a high-performance slurry pump that fully agitates water and abrasive into slurry mixture, while compressor air accelerate the slurry to the object surface, attain the purpose of removing rust, oxide layer, imperfections and other contaminants.Wet blasting machine also named vapour blasting or aqua blasting cabinet, is the initial choice for surface treatment applications that requirs the highest quality finish, especially popular in Australia, US, Canada or European countries.
Kafan wet blast cabinet can be configured with an optional recirculating rinse tank interconnected to the slurry hopper for a closed loop system. It can be fitted with a skimmer to remove floating oil or grease.
The turntable is optional in the wet sandblasting machine, and manual or automatic turntables of different sizes can be customized according to customer needs. SpecificationsSpecifications of Wet Blasting Machine

Model	KF-1010W
Outer size	Length1300 * Width1600 * Height2000mm
Working area	Length1000 * Width1000 * Height8000mm
Loading Capacity	100kgs
Motor	1.5kw
Air requirement	flow 0.5-1.1m^3/min
Light	2*18w saving lamps
Blast Gun	1 pc of wet blast gun with 1 boron cabide nozzle (8mm)
Air consumption for 1 gun	0.4-0.8Mbar
80Volume of abrasive & water	80L
Feed abrasive	10-15kgs
Abrasive : Water	1:3
Voltage	380V/220V 3 phase (customized)

Detail Features
Benefits of Wet Sandlasting Machine1. Made 3mm thick stainless steel with powder-coated surface, rigid and anti-rust.
2. Low voltage windscreen wiper and wash facility to maintain visibility throughout.
3. Durable wet blast gun with 8mm boron carbide nozzles specially for wet blasting process.
4. Reliable foot pedal controls the working of blast gun to increase operation safety.
5. A demister at the back of the machine for better view of blasting process.
6. Abrasive can be effectively recycled that causes less consumption.
7. Simple structured wet blast cabinet requires less maintenance.Operating Panel Wet Grit Blasting Machine takes electric energy as power supply. Only required to turn on the power supply to start production, which is very convenient. And the other buttons are used to regulate the whole pressure, sandblasting pressure and intake pressure.Sandblasting GunSpecial and high-performance wet blasting gun and boron carbide nozzles. And there is a blast gun holder fitted inside the cabinet, enabling the operator to present the components to the blast nozzle.Water recirculation tank -optionally equippedOptional recirculating rinse tank interconnected to the slurry hopper for a closed loop system. It can be fitted with a skimmer to remove floating oil or grease. FootswitchBuilt with footswitch to control the working process features much safer and convenient.ApplicationsWet Sand Blasting Cabinet Applications
Perfect for motors, cylinder heads, sub-sea components, aviation parts, crank cases, wheel hubs, suspension parts, bolts, master cylinders, brake calipers and valuable restoration projects.
As the media material can be varied the gentle cleaning action of Water Blasting is not limited to metals and cleans exceptionally well with plastics and rubbers.
Standard models of Wet Blasting Cabinet for Choice

Model	KF-1610W (double gun)	KF-1010W	KF-9080W
Working size	1600*1000*800mm	1000*1000*800mm	900*900*800mm
Weight	320kgs	300kgs	280kgs
Loading Capacity	100-140kgs	50-80kgs	30-50kgs
