Factory Price Best Quality Automatic Down Filling Machine for Quilt Bealead

Product Description

Quick DetailsType: Filling Machine
Condition: New
Application: Commodity, Apparel, Textiles
Automatic Grade: Fully Automatic
Driven Type: Pneumatic
Brand Name: Bealead
Net Weight: 760kg
Certification: CE Certification
After-sales Service Provided: Local agent could help service and our Engineers are available.
Feature
1) High efficient & labour saving: 2-3 times faster than manual work, one worker can support 2-3 assembly lines.
2) Accurate quantitative precision: non-contact weighing method, Dynamic weighing error ±0.01g.
3) Capable forlarge and small lattice panels: 0.1-30g
4) Healthy & environment-friendly: Dust-removal system & recycle down
5) Patented design of down outlet: easy for airtight fabrics &special soft fabrics.
6) Friendly touch screen: data storage, data revision, on-time insight.
7) Fully automatic & No need skilled labor.
8) Running in a high automatization and intellectualization,no pollution
Specification

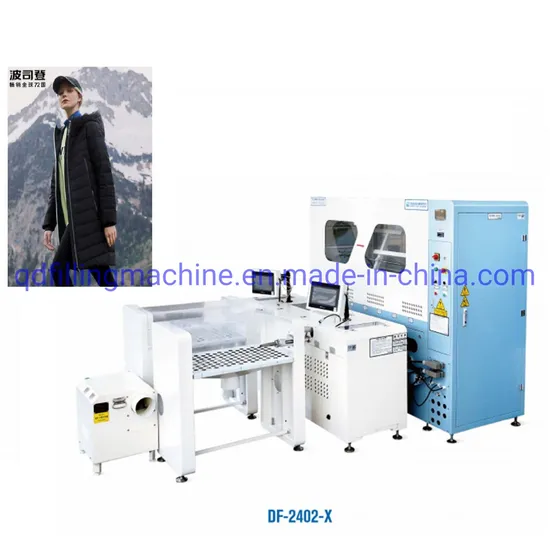

Item No.	DF-2402-X	Dimension	2000*600*1950mm
Weighing Ability	0.2-32g	Showing Accuracy	0.01g
Voltage	220v	Power	2.5kw
Working Efficency	5g/s	Material Applicaton	Down 50up

Description
1. Model X series ,2pipes,each pipe supported by 4 weighing systems.
Accuracy filling, tolerance within 2%, Could filling like 0.26g, 0.76g, 3.21g,
3. Wide measure, the range of weighing can set 0.2-20 grams once to suit for filling both separate grids and normal grids.
Excellent for extra slim Chamber, make out Perfect garment, very even.
5. Wide application for different types of down. Such as 50, 60, 70, 80, 90 down
Intelligent Management and control (Optional) Original data document can be imported into relevnt programs,thus alleviating the burden of manual input.
Filling data can be sunchronously transferred to computer.Statements and such filling information as output can be directly inquired.and remote management can also be realized.
Produce Process
Import Materials
Using motor to import down and feather to storage box.Filling material:duck down, duck feather,goose down,goose feather,milkweed velvet,ball fiber,fake down and etc.
Set up Target Weight
Set up target weight in programm,filling range isg-g,the max filling weight of home textile filling machine is 80g/filling
Start Prepared
Press the button "automatic",filling machine can be ready state automatically
Step the pedal to fill
Put the fabric piece to the filling port and hold it in right way,then step pedal,the target weight down is filled into the fabric piece.filling in this way,it can fill 1800 grids/hour/port
FAQ
Q: Why do you choose us?
A: There are 30 years of experience. We can produce any type you need.
Q: Which payment period is accepted?
A: 30% prepayment + 70% payment is paid before shipment.Welcome your inspection before shipping.
Q: What is the country we export?
A: India, Bangladesh, Vietnam, Vietnam and the Middle East, etc.
Q: How to visit the factory?
A: At your most convenience.
Welcome to visit us!
