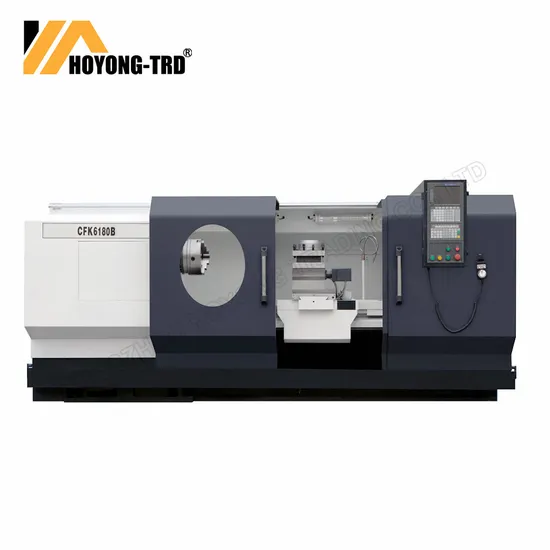

CNC Lathe with Flat Bed Factory Price Cfk6180b Cfk6180d Cfk6180q
| US$23,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CFK6180B CFK6180D CFK6180Q
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
CE, RoHS, ISO 9001
Condition
New
Max.Length of Workpiece
1000mm
Max.Turning Length
850mm
Max.Swing Over Bed
630mm
Main Spindle Bore
104mm
Transport Package
Plywood Case
Specification
6800kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
| Item | Unit | CFK6180B | |
| NC System | GSK 980TDi Accept customized product | ||
| Max.length of workpiece | mm | 1500/2000/3000/5000/6000 | |
| Max.Turning length | mm | 1350/1850/2850/4850/5850 | |
| Max.swing over bed | mm | 800 | |
| Max.turning dia.over slide | mm | 480 | |
| Distance between spindle centerline to plane guide | mm | 400 | |
| Spindle center height from the ground | mm | 1130 | |
| Span of guide-Way | mm | 600 | |
| Main spindle bore | 104 | ||
| Spindle nose | C11 | ||
| Spindle taper hole | 1:20/120 | ||
| Center of spindle | Morse NO.6 | ||
| Ranges of spindle speeds | r/min | 8~32;20~80;100~440;310~1000/22~100;50~230;95~440;210~1000 | |
| No.of spindle speeds | Forth gears,smooth adjustment | ||
| Gear shift | Manual/Auto | ||
Main servo mortor | Model | ZJY265A-11BM | |
| Power | KW | 11 | |
| Rated speed | r/min | 1500 | |
| Rapid traverse speed of X-axis | m/min | 4 | |
| Rapid traverse speed of Z-axis | m/min | 8 | |
| Min.feeding set unit of X-axis | mm | 0.001 | |
| Min.feeding set unit of Z-axis | mm | 0.001 | |
X-axis motor | Rated speed | r/min | 1500 |
| Torgue | N.m | 15 | |
| Power | KW | 2.3 | |
Z-axis motor | Rated speed | r/min | 1500 |
| Torgue | N.m | 22 | |
| Power | KW | 3.5 | |
Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 | |
| Taper | Morse NO.6 | ||
Electric tool-post | Model | HJLD170 | |
| No.of tool stations | Vertical four-station | ||
| Dimension | mm | 250*250 | |
| Max.main cutting torque | N.M | 3200 | |
| Turret indexing time | S | 3.6 | |
| Overall dimension | L*W*H | mm | 3700*1950*1750/4390*1950*1750/5390*1950*1750/6390*1950*1750/7390*1950*1750 |
| Machine weight | Kg | 5500/5800/6100/6400/6700 | |
| Item | Unit | CFK6180D | |
| NC System | GSK 980TDi Accept customized product | ||
| Max.length of workpiece | mm | 1500/2000/3000/5000/6000 | |
| Max.Turning length | mm | 1350/1850/2850/4850/5850 | |
| Max.swing over bed | mm | 800 | |
| Max.turning dia.over slide | mm | 480 | |
| Distance between spindle centerline to plane guide | mm | 400 | |
| Spindle center height from the ground | mm | 1130 | |
| Span of guide-Way | mm | 600 | |
| Main spindle bore | 140 | ||
| Spindle taper hole | 1:20/150 | ||
| Center of spindle | Morse NO.6 | ||
| Ranges of spindle speeds | r/min | 8~32;20~80;100~440;310~1000 | |
| No.of spindle speeds | Forth gears,smooth adjustment | ||
| Gear shift | Manual | ||
Main servo mortor | Model | ZJY265A-11BM | |
| Power | KW | 11 | |
| Rated speed | r/min | 1500 | |
| Rapid traverse speed of X-axis | m/min | 4 | |
| Rapid traverse speed of Z-axis | m/min | 8 | |
| Min.feeding set unit of X-axis | mm | 0.001 | |
| Min.feeding set unit of Z-axis | mm | 0.001 | |
X-axis motor | Rated speed | r/min | 1500 |
| Torgue | N.m | 15 | |
| Power | KW | 2.3 | |
Z-axis motor | Rated speed | r/min | 1500 |
| Torgue | N.m | 22 | |
| Power | KW | 3.5 | |
Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 | |
| Taper | Morse NO.6 | ||
Electric tool-post | Model | HJLD170 | |
| No.of tool stations | Vertical four-station | ||
| Dimension | mm | 250*250 | |
| Max.main cutting torque | N.M | 3200 | |
| Turret indexing time | S | 3.6 | |
| Overall dimension | L*W*H | mm | 3700*1950*1750/4390*1950*1750/5390*1950*1750/6390*1950*1750/7390*1950*1750 |
| Machine weight | Kg | 5500/5800/6100/6400/6700 | |
| Item | Unit | CFK6180Q | |
| NC System | GSK 980TDi Accept customized product | ||
| Max.length of workpiece | mm | 1000/1500/2000/3000 | |
| Max.Turning length | mm | 850/1350/1850/2850 | |
| Max.swing over bed | mm | 800 | |
| Max.turning dia.over slide | mm | 520 | |
| Distance between spindle centerline to plane guide | mm | 400 | |
| Spindle center height from the ground | mm | 1230 | |
| Span of guide-Way | mm | 550 | |
| Main spindle bore | 104 | ||
| Spindle nose | C11 | ||
| Spindle taper hole | 1:20/120 | ||
| Center of spindle | Morse NO.5 | ||
| Ranges of spindle speeds | r/min | 6~24;24~90;85~325;325~1200/22~100;50~230;95~440;210~1000 | |
| No.of spindle speeds | Forth gears,smooth adjustment | ||
| Gear shift | Manual/Auto | ||
Main servo mortor | Model | ZJY265A-11BM | |
| Power | KW | 11 | |
| Rated speed | r/min | 1500 | |
| Rapid traverse speed of X-axis | m/min | 4 | |
| Rapid traverse speed of Z-axis | m/min | 8 | |
| Min.feeding set unit of X-axis | mm | 0.001 | |
| Min.feeding set unit of Z-axis | mm | 0.001 | |
X-axis motor | Rated speed | r/min | 1500 |
| Torgue | N.m | 10 | |
| Power | KW | 1.5 | |
Z-axis motor | Rated speed | r/min | 1500 |
| Torgue | N.m | 18 | |
| Power | KW | 2.8 | |
Tailstock quill | Diameter | mm | 100 |
| Travel | mm | 250 | |
| Taper | Morse NO.5 | ||
Electric tool-post | Model | HJLD170 | |
| No.of tool stations | Vertical four-station | ||
| Dimension | mm | 250*250 | |
| Max.main cutting torque | N.M | 3200 | |
| Turret indexing time | S | 3.6 | |
| Overall dimension | L*W*H | mm | 3150*2100*1950/3650*2100*1950/4150*2100*1950/5150*2100*1950 |
| Machine weight | Kg | 3700/4300/4700/5300 | |
