US$0.38-0.98
|
1,000 Pieces
(MOQ)
|
Basic Info.
Certification
CE, ISO, RoHS
IDC Conductor
0.5mm Phosphor Bronze, Tin-Plating
PCB
Fr-4, 1.6mm Thickness
Plug Insertion Life
750 Cycles Min.
Plug Retention Force
≥ 11 Lbf
Insulation Resistance
≥ 500 MΩ
Transport Package
Standard Export Carton
Specification
High Impact Flame Retardant Plastic UL94V-0
Production Capacity
1, 000, 000 PCS/Month
Product Description

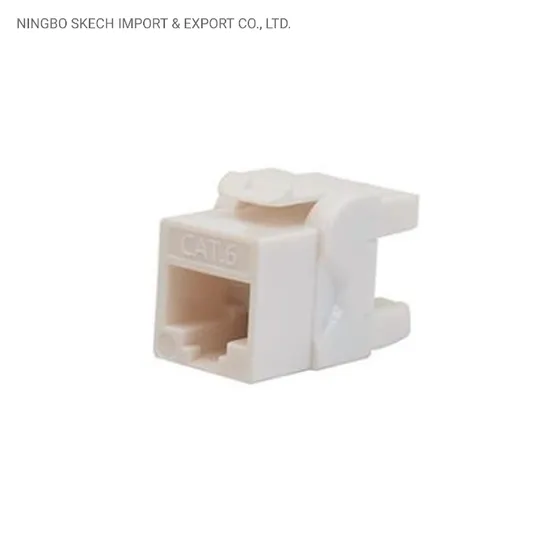

Product Description UTP Cat6 Keystone Jack 180 degree RJ45 Keystone Jack Network Keystone Jack RJ45 module Ethernet Jack 8P8C
Applicattion: Structured cabling transmitting data ,voice, video. Suitable for working area, central room, managing room, equipment room and subsystem applications. Telephone, Computer, Workstation, Mobile phone, Laptop.
Detailed Photos
Standards Verification:
ANSI/TIA-568-C.2 ;
ISO/IEC 11801 :2002/Amd.2:2010 ;
YD/T 926.3-2009 ; ISO/IEC 60603-7 COMPLIANT ;
RoHS directive 2002/95/EC compliant
Product Parameters
Electrical |
Part Number | KJ-UC6110-020 |
Category | CAT6 |
Color | White, Black |
Current Rating | 1.5A |
Insulation Resistance | ≥ 500 MΩ |
Contact Resistance | ≤10 mΩ |
DC Resistance | ≤ 0.1 Ω |
DC/AC Volt Endurance | DC1000V/AC750V 1min |
Mechanical |
Plug Insertion Life | ≥750 Cycles with FCC Compliant RJ-45 Plug Min. |
Plug & Jack Contact Force | ≥100 Grams with FCC Compliant RJ-45 Plug Min. |
Plug Retention Force | ≥ 11 lbf |
Durability | 200 Termination Cycles Min. |
Operating Temperature | -10~60°C |
Operating Humidity | 10%~90%RH |
Storage Temperature | -40°C TO 68°C |
Physicals |
Housing | High impact flame retardant plasticUL 94V-0 rated |
PCB: | FR-4, 1.6mm Thickness |
Jack Wire: | 0.35 mm Phosphor bronze gold over nickel plating |
IDC Conductor | 0.5mm Phosphor bronze, tin-plating |
Contact Compatibility | Accommodates 26 to 23AWG Solid |
Certifications ISO , CE RoHS
Packaging & Shipping Packaging: 1 PC in Ploybga or customized, 1000 pcs in one outer standard export carton.
Shipping: By Sea, by Air, by Train, by DHL, UPS,TNT FedEx and EMS express.
FAQ Q1:How can you guarantee the delivery time?
A: To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience.
Q2. Can you make products according to the samples?
A: Yes, it's available to make products according to customers' requests. We can set new mould or modify ours .
Q3. What is your sample policy?
A: Free Sample is provided if there is in stock, and customers need to pay the freight fee.
Q4. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
Q5: How do you make our business long-term and good relationship?
A: 1.Our high quality and competitive price are the most important factors to maintain long-term and good
relation -ship with our customers.
2. Good service is our basic principle for every customers.
Q6: What's The Lead Time Of Mass Production?
A: Generally 2-4 weeks. We will inform you the delivery time after receiving your payment.
