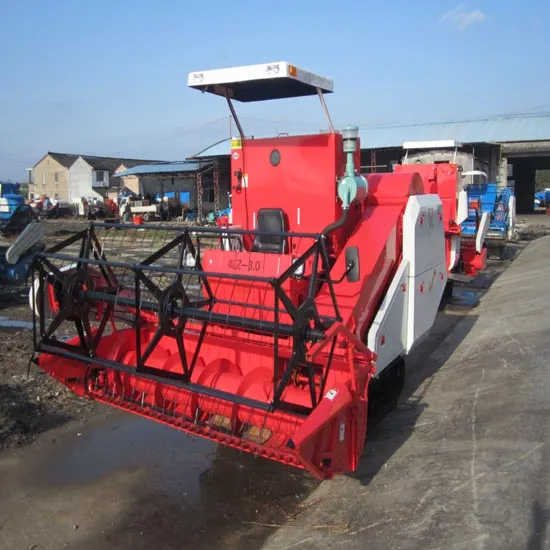

4lz-2.0 4lz-3.0 Agricultural Combine Harvester

4lz-2.0 4lz-3.0 Agricultural Combine Harvester

US$12,000.00 1 Set (MOQ)

Basic Info.

Model NO.
4LZ-3.0
Application
Rice, Corn, Wheat, Soybean, Rice, Corn, Wheat, Soybean, Rice, Wheat
Power Source
Tractor, Diesel
Harvest method
Cutting
Drive Type
Gear Drive, Vee Belt
Transmission
Soft Shaft, Soft Shaft
Portable Harvester Type
Side Hanging Type, Rubber Track Type
Certification
ISO9001:2008, CE, ISO9001:2008, CE, ISO9001:2008
Color
Red, Red
Condition
New, New
Application Field
Agriculture, Livestock, Aquaculture, Forestry, Agriculture, Livestock, Aquaculture, Agriculture
Warranty
1 Year, 1 Year
Harvest Method
["Picking","Picking"]
After-Sales Service
1 Year
Undercarriage
Ribber Track Type
Transport Package
Seaworthy Packing
Specification
ISO9001
Trademark
huanhai
Origin
Shandong, China
HS Code
8433510090
Production Capacity
20000 Units Per Year

Product Description


Main advantages:
1. Compact structure, excellent performance, Low ground pressure, high performance in wet or mud land
2. High threshing ability, low broken rate. Low lost rate
3. Thorough clearance with double shakers for re-threshing
4. Famous brand engine with large power and stable performance
Model 4LZ-2.0
Cutting width 2000mm
Working capacity 0.4 hec/h
Fuel consumption 6-8L/h
engine horsepower 70HP(52KW)
Weigh (kg) 2550
Track 350mm*90mm*46
Dimensions at work, LxWxH(mm) 5240x2690x2675
Total losses (%) Rice≤3.0 ,Wheat≤1.5
lmpurity rate (%) ≤2.0
Breakage rate (%) ≤1.5
Reliability (%) ≥93
Feed rate (kg/s) 2.0
Ground pressure (Kpa) ≤24
Min.ground clearance (mm) ≥200
grain Tank 0.3m3 (storage 150kg rice)
Cleaning type Double sieves + blower + re-thresher
Grain unloading method Sacked & Auto unloading
Shipment 1set/20'FCL,3sets/40'HQ

ltem\ Model 4LZ-3.0
Cutting width 2580mm
Working capacity 0.47 hec/h
Fuel consumption 8-10L/h
engine horsepower 60KW(82HP)
Weigh(kg) 3200
Track 400mm*90mm*48
Dimensions at work,LxWxH(mm) 5280x2960x3000
Total losses(%) Rice≤3.0 ,Wheat≤1.5
lmpurity rate(% ≤2.0
Breakage rate(%) ≤1.5
Reliability(%) ≥93
Feed rate(kg/s) 3.0
Ground pressure(kpa) ≤24
Min.ground clearance(mm) ≥200
grain Tank 1.3m3 (storage 700kg rice)
Cleaning type Double sieves + blower + re-thresher
Grain unloading method Sacked & Auto unloading
Shipment 2sets/40'HQ

Feeding Capacity (kg/s)
4
Work Dimension L*W*H (mm)
4900*2890*2700
Weight (kg)
2900
Cabin/Sun Shade
Sun Shade



Engine Part
Model No.
Changchai 4L88
Power/Speed (hp/rpm)
88/2700
Fuel
Light Diesel Oil
Fuel Capacity (L)
160
Fuel Consumption (kg/hm2)
12~30
Start
Motor Starter
Gear Box
ZKB85 made by WORLD Factory.
HST
45CC HST Imported from South Korea.






Walking Part


Rubber Track
Length of Ground Contact (mm)
1700
Center Distance (mm)
1160
Size (mm)
500*90*51
Average Contact Pressure (kpa)
≤20Kpa
Min. Ground Clearance (mm)
300
Gear Shifts
Variable Sun-transmission 3 Shifts
Walk Speed (Km/Hour)
Low: 0~1.85 Medium: 0~6.5 High: 0~9
Theoretical Work Speed (Km/Hour)
0.9-6.5



Harvesting Unit
Grain Lifter
Divider
Working Width (mm)
2200

Reel Bat
Dia. × Length (mm)
900×2028
Gearshift Method
Constant Speed
Adjusting Means
Hydraulic
Stubble Height[Lift] (mm)
25cm or above




Threshing & Harvesting Unit
Threshing Mode
Axial Flow Type, Bullet Rotor

Threshing Rotor
Type of Threshing
Beat Bar
Dia. ×Length (mm)
620*2050
Rotating Speed (rpm)
662/732
Fan
Diameter
400
Separating Type
Vibrating Sieves + Air Blow
Area of Sieves (Lowe and Upper Sieves) (m2)
1.645
Grain-unload Unit
Grain Tank Capacity (m3)
1.4
Grain Discharging Type
360 Degree Rotary Discharging Pipe
Alarm Units
Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger
Work Efficiency (hm2/h)
0.4~0.7
Crops
Rice, Wheat
Total Loss
Less than 2.5%
Breakage
Less than 1.5%
Impurity
Less than 1.5%
