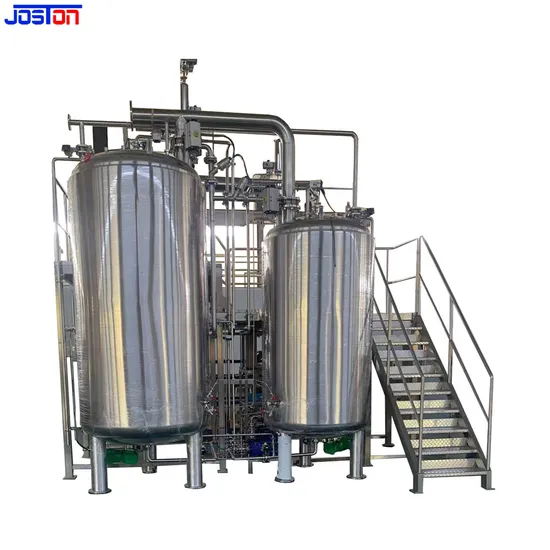

Customized Biopharma Preparation Machinery Manufacturing Equipment Mixing Tank System

Product Description

Product Description Solution Preparation System
Solution Preparation System can be used for the different fields ,like the pharmaceutical field which can be used in the low viscosity solution like infusion solution ,injection solution ,eye drop solution ,syrup solution ,oral liquid,vaccine,lotion etc ,in the cosmetic field ,it can be used for the cream ,ointment ,hand sterilizer etc ,for the food field ,it can be used for the juice process machine ,milk cooling tank ,beverage preparation etc .also can be used for the chemical field ,like the solvent blend -ethanol ,methanol ,acetone etc .
In the pharmaceutical field ,the Stainless Steel Jacketed Solution Preparation Blend Mixing Tank is used to WFI water with Pharmaceutical API together according to the technological proportions. Which can be used in the infusion water ,injection solution etc ,the tank is designed company with CIP/SIP system ,can be PLC automatic control the whole production process .
Solution Preparation System can be standardized and humanized according to the requirements of production process. In the mixing process, it can realize the feed control, discharge control, mixing control and other manual and automatic control.
Solution Preparation System is composed of mixing tank body, upper and lower heads, agitator, support, transmission device, shaft seal device, etc. heating device or cooling device or metering device can also be configured according to process requirements.
Solution Preparation System flow charter Advantages
WFI (PW) +APIs powder / additives powder→Manufacturing tank →filter →final mixing for the additives→filter →storage tank →filling(package ) Detailed Photos
Remark :The drawing just for reference. Product Parameters Technology data for Stainless Steel SS304 SS316L :

Model Item	PYG-50	PYG-200	PYG-1000	PYG-2000	PYG-5000
Tank work volume:L	50	200	1000	2000	5000
Motor power for high shear emulsifying:Kw	1.1	1.5	4.0	5.5	15
Agitator speed for high shear emulsifying :RPM	0-1440 or 0-2900
Motor power propeller type agitator g:Kw	0.37	0.75	2.5	3.0	5.5
Agitator speed for propeller type agitator :RPM	0-150
Motor power anchor type agitator g:Kw	0.55	1.5	4.0	5.5	11
Agitator speed for anchor type agitator :RPM	0-45
Bottom magnetic type agitator :KW	0.18	1.5	2.2	3.0	5.5
Bottom magnetic type agitator Speed RPM	0-350 ( for the gear motor connection type ),0-600 (for direct motor connection type )
Inside shell pressure MPa	-0.1/0.3 (can be done as client's URS)
Jacket pressure MPa	0.3 (can be done as client's URS)
Jacket heating medium	Steam/hot water
Jacket type	Single full/limpet coil/dimple jacket /inside coil tube

Remark :above model just for reference ,we can do according to client's URS Company Profile
SERVICE
We have established some overseas agent office to make the after-sales serivce already ,so it can will be service client in fast response .also in our headquarter service team ,there is a expert team which can support client in 7*24 hours .
1. Customer inquiry and consultation (URS documents)
2. Confirmation of treatment plan (DQ documents &PID Drawing)
3.Quotation offer with the technolgy document (Quotation PI )
4.Engineering and Manufacturing (Prodcution &Quality inspection )
5. Product inspection (FAT documents)
6. Delivery arrangement and loading work (full set Shipment documents)
7. After-sales service (OQ,PQ ,SAT documents)
FAQ
Q: Are you a factory or a trading company?
A: We are a manufacturer. Our company specializes in producing and manufacturing industrial machinery, including stainless steel reactors, evaporators, crystallizers, distillers, and complete production lines for various applications such as fruit juice and herbal essential oil extraction. By maintaining our own manufacturing facilities, we ensure high-quality control, competitive pricing, and the ability to customize equipment to meet our clients' specific needs.
Q: Do you supply samples?
A:No,we do not supply sample as our product is machines.
Q: Do you do OEM and ODM service?
A:Yes,we do,we can make the equipment as per your drawing,or you give us the technical requirements,we can help design as well.
Q: How will your company control the equipment quality?
A: We have a rigorous quality control process that includes: Use of high-quality materials and components In-house testing and inspection at various stages of production Compliance with industry standards and certifications Continuous improvement and adherence to best manufacturing practices
