X/Y Axis Positioning Accuracy ± 0.03mm/M CNC Dual-Table Fiber Laser Cutting Machine

Product Description

Product Description
HLB Series Dual-Table Fiber Laser Cutting Machine
The CNHAWE HLB series laser cutting machine is a highly efficient solution designed for professional, high-volume cutting of thin metal sheets. Its modular construction and mortise-and-tenon joint structure provide exceptional stability and durability. Featuring a high-strength aluminum crossbeam, the machine delivers outstanding dynamic performance. The fully enclosed design, combined with a dual-platform system, ensures safe and streamlined production. Optimized for low-cost, high-speed, and precise cutting of carbon steel and stainless steel, this machine is equipped with a market-tailored bus control system for intuitive operation and reliable performance.
The application range of laser cutting machines is very wide, covering many industrial and manufacturing fields. In the metal processing industry, it can be used to cut various metal plates such as carbon steel, stainless steel, aluminum alloy, etc. In the field of automobile manufacturing, laser-cutting machines can be used to cut car body parts. In the electronics industry, laser-cutting machines can be used to cut the housings and circuit boards of electronic components.
Product Parameters

Model	HLB3015	HLB4020	HLB6025
Processing area	3000mmX1500mm	4000mmX2000mm	6000mmX2000mm
X/Yaxis positioning accuracy	±0.03mm/m	±0.03mm/m	±0.03mm/m
X/Y axis repeat positioning accuracy	±0.02mm	±0.02mm	±0.02mm
X/Yaxis max.positioning speed	110m/min	110m/min	140m/min
X/Y axis max.acceleration	0.8g	0.8g	1.0g
Max.load of worktable	0.7t	1.0t	3.0t
Dimension(L*w)	8700mmX5700mm	10800mmX6300mm	15000mmX7000mm

Detailed Photos

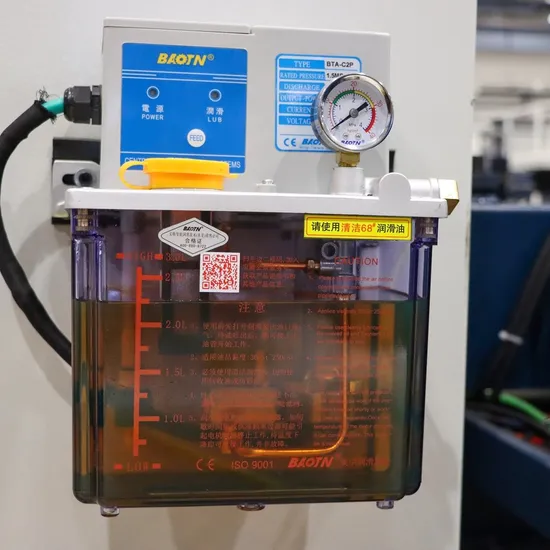

Auto Lubrication
Automatic lubrication system operates periodically according to the machine's schedule, automatically dispensing lubricating oil for quick and convenient maintenance. This effectively prolongs the machine's service life.
Cutting Head
The cutting head of CNHAWE laser family features a lightweight and compact design, enhancing motion efficiency and enabling faster speeds with increased acceleration. Its air-tight seal protects internal optics, ensuring longevity and consistent performance. Additionally, the optimized gas path design supports both low and high-pressure process gases, providing versatility across various cutting applications. The cutting head also incorporates an intelligent anti-collision function and versatile edge detection, enhancing operational safety and cutting accuracy. These features collectively contribute to the machine's high-speed operation, excellent dynamic characteristics, and rapid acceleration, ensuring precision and efficiency in cutting applications.
Laser Source
Our laser cutting machine is equipped with a state-of-the-art fiber laser generator, renowned for its high efficiency and reliability. This advanced laser source delivers a consistent and powerful beam, ensuring precise and clean cuts across a variety of materials. Its design emphasizes energy efficiency and longevity, reducing operational costs and maintenance requirements. The compact and robust construction of the laser generator allows for seamless integration into our machine, contributing to its overall performance and durability. The main brands are Raycus, Maxphotonics, IPG, and nLIGHT.
Operating System
Our cutting software, based on Cypcut, is a highly efficient and user-friendly fiber laser cutting software developed specifically for optimizing the performance of our machines. It features easy installation, simple debugging, and outstanding performance. The software supports power-based speed adjustment and separate import linear speed settings, offering greater flexibility for users. With its comprehensive cutting process database, it ensures precise and reliable cutting across various applications.
Air Cooler
The purpose of installing an air cooler is to reduce the overall temperature inside the electrical cabinet and ensure its smooth and stable operation. This is achieved by forcibly dissipating the heat generated by electrical components. This will greatly extend the service life of electrical components.
FAQ
Q1: How to get an accurate quotation from us?
A1: Please provide us with detailed information on the material, maximum thickness, and maximum width.
Q2: Can you provide OEM service?
A1: Yes, we can. Your design is accepted and your logo can be used on the machine.
Q3: How much is the shipping cost from China to your country?
A3: We can send the machine to your port or door address by sea or air. Please tell us your nearest port or address and zip code. We have reliable shipping agents to ensure safe, convenient, and on-time delivery.
Q4: How to operate this machine?
A4: Video line from our factory or we send you the video directly.
Q5: Do you provide teaching and training?
A5: Training in supplier factory.
