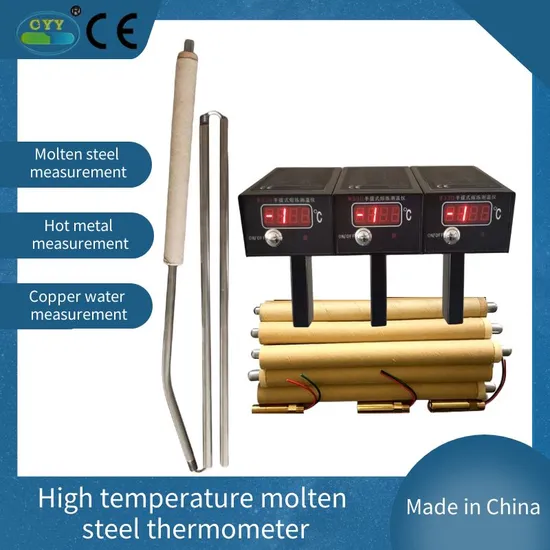

High Temperature Liquid Steel Thermometer for Measuring The Temperature of Molten Metal in Iron and Steel Casting

Product Description

Product Description
Application of CYY-W330 portable melting thermometer:
CYY-W330 portable smelting thermometer is produced by Nanjing changyouyi Analytical Instrument Manufacturing Co., Ltd. It is a high-precision special thermometer specially developed for smelting, casting and other industries to quickly measure the temperature of molten metal in the smelting process. The temperature measuring instrument is based on high-performance single-chip microcomputer, adopts high-precision measuring sensors and various intelligent processing technologies, which improves the anti-interference ability of the instrument and ensures the long-term stable operation of the temperature measuring instrument. The thermometer can be used together with the corresponding thermocouple to measure temperature rapidly and accurately in a variety of smelting occasions.Features
CYY-W330 portable melting thermometer adopts the integrated design with the temperature measuring gun. According to the working environment of the melting temperature measuring field is bad and the temperature is high, the portable melting thermometer adopts the shock resistant all metal shell design and high brightness LED digital tube display, which is durable. It has the following characteristics:
1. When the temperature measurement in the furnace is successful, the temperature value will be maintained automatically.
2. Lights and buzzers simultaneously prompt the end of temperature measurement (the test gun can be lifted).
3. Alarm for coupling breaking, over range, power under voltage, etc
4. The power supply adopts Ni MH rechargeable battery (it can measure temperature thousands of times after one charge). Turn on the power, when there is no signal input for 2 minutes, automatically turn off the power (power saving)
5. Five kinds of thermocouples can be used. Because of the anti-interference measures adopted, it has excellent anti-interference ability. When the medium frequency furnace is electrified for melting, it can measure temperature in the furnace without power off.
Detailed Photos
Measuring range

Thermocouple Type	Measuring range (ºC)	Applicable occasion
Single platinum and rhodium	KS-602/T4 0~1750	Steel, iron, copper liquid
Single platinum rhodium	O R / HR 0~1750	Steel, iron, copper liquid
Double platinum rhodium	KB-602/T4 500~1800	high temperature molten steel
Tungsten rhenium	KW-602/T4 0~2000	Steel, molten iron
