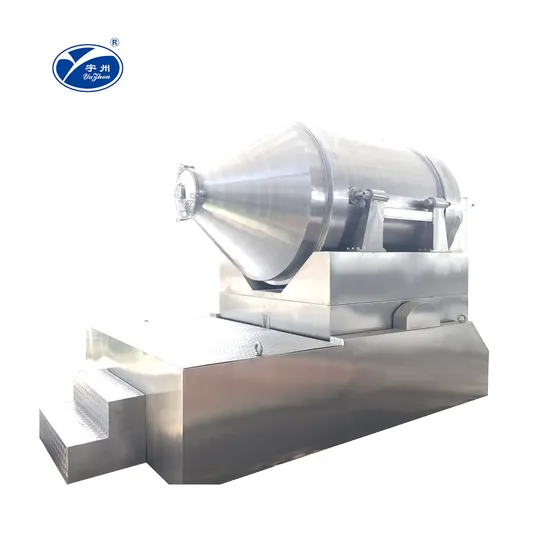

Eyh Series Two-Dimensional Motion Mixer
| US$5,000.00-30,000.00 | 1 set (MOQ) |
Basic Info.
Model NO.
EYH
Application Area
Chemical
Certification
CE, ISO
Condition
New
Main Material
Stainless Steel
Mixing Drum Shape
Drum
Stirring Type
Diving
Working
Diffusion Mixer
Professional Manufacturering
Strong Technical Power
Good Price
Experienced After Sale Service
Package
Wooden Case
Payment
Tt L/C
Delivery
90days
Certificate
ISO9001 ISO14001
Mixer Type
Powder Mixer
Layout Type
Horizontal
Operating Type
Cycle Operating
Transport Package
Standard Wooden Case
Specification
EYH
Trademark
Yuzhou
Origin
China
HS Code
847982
Production Capacity
5-4000kg Per Batch
Product Description
PRODUCT CATEGORIESProduct Description EYH Series Two Dimensions Mixer
With Large production capacity, EYH two-dimensional motion blender is a high efficiency and energy saving blender . It is mainly made up of drum, swing rack and frame. Supported by four wheels, the drum is installed in the swinging rack. Materials to be mixed will be rotated when the cylinder is rotating, and will be mixed from left to right and vice versa when the cylinder is swinging. As a result of these two motions, this two-dimensional motion blender is suitable for blending of all powder and granule materials.
| Model | Barrel volume | Loading capacity | Maximum loading capacity | Number of rotation | Total motor power | Overall dimension | Gross weight | Barrel weight |
| EYH-10 | 10 | 5 | 2.5 | 85 | 0.021 | 310×400×450×395 | 15 | 4 |
| EYH-30 | 30 | 15 | 7.5 | 61 | 0.19 | 540×580×900×700 | 60 | 8.5 |
| EYH-60 | 60 | 30 | 15 | 50 | 0.4 | 700×730×1100×990 | 115 | 15 |
| EYH-150 | 150 | 75 | 37.5 | 37 | 1.15 | 800×1050×1450×1340 | 190 | 50 |
| EYH-300 | 300 | 150 | 75 | 30 | 1.15 | 900×1350×1550×1400 | 340 | 60 |
| EYH-600 | 600 | 300 | 150 | 23.6 | 3 | 1170×1640×2050×1910 | 1150 | 140 |
| EYH-800 | 800 | 400 | 200 | 19.8 | 3 | 1320×1950×2150×2000 | 1600 | 200 |
| EYH-1000 | 1000 | 500 | 250 | 19.8 | 3 | 1360×2040×2300×2170 | 1700 | 240 |
| EYH-1500 | 1500 | 750 | 375 | 16.2 | 4.4 | 1580×2400×2550×2330 | 2000 | 320 |
| EYH-2000 | 2000 | 1000 | 500 | 16.2 | 7.4 | 1740×2600×2770×2550 | 2600 | 430 |
| EYH-3000 | 3000 | 1500 | 750 | 13.8 | 11 | 1800×2900×2950×2800 | 3500 | 620 |
| EYH-4000 | 4000 | 2000 | 1000 | 12.8 | 13 | 1970×3300×3300×2950 | 4100 | 700 |
| EYH-6000 | 6000 | 3000 | 1500 | 11.2 | 18.5 | 2300×2900×3800×3100 | 6100 | 1100 |
| EYH-8000 | 8000 | 4000 | 2000 | 10.4 | 22 | 2540×4100×4050×3650 | 7900 | 1450 |
| EYH-10000 | 10000 | 5000 | 2500 | 9 | 30 | 2900×4500×4400×4020 | 9500 | 1650 |
The mixing barrel swings while rotates so that the materials in the barrel can be fully mixed. Because the discharge port of the barrel is out of the barrel cenbtreline, the mixer features quick mixing and discharging, as well as high volume mixing capacity.
Features
1. This two-dimensiona blending machine is sterile, dust-free and totally enclosed.
2. Two-dimensional motion blender features quick blending and discharging, as well as high volume mixing capacity.
