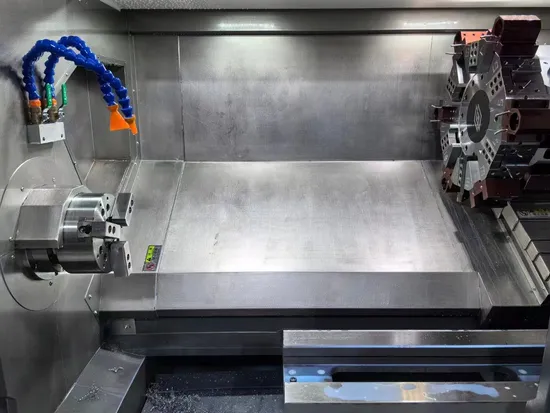

Linear Guidway High-Precision Slant Bed Jt68-1000 CNC Lathe Machine From China
| US$40,000.00-41,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JT68-1000
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
CNC System
GSK
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Standard Chuck
Hydraulic Chuck
Net Weight
5500kg
Transport Package
Seaworthy Packing
Specification
2890*1910*1850mm
Trademark
JT
Origin
China
HS Code
84589100
Production Capacity
1500sets/Year
Product Description
Product Parameters
| Technical Agreement for JT52/1000 FANUC System | ||
| Zhejiang JingTai CNC Equipment Co., Ltd. | ||
| Item | Name | Parameters |
Processing Range | Maximum Swing Over Bed Diameter (mm) | Φ620 |
| Maximum Turning Diameter (Disc Type) (mm) | Φ520 | |
| Maximum Swing Over Carriage Diameter (mm) | Φ350 | |
| Maximum Workpiece Length (mm) | 1030 | |
| Maximum Bar Material Through Hole Diameter | Φ52 | |
| Center Distance (mm) | 1050 | |
Travel and Fast Feed | X-axis Travel (mm) | 300 |
| Z-axis Travel (mm) | 1100 | |
| X, Z Axis Rapid Traverse Rate | 20 m/min | |
| X, Z Axis Servo Motor | bis22/bis22 | |
Spindle | Spindle Nose Type | A2-8 |
| Spindle Through Hole Diameter (mm) | Φ66 | |
| Maximum Spindle Speed (rpm) | 3000 | |
| Spindle Motor Power (kw) | 18.5 | |
| Chuck and Rotary Cylinder Specifications | 10 inch | |
| Machining Accuracy | X, Z Axis Repeatability | ±0.002mm |
| X, Z Axis Positioning Accuracy | ±0.004mm | |
Hydraulic Tailstock | Tailstock Sleeve Specification | MT-5 |
| Tailstock Sleeve Travel | 100 mm | |
| Tailstock Movement Mode | Saddle Driven, Hydraulic Extension | |
Other Specifications | Bed Structure Type | 30° Integral Slant Bed |
| Turret (Tool Position) | 125 Center Height 12 | |
| Turret Diameter (mm) | Φ450 | |
| Tool Holder Specification | 25*25 | |
| Boring Bar Specification | Φ40 | |
| Dimensions | Length × Width × Height (mm) | 2980×1910×1850 |
| Weight | 5500 kg | |
Standard Configuration of the Machine
| Standard Configuration | ||
| Accessory Name | Brand | |
| CNC System | FANUC 0I TF PLUS | |
| Servo Main Motor | Super Synchronous | |
| X, Z Axis Servo Motor | FANUC bis22/3000 | |
| Spindle | Dantron | |
| Spindle Bearing | KOYO | |
| Ball Screw Bearing | NACHI | |
| Linear Guide | HIWIN/Silver | X-axis: 45 roller |
| Z-axis: 45 roller | ||
| Ball Screw | HIWIN/Silver | X-axis: 4010 |
| Z-axis: 4010 | ||
| Hollow Rotary Cylinder | Kepu | |
| Hollow Hydraulic Chuck | QianDao | |
| Servo Turret | Taixin | |
| Automatic Lubrication System | Huru/Liangseng | |
| Cooling System | Jingjiang/ Lokai | |
| Lighting System | High-quality domestic | |
| Heat Exchanger | Lingji | |
| Electrical | Chint | |
