Qizhi Wind Tower Fabrication Three Roller Plate Prebending Rolling Machine

Qizhi Wind Tower Fabrication Three Roller Plate Prebending Rolling Machine

US$15,000.00-500,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
W11SNC
Condition
New
Certification
ISO 9001:2000, ISO 9001:2008
Automation
Automatic
Suitable for
Alloy, Carbon Steel
Type
Hydraulic Bending Machine
Applicable
Wind Tower Fabrication
Transport Package
Container
Trademark
QIZHI
Origin
China
HS Code
8462299000
Production Capacity
100sets Per Year

Product Description

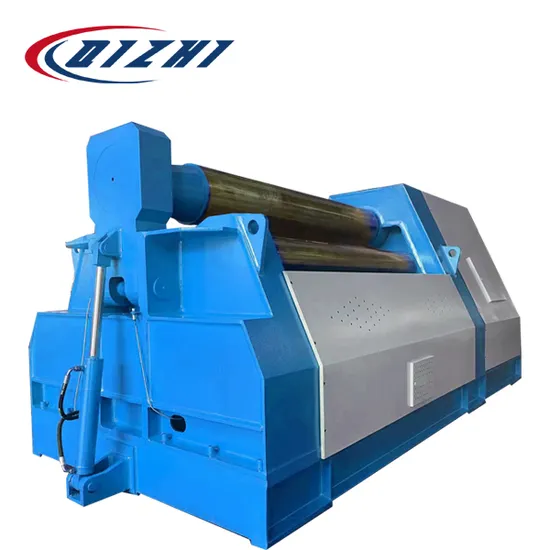

Hydraulic three-roller plate rolling machine
This machine is a fully automatic hydraulic three-roller plate rolling machine, which is used to roll the steel plate into a cylindrical shape or cone shape. High rolling accuracy, no need for auxiliary equipment, and low investment. Widely used in the petroleum, chemical, boiler, shipbuilding, hydropower, metal structure, and mechanical manufacturing industries. The upper roller can be vertically lifted and horizontally moved. When rolling, the motor and reducer drive the two lower rollers, and the upper roller can assist in driving. Due to the constant elevation of the lower roller, it is convenient for feeding and operation. PLC control. The hydraulic components used in the equipment are famous brand. The equipment has high reliability, and the tipping frame adopts hydraulic tipping. The equipment operates smoothly, with flexible control, no jamming, oil leakage, or abnormal noise.
Specifications
Model Max. rolling thickness Max. pre-rolling thickness Plate width Diameter of upper roller Main motor power
(mm) (mm) (mm) (mm) (kw)
W11SNC-12x2000 12 10 2000 250 5.5
W11SNC-16x2000 16 12 2000 255 7.5
W11SNC-16x2500 16 12 2500 300 15
W11SNC-18x3000 18 14 3000 350 15
W11SNC-20x3000 20 16 3000 375 18.5
W11SNC-25x2500 25 20 2500 380 22
W11SNC-30x2500 30 25 2500 410 30
W11SNC-30x3000 30 25 3000 450 37
W11SNC-32x3000 32 28 3000 480 37
W11SNC-35x2500 35 30 2500 460 37
W11SNC-35x3000 35 30 3000 510 45
W11SNC-40x2500 40 35 2500 500 45
W11SNC-40x3000 40 35 3000 540 55
W11SNC-40x4000 40 32 4000 610 55
W11SNC-45x3000 45 40 3000 590 55
W11SNC-45x4000 45 40 4000 660 55
This machine can be customized based on user's requirements. Wind Tower Fabrication Machine
