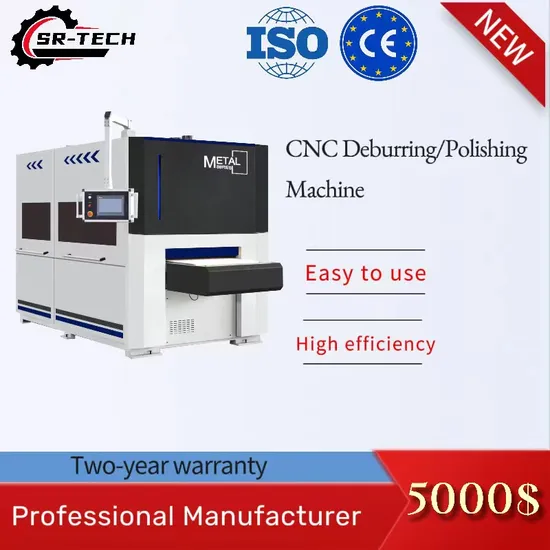

Full-Automation Flat Sheet Metal Polishing Machine Industrial

Full-Automation Flat Sheet Metal Polishing Machine Industrial

US$8,000.00-25,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SR-1000
Certification
ISO, CE
Condition
New
Voltage
380V
Application
Metal Sheet
Max Thickness
80mm
Max Width
800mm, 1000mm, 1300mm, 1500mm
Minimum Size of Part
50mm
Diameter of Brush Roll
300mm
No. of Brush Roll
4/6/8
Transport Package
Plywood Case
Trademark
SR-Tech
Origin
China
HS Code
8460902000
Production Capacity
1000sets Per Year

Product Description

Full-Automation Flat Sheet metal polishing machine industrial
Product Description&Overview
1.Machine body is made in high quality national standard iron plate, heavy, no shaking or moving in running, good stability.
2.Beam is made in high quality Mn-steel, no breaking, anti bending to ensure sanding rollers work stably.
3.Marble conveyor table in mirror treatment surface and high temperature aging treatment, no deforming, high precise and stable.
4.Heart parts bearing adopts Japanese NSK brand, long useful life.
5.Faults auto alarms. Power cut, brake and conveyor table auto descend to protect working pieces from destroyed.
6.Korean brand photoelectric sensing system to avoid sanding belt off track. Auto air blow, infrared sense, highly sensitive.
7.Contact drum rollers with steel or rubber coating can be in various shoe hardness depending on different sanding job.
Key parts introduction
One sander and four brushes
Sander paper for metal surface processing like Oxide layer or small burrs
Brushes do edge rounding work
Conveyor belt
High temperature and wear resistance, ensuring long-term use of the machine
Intelligent electric control cabinet
using internationally renowned brand electrical components, safer to use
Intelligent PLC control panel
Touch screen, multi languages support, easy to operate the machine even for new man
Technical parameters
Model SRD800 SRD1000 SRD1300 SRD1500
Working width 800MM 1000MM 1300MM 1500MM
Working thickness 0.5-80mm
Min working piece 50*50mm(no holes)
Feeding speed 1-6m/min(adjustable frequency)
Possibility of rounding R0.5-1.5mm
Voltage AC380V/50/60HZ
Consumable parts Sander belt and brushes

Working samples
Packaging & Shipping
Standard plywood case package, according the machine size, we will recomend you ship by LCL or FCL.
Company Profile
Jinan SR-Tech Machinery Co., Ltd. was established in 2018, in the past years, our company is mainly committed to the R&D and manufacturing of CNC machinery, fiber laser cutting, welding, cleaning machines, polishing machines and all kinds of metal processing devices. The company has first-class foreign trade salesmen, mechanical design engineers and after-sales service engineers in the same industry to make sure provide customers with better services. The company's SR series products have passed ISO, CE, FDA and other international certifications. Exported to more than 100 countries in Europe, America, Middle East, South Asia, Africa, etc., and have established agency-level sales relationships with many countries, and have won unanimous praise from many foreign customers.
After Sales Service
Pre-sales service
Timely reply: products, price, technology, industry solutions & other aspects
Free sample service: any testing work can be satisfied here;
Service in sale
Timely updates: once the order confirmed, we will update you the machine processing every 7 days by videos or photos.
Quality and package gurantee: our team will test seriously your machine before package for more than 72 hours to make sure the machine in good condition. Multi package way to ensure you will receive a well complete machine.
After-sale service
1:free user manual and videos will be sent once the machine left our factory.
2:Customer Service :7*18H fast response from engineer team.
3: we will provide 2 years warranty for the whole machine, any parts damaged or needed, we will give a good solution or
reasonable price.
