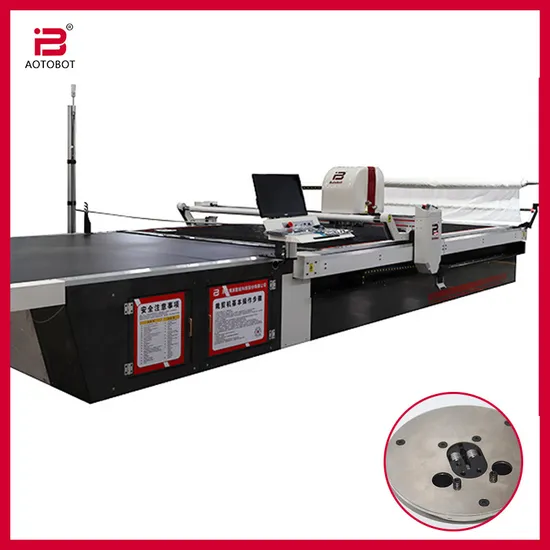

Cloth Cutting Machine Price China Supplier

Cloth Cutting Machine Price China Supplier

US$49,000.00-63,600.00 1 Piece (MOQ)

Basic Info.

Model NO.
M21
Power Source
Electric
Automatic Grade
Automatic
Warranty
1 year
Certification
CE, ISO
Cutting Width
1950
Cutting Length
3200
Maximum Cutting Height
75mm/110mm
Speed
Top Speed 45m / Min
Weight
5000kg
Transport Package
Wooden Case
Specification
7100*2600*1400mm
Trademark
aotobot
Origin
Zhejiang, China
HS Code
8451500000
Production Capacity
10000/Year

Product Description

Product Parameters
M21 Targeting industry Children's wear, Swimwear, Underwear
Machine type M21 Remarks
Feature Name AOTOBOT
Cutting width 1950
Cutting length 3200
Maximum Cutting height 75mm/110mm
Cutting specification Methods Straight knife reciprocating clipping
Knives Automatic sharpening, Knife width 8mm Thickness 2.0, 2.5mm
Speed Top speed 45m/min
Accuracy ± 1mm
Drills Solid 1.6, 2, 3mm Specification for hollow drilling 4-20mm. Selection
Machine specification Outside dimensions of machine length width and height 7100*2600*1400mm
Conveyor area length and width 2450*2100mm Optional custom length 3000/3500mm
Vacuum method separate frequency conversion adsorption
Operate the computer pc desktop computer
System specification language Chinese ,English
Power Three phase 380V , 22KW
Others Compressed air -20KP
Standard color White
Weight 5000KG
Option Selection, Knife cooling, Device movement

Product Description
Specification
Automatic covering film
Automatic positioning and drilling
Automatic cleaning bristle device
Automatic air float linkage device
Automatic indicator for grinding and blade changing
Separate vacuum pump and multi-section control
Automatic indicator for fault detection
The cutting machine can move transversely to meet multi-lines of cutting work areas.etc
Function Feature
Vacuum
The vacuum adsorb pressure is stronger , exhaust decompression and cooling Chamber design
New crankshaft
New crankshaft cutter cutting conveyor , lower noise , higher cutting strength ,less vulnerable parts
Double blade plate
Double blade plate design , more stable cutting accuracy , more accurate cutting of lightand thin impermeable fabrics
Company Profile
ZHEJIANGBOPAIINTELLIGENGTTECHNOLOGYCO.,LTD is high-tech company, which is specialized in intelligent cutting equipment design, research, and sales. With introducing foreign advanced technology and incorporating own experience in cutting field for many years, AOTOBOT has becomes the complete solution manufacture. It supplies CAD, spreading machine, smart cutting machine for soft material cutting industry. The company's products have been used from traditional textiles and clothing to the outdoors. car home furnishing. sofa seat, medical treatment, industrial textile industry and other fields. And successfully developed cutting technology for glass fiber, aerospace materials, bulletproof materials, synthetic materials. The company's products are all over Germany, the United States. The company's product has been sold to Germany, United states, Brazil, Vietnam, Cambodia, India, Kazakhstan and other countries. Also established branch in Vietnam. With rich experience and R&D ability, AOTOBOT could provide customized service and personalized product. also it supplies systematic cutting solution. Has invested enormous amount of energy on intelligent factory automation, AOTOBOT hugely promotes production efficiency and solve factory intelligence problems for customer factory Our aim is to create reliable products with professional technology and win the recognition of users with good after-sales service. Business philosophy: Integrity and cooperation, and win-win future. Corporate culture: unity, diligence, refinement, and innovation. Future development, we will open. more intelligent cutting custom era.
FAQ
Q1. Are you a factory or a trading company?
(ZHEJIANG BOPAI INTELLIGENT TECHNOLOGY CO., LTD.)is a national high-tech enterprise specializing in the design, research and development, production, sales and service of intelligent cutting equipment. We have more than 15 years of manufacturing experience, and our products
were exported to more than 80 countries and regions.
Q2. Where is the advantage of your machine ?
Our cutting system technology developed from Japan since 40 years ago, till now , we have sold to
More than 40 countries.
Aotobot brand cutting machine equipped with all the specifications . Bopai company appled the Patent of double knife plate which hugely improved the cutting speed by double time. Aotobot equipment supply YASAKAWA motor and drive system,
Adsorption device, bristle cleaning automatically,air cooling system, knife intelligence technology etc.
Q3. how about the installation and after sale service?
A: we have one strong and professional after sale service team,all the engineers with more than 10 years experiences. We can send technical to supply training and installation. Also we have distributors in all over the world, which also can take care of the after sale service daily.
Q4. How do you guarantee your quality?
A: With more than 40years of manufacturing experience, our products are
superior to the domestic standard and meet the Japan standard. All the main device are
Importing from Japan . machines run well without confusion on problem.
