Automatic Bridge Cutting Machine of 45 Angle Blade Tilting (XZQQ625A)

Automatic Bridge Cutting Machine of 45 Angle Blade Tilting (XZQQ625A)

US$30,500.00-32,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
XZQQ625A
Source Voltage
380V
Automation
Automatic
Cutting Ability
High Speed
Control
CNC
Certification
ISO, CE
Max.Cut Size(L*W)
3200*3200mm
Table Tilting
0-85°
Blade Tilting
0-45°
Table Rotation
0-360°
Spindle Motor
15kw
Transport Package
Plastic
Specification
6*5*2.6m
Trademark
AGA
Origin
China
HS Code
84641010
Production Capacity
50sets/Month

Product Description

Introduction of Bridge Saw:
This monobloc bridge saw machine is computer control and able to program for up to 99 repeat cuts automatically and also capable of manual operation.
The mechanical body is made of very strong cast iron for stability and long lifetime. It also provides covered oil bath for the movements of bridge rails.
Also all the functions are operated on the control panel that make it very user friendly.
Structure:
Automatic Bridge Saw for cutting granite marble and other stones.
The machine is a popular bridge saw that widely used in trimming and fabricating slab, tile, countertops, etc. It is able to cut 3200mm length and 2000mm width and 175mm thick (126"×78" ×7").
Feature:
The blade travels on the beam and it also provides power tilting 0 - 45 degree for mitre edge trim. The table turns 0 - 360 degree automatically and it also tilts 0 - 85 degree hydraulic for easy load and unload of the material.
Specification:
Blade size 400-625mm 16"-25"
Cut length 3200mm 126"
Cut width 2000mm 78"
Cut thick 170mm 7"
Blade tilt 0 - 45°
Table rotate 0 - 360°
Table tilt 0 - 85°
Spindle motor 15kW 20HP
Size (L×W×H) 6×3×2.6 m
Weight 7200 Kg

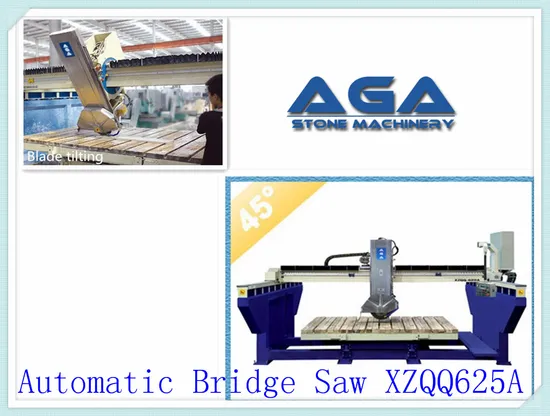

Pictures of Automatic Bridge Saw:
Guarantee & after sale service:
1) Warranty for one year. Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2) when receiving the 30% down payment, we will prepare machine for you, it will take 2-5 weeks, to get the shipping pictures for you.
3) 24-hour technical support Internet or by Telephone, free instructions and Problem solving.
FAQ:
1, How to pay to you?
T/T in advance We accept 30% deposit, 70% before shipment
2, How long is the delivery time?
For standard machines, it would be 2-5 weeks; For non-standard machines and customized machines according to client s specific requirements, it would be 10 days longer.
3, Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you.
4, How about the documents after shipment?
After shipment, we will send all original documents to you by DHL or Tele-Release, including Packing List, Commercial Invoice, B/L, and other certificates as required by clients.
5, What is the packing?
Water-proof plastic film package with foam protection in each corner
Solid Seaworthy Wood Box Package
Save space as much as possible for container loading.
AGA company:
AGA has been devoting to making machinery for processing and fabrication of mabrle granite and providing reliable service. The products include bridge saw, block cutter, polishing machine as well as equipments for other construction stones. The equipments have been successfully exported to world stone market in U.S.A, Canada, Europe, Mid East, Egypt, India, etc.
AGA understands that machienry creates values for customer and every machine comes from sophisticated technology and is manufactured by dedicated and experienced workers under strict inspection and full test. AGA insists on equipments of high quality and advanced technology to assist customers in their pursuit of a true competitive advantage.
We care about customers because by choosing us you are giving us a chance to make your machine more productive that also makes your products unrivaled in the competitive market and we are happy to do that professionally and passionately.
