Placer System Automated Concrete Distribution Arm Unit Multi-Functional Concrete Place Boom

Placer System Automated Concrete Distribution Arm Unit Multi-Functional Concrete Place Boom

US$42,000.00
1-2 Pieces
US$41,500.00
3-4 Pieces
US$40,000.00
5+ Pieces

Basic Info.

Model NO.
HGY15-21
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
240m²/h
Feeding Height
1370mm
Vibrating Amplitude
1.0mm
Certification
ISO9001: 2000
Condition
New
Color
White
Maximum Working Radius of Placing Boom
11.6m-20.5m
Vertical Working Range of Placing Boom
0°~90°
Slewing Brake
Normally Closed
Hydraulic Washing System Motor Power
4-22kw
Hydraulic System Working Pressure
20MPa-32MPa
Slewing Angle
360°
Transport Package
Container
Specification
10m*4m*2m
Trademark
ZEYU
Origin
China
Production Capacity
100/Year

Product Description

Product Details
About Our Hydraulic Concrete Placing Boom
Our Hydraulic Concrete Placing Boom include the Mobile Hydraulic Concrete Placing Boom and the Climbing Hydraulic Concrete Placing Boom, both designed to enhance efficiency in concrete construction.
The Mobile Hydraulic Concrete Placing Boom offers flexibility and is suitable for job sites that require quick relocation, while the Climbing Hydraulic Concrete Placing Boom is ideal for high-rise buildings or confined spaces, allowing for concrete distribution at higher elevations.

Both models utilize advanced hydraulic technology, ensuring easy operation and high stability. They significantly improve construction speed and quality guaranteeing uniformity and precision in concrete pouring.

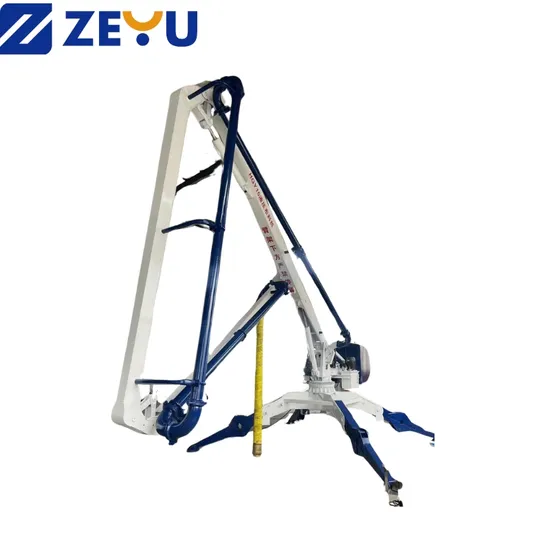

Mobile Hydraulic Concrete Placing Boom
The mobile design allows for quick relocation to different construction areas, adapting to various construction needs, especially suitable for sites that require frequent position adjustments. The equipment is easy to install and can be quickly put into operation, improving construction efficiency and saving time. It is suitable for concrete projects of different sizes and types, widely used in small and medium-sized projects. It is ideal for most conventional construction sites, including flat surfaces and those with a slight slope.
Climbing Hydraulic Concrete Placing Boom
The climbing design allows for concrete distribution in high-rise buildings or confined spaces, making it particularly suitable for high-altitude work. It can move within the building or between building structures, saving space on the construction site and adapting to complex environments. The placing boom can operate flexibly between different floors, eliminating the hassle of repeatedly relocating equipment and improving construction efficiency.
Technical Specifications
Technical Parameters of Mobile Hydraulic Concrete Placing Boom
Item HGY12 HGY13 HGY15 HGY17 HGY21/3 HGY21/4
Maximum Working Radius of Placing Boom 11.6m 13m 15m 16.5m 20.5m 20.5
Vertical Working Range of Placing Boom 0~87° 0°~90 0°~89° 0°~84° 0°~84° 0°~84°
Slewing Brake Normally Closed
Hydraulic Washing System Motor Power 4Kw 4kw 4kw 5.5kw 22/7.5kw 22kw
Hydraulic System Working Pressure 20Mpa 20mpa 20mpa 20mpa 32mpa 32mpa
Control Mode Wired / Wireless Wired / Wireless Wired / Wireless Analog / Switch Remote Control Analog Remote Control
Concrete Delivery Pipe Specifications φ125
Hose Length at Boom Tip 3m
Rotation Angle (°) 90/180/180 84/180/180 90/180/180 90/180/235/180
Length(mm) 6300/5306 5330/4330/3330 6000/5000/4000 6670/5720/4610 8362/6787/5854 6498/4600/4600/5312
Slewing Angle 360° 360° 360° 360° 360° 360°
Weight (Self-weight / Counterweight T) 1.9/2.9 2.7/4.3 3.23/5.43 2.7/4.9 4/6 7.7/9.9

Customer Photos and Reviews
Product Shipping and Delivery
Why Choose Us
ZEYU was established in 2007, initially focusing on the research and development, and production of concrete batching plants. Over the years, in response to the growing demand for personalized customer needs, ZEYU has gradually transformed into a provider of product solutions for the construction industry, earning the trust of an increasing number of clients.
Currently, ZEYU's business covers the following core areas: road solutions, bridge solutions, construction solutions, and construction waste recycling. We offer customized solutions based on your needs, covering everything from design and production to implementation, committed to
turning every idea of yours into reality.

FAQ
1. Is your company a direct factory with technical service capabilities and a quality control system? Yes, we are a direct factory with a strict quality management system. You are welcome to visit us and see our production process. 2. Can you provide customized solutions for specific project needs? Yes, we specialize in offering customized solutions tailored to meet the specific requirements of different projects and site conditions. 3. What types of projects are your placing booms suitable for? Our placing booms are ideal for high-rise buildings, bridges, tunnels, urban construction, and other large-scale infrastructure projects. 4. How complex is the transportation and installation process? The transportation and installation process is straightforward. We can also send engineers on-site to provide assistance and ensure a smooth setup. 5. What is the lifespan and maintenance cycle of your equipment? Our equipment is made from high-quality materials with precise manufacturing, ensuring long-term reliability. We also provide detailed maintenance schedules to help extend the lifespan of the equipment. 6. Do you provide training for operating the placing booms? Yes, we can arrange for engineers to provide on-site training for your team to ensure proper operation and maintenance of the equipment. 7. Can the placing booms be remotely monitored and controlled? Yes, our hydraulic concrete placing booms are equipped with intelligent monitoring systems that enable remote monitoring and control to ensure efficiency during operation. 8. Do you support additional custom features? Yes, we can customize features and configurations based on your specific project needs to ensure the equipment aligns perfectly with your requirements. 9. How does your after-sales service work? We offer comprehensive after-sales support, including quick responses to technical inquiries, on-site assistance, spare parts supply, and periodic maintenance services. 10. What is the delivery time for the placing booms? Typically, the delivery time is 20 days. However, we can adjust the schedule to meet your project timeline and urgency. 11. What is the working range of your placing booms? Our placing booms have a wide working range, with different models designed for various project scales and site conditions. Please consult our product catalog for specific details. 12. What is the control mode for operating the placing booms? Our equipment supports both wired and wireless control systems, providing flexible and convenient operation on-site. 13. Is it possible to integrate your placing booms with other construction equipment? Yes, our placing booms are designed to integrate seamlessly with batching plants, pumps, and other construction machinery for efficient workflows.
