Youngstar Dpp80 Small Mini Automatic Alu-PVC Butter Cream Jam Paste Sauce Blister Packing Machine Factory Hot Sale

Product Description

Product Description

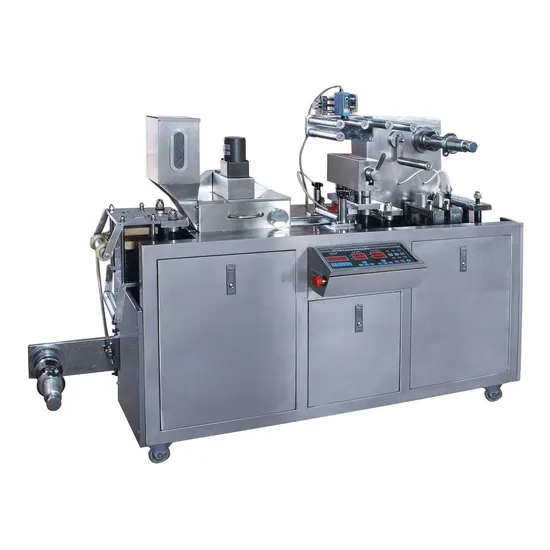

The machine is of flat-plate structure, with pressing, molding, meshes heat-sealing, adjustable travel range, for small size of body and ease of operation. It is applied to Al-Al, Al-PVC, Al-plastic packaging for capsule, table, candy, healthcare, small hardware etc. It is widely used in small pharmacy factory, preparation-room of hospital institute laboratory, mini-motor test workshop. The machine reaches advanced level in China.
1.Usage
It is suitable for capsule, tablet, honey pill, candy, liquid (ointment), paste as well as irregular shape Al-al Al-plastic and paper-plastic composite sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.
2.Feature
With manipulator towing and adjustable travel range, it can be suited for blister packing of various sizes.Flat plate structure can pack special shape products, such as: elliptic shape, square shape, triangle shape, liquid, paste and syringe etc.The whole procedure of feeding, forming, heat-sealing, impressing, batch number printing and cutting is accomplished automatically and continuously. The machine is small in size, with frequency inverter and ease of operation.
Product Parameters

DPP80 DPP150 DPP260 DPP420
Detailed Photos

Model	DPP80	DPP150	DPP250-260S	DPP260S-2	DPP260D	DPP420S	DPP420S-2 (3D)
Cutting Frequency	10-40 times/min	10-50 times/min	10-50 times/min	10-50 times/min	10-50 times/min	10-35 times/min	10-35 times/min
Max. Forming Area	80*100mm	130*130mm	240*150mm	240*180mm	240*180mm	390*150mm	390*150mm
Max Forming Depth	26mm or customized			45mm	26mm or customized
Travel Range	40-80mm	60-130mm	40-150mm	20-180mm	20-180mm	40-160mm	40-160mm
Air Pressure	0.4-0.6Mpa		0.4-0.7Mpa
Total Power	380V/220V 50HZ 3.5kw	380V/220V 50HZ 3.6kw	380V/220V 50HZ 6.4kw			380V/220V 50HZ 9.7-22kw
PVC Width	0.25-0.5*100 mm	0.25-0.5*150 mm	0.25-0.5*260 mm			0.25-0.5*420 mm
ALU FOIL Width	0.02-0.035*100mm	0.02-0.035*150mm	0.02-0.035*260mm			0.02-0.035*420mm
Mould Cooling	Tap water or recycling water
Overall Dimension(L*W*H)	1400*460*950mm	2350*560*1410mm	3000*730*1600mm	3500*730*1600mm	3900*730*1600mm	4000*950*1600mm	5700*950*2000mm
Machine Weight	450kg	750kg	1300kg	1400kg	1600kg	1800kg	2000kg

Samples Display

Q: Where is your factory?
A: Our factory is located in Ruian city, Zhejiang province, China. We warmly welcome you to visit us.
Q: How can I know your machine is designed for my product?
A: If you don't mind, you can send us samples. Or, let us know your detailed requirements by email.
Q: How can I trust you for the first-time business?
A: We can send you our business license and certificates. You can choose ****** Trade Assurance Service for transaction to protect your payment and assure our service for you.
Q: How about after-sale service and warranty period?
A: We offer 1 year warranty. Technical support is 24/7. Our professional technician can visit your factory.
Q: How to contact you?
A: Please leave message and click "send" to send us inquiries.
