Portable high precision and stability smart PID control heat thermostatic liquid bath

Portable high precision and stability smart PID control heat thermostatic liquid bath

Product Details

Product Details

Product Description

Product Description
Product Overview

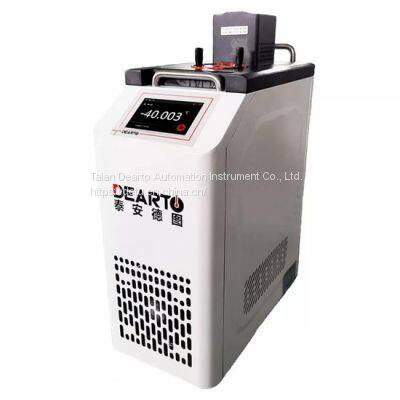

DTS-BG ultra-portable intelligent thermostatic oil bath
DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
1.Small and portable, intelligent touch screen control, display temperature difference, fluctuation data;
2.Automatic segment temperature control, rapid temperature rise "zero" overshoot; micro-circulation technology, uniformity of temperature field.
3.Multi-point temperature calibration.
4.Temperature curve display, temperature data is automatically saved to U disk.
5.Equipped with overheating protection, safe and reliable temperature limiting function, and RS-232 communication interface can be connected to the host computer.
Operation interface
Stability running interface
Curve display interface
Setting interface
PRODUCT SPECIFICATIONS
Product name
Intelligent micro heated thermostatic bath
Model
GDTS-180BG
GDTS-300BG
Temperature range
60℃~180℃
60℃~300℃
Control method
Touch screen
Display resolution
0.001℃
Temperature fluctuation(10min)
≤±0.02℃(60℃) ≤±0.02℃(100℃)≤±0.03℃(200℃)≤±0.035℃(300℃)
Temperature uniformity
≤0.01℃ (60℃) ≤0.01℃ (100℃) ≤0.02℃ (200℃)≤0.02℃ (300℃)
Heating rate
6.5℃~11.5℃/min
Cooling rate
1.5℃~5℃/min(Natural cooling)
Work area size
Φ80×280 mm
Dimensions(mm)
430(L)×225(W)×365(H)
Working medium
Silicone oil
Remarks
Flange size can be customized according to customer needs
