Large Diameter Thick Corrugated HDPE Plastic Pipe Recycling Crushing Shredder

Large Diameter Thick Corrugated HDPE Plastic Pipe Recycling Crushing Shredder

US$12,000.00-25,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
DGR
Material Processed
Plastics, Rubber, Wood, Biomass, Paper
Plastic Type
PE
Screw
Electrical Hydraulic Control
Automation
Automation
Computerized
Computerized
Certification
ISO9001:2008, CE, BV
Motor
Weg
Electronic Components
Kloeckner Moeller
Safety Switch
Schmersal
Gearbox
Sew
PLC Cabinet
Rittal
Bearings
Heavy Duty Bearings
Knives
Knives Are Externally Adjustable
Rotor
Wide Choice of Rotor Variations
Mechanical Material
Q355
Knife Materials
D2/ SKD11
Rotor Diameter
800-1430mm
Stator Knives
3-5 Rows
Screen Size
40-100mm
Transport Package
Stretch Film/ Wood Pallet
Specification
DGR800-1800
Trademark
DGM
Origin
Wuxi, China
HS Code
84778000
Production Capacity
2000sets Per Year

Product Description

Large Diameter Thick Corrugated HDPE Plastic Pipe Recycling Crushing Shredder

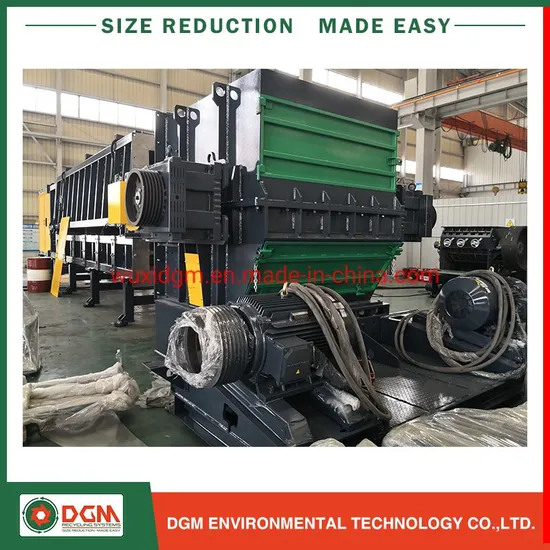

Descriptions The DGR Large Diameter Pipe Shredder is specially designed for handling large diameter pipes (up to 1200mm diameter) without any need for pre-cutting. The DGR rotor diameters range from 800mm to 1500mm and the standard hopper can accept lengths up to 6m. The concave ground, aggressive 4-way rotating knives are mounted in the grooves of the profiled rotor with special knife holders. The DGR shredder range can also be used to shred bundles of small diameter pipes and profiles, lumps, stacked wheelie bins, buckets & pallets, etc.
The hydraulically operated ram feeds the material horizontally in the rotor's cutting chamber by load-related controls. The hydraulic system is equipped with high-pressure valves and volumetric flow controls which can be set according to the requirements of the input material.
Extremely robust pedestal bearing housings are mounted outside the machine and separate to the cutting chamber to prevent dust and dirt penetrating into the oversized bearings. This ensures a long service life and minimum service and maintenance.
Power is transmitted from the motor by a drive belt via an oversized gearbox which is located on the shaft end on one end of the rotor.
A safety switch prevents machine startup when the front panel is open and the machine features emergency stop buttons on the machine body and control panel.
Specifications
ITEM UNIT DGR800 DGR1000 DGR1500
Cutting Chamber mm 3870*700 6700*700 6700*1300
Rotor Diameter mm 800 980 1430
Rotor Speed rpm 40 36 23
Main Motor Power kw 2*37 2*45 2*55
Rotor Knives pcs 60 108 204
Stator Knives row 3 4 5
Hydraulic Ram Power kw 11 15 15
Machine Weight kg 11000 20000 25000
Effective Working Area mm 3500*630 6000*800 6000*1000
Dimensions A mm 7700 11900 12200
B mm 1420 1540 1800
C mm 5060 8100 8100
D mm 3860 6700 6700
E mm 1730 1840 2320
F mm 2550 2970 3360
G mm 2570 2660 3150
H mm 975 1070 1070
I mm 590 590 590

Layout
Features Large diameter flat rotor Specially designed feeding trough Machined pocket knife holders Optional hard facing Concave ground square knives Robust ram construction Universal couplings Low speed, high torque geared drive Powerful horizontal hydraulic ram Bolt in drive shafts Multiple rotor designs Two speed hydraulic system Oil cooling on ram and gearbox Amp meter control
Options Wedge for thin walled products Gearbox with shrink disc Rotor cooling Touch screen PLC Increased motor drive Hydraulic drive Bespoke colour scheme Turbo hydraulics Housing wear plates Metal detector Horizontal discharge with overband magnet
Applications PLASTICS RUBBER WOOD BIOMASS PAPER ALTERNATIVE FUELS (RDF/SRF) DOMESTIC & COMMERCIAL WASTE
Factory
Since its foundation DGM Recycling Systems have been at the forefront of innovation and technology in the development of cost effective and reliable recycling solutions. As a wholly owned subsidiary of Miracle Automation Engineering Group, a pioneer in automation systems for the automotive and material handling industries, DGM continues to strive for excellence in the field of size reduction and recycling.
Suppliers
Certificates
All of our shredders and granulators have been approved CE certification.
Packaging & Loading
1. Several layers of plastic wrapping film and cardboard to protect plastic recycling machine from dust and moisture.
2. Plastic packing strap belt to fasten wrapping film and machines, also to fix machines in containers.
3. Wooden case is used as the outside package and spare parts when choosing by LCL, air or international express.
4. Excellent logistic team to guarantee the shredder and granulators machines to be safely shipped to customers' appointed locations.
5. If you have any other request for the packaging or loading, we will try our best to meet your demands.
FAQ
Q1: Are you a trading company or a factory?
DGM is a factory with 15 years of experience in Machinery Manufacturing, and 25 years of experience in German technology.
Q2: Will you provide pre-sale services?
DGM consists of experienced specialists, we will offer a suitable solution according to client's requirements in time.
Q3: Is your after-sales service excellent?
At DGM we have a highly trained team of service personnel to handle all manner of customer service inquiries. Whether it is replacement parts, technical assistance, or just general operation advice we offer our customers genuine 24/7 support and after sale service. We have an international network which ensures wherever you are in the world you receive localized high level support.
Our technical team has decades of experience in the field of size reduction and recycling and we are on hand to offer assistance in installation, commissioning, staff training and general technical assistance.
Q4: Where is your factory?
Address: No.99 Qianluo Road, Huishan District, Wuxi City, Jiangsu, China.
Q5: What is your contact information?
Fax: +86 510 8357 0210
Telephone: +86 510 8357 2002
Mobile +86 18762812155
Q6: Could we visit your factory and test the machine?
We warmly welcome you to visit our factory anytime, and we are very glad to test our machine with your raw material.
