Basic Info.
Application Area
Agricultural Chemicals, Chemical, Food, Pharmaceutical
Control System
Button Control
Cooling Method
Air Cooling
Heating Method
Electric Heating
Main Material
Stainless Steel
Safety Features
Emergency Stop Button
Speed Control
Variable Speed
Temperature Control
With Heating
Voltage
220V/380V/Customizable
Dimension(L*W*H)
Customizable
Machine Type
Conical Screw Mixer
Transport Package
Wooden Box Package
Production Capacity
1000set
Packaging & Delivery
Package Size
150.00cm * 150.00cm * 150.00cm
Package Gross Weight
200.000kg
Product Description
Product Description

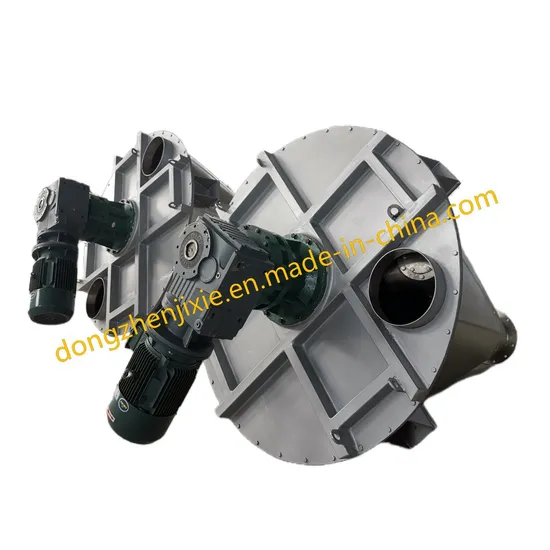

DZJX High Efficiency Vertical Screw Conical Blender Mixer This kind of chemical machinery has a wide adaptability to mixed materials, does not overheat heat-sensitive materials, does not press feed and grind granular materials, and does not produce chip segregation for materials mixed with different specific gravity and particle size.
1. Mixing effect The standard conical mixer has two mixing screws, one long and one short. In practical applications, single (one long screw) and three (two short and one long symmetrically arranged) screws can also be used according to the equipment specifications. 2. Cooling and heating Various types of jackets can be added outside the mixer barrel to cool or heat the material by injecting hot and cold media into the jacket; Cooling is generally pumped into industrial water, and heating can be carried out by introducing steam or heat transfer oil. 3. Mixing with liquid Insert a spray pipe at the intermediate shaft position of the mixer and connect it to the atomizing nozzle to achieve liquid mixing; By selecting specific materials, acid and alkaline liquid materials can be added for powder liquid mixing. 4. Customized pressure resistant cylinder cover The pressure resistant cylinder cover can be made into a head type, and the cylinder body can be thickened to withstand positive or negative pressure, while reducing residue for easy cleaning. This setting is commonly used when the mixer cylinder needs to with stand pressure. 5. Feeding method It can be manually fed, fed by vacuum feeding machines, and fed by conveying machinery. In specific processes, the mixer cylinder can be made into a negative pressure chamber, and a hose can be used to suck dry materials with good fluidity into the mixing chamber for mixing, which can avoid residue and pollution in the material feeding process. 6. Discharge method Standard equipment generally adopts a plum blossom shaped "dislocation valve", which is tightly attached to the bottom of the long spiral, effectively reducing mixing dead angles. The driving form is available in manual and pneumatic options; According to user needs, butterfly valves, ball valves, star dischargers, edge discharge, etc. can also be installed.
Single Screw Cone mixer Double Screw Cone Mixer
Detailed Photos Product Parameters
Single Screw Cone mixer |
Model | Full Volume(L) | Effective loading volume(L) | Loading Factor | Power(kw) | Max Diameter(mm) | Total Height(mm) |
DZS-100 | 100 | 40-60 | 0.4-0.6 | 1.5 | 708 | 1498 |
DZS-300 | 300 | 120-180 | 3 | 990 | 2095 |
DZS-500 | 500 | 200-300 | 4 | 1156 | 2338 |
DZS-1000 | 1000 | 400-600 | 7.5 | 1600 | 2775 |
DZS-1500 | 1500 | 600-900 | 11 | 1780 | 3146 |
DZS-2000 | 2000 | 800-1200 | 11 | 1948 | 3424 |
DZS-3000 | 3000 | 1200-1800 | 15 | 2175 | 3758 |
DZS-4000 | 4000 | 1600-2400 | 185 | 2435 | 4446 |
Double Screw Cone Mixer |
Model | Full Volume(L) | Effective loading Volume(L) | rotate speed((r.p.m) | Weight(kg) | Power(kw) |
DZDS-300 | 300 | 120-180 | 2/68 | 400 | 3 |
DZDS-500 | 500 | 200-300 | 2/68 | 550 | 3 |
DZDS-1000 | 1000 | 400-600 | 2/57 | 1200 | 4 |
DZDS-2000 | 2000 | 800-1200 | 2/57 | 1500 | 5.5 |
DZDS-3000 | 3000 | 1200-1800 | 2/57 | 2300 | 7.5 |
DZDS-4000 | 4000 | 1600-2400 | 2/57 | 2800 | 11 |
DZDS-6000 | 6000 | 2400-3600 | 2/57 | 3600 | 15 |
DZDS-10000 | 10000 | 4000-6000 | 2/57 | 4200 | 18.5 |
DZDS-15000 | 15000 | 6000-9000 | 2/57 | 4900 | 22 |
DZDS-20000 | 20000 | 8000-12000 | 2/57 | 5800 | 37 |
DZDS-30000 | 30000 | 12000-18000 | 2/57 | 7000 | 45 |
Range of application
Spiral cone mixer is a new type of high-efficiency and high-precision mixing equipment widely used in pharmaceuticals, chemicals, ceramic powders, pesticides, dyes, food, colorants, glazes, feed, building materials, rare earths, etc. Especially suitable for mixing materials with significant differences in specific gravity. Company Profile
* Xinxiang Dongzhen Machinery Co., LTD *
1.With 36 years of professional production of rubber, food, medicine, chemical ,pharmaceutical and mineral equipment experience, and has a good cooperative relationship with the world 500.
2.All raw materials purchased with domestic and foreign well-known manufacturers.
3.We have designed production lines for many companies, such as laundry detergent production line, clove production line, blue bubble production line, flour production line, yeast production line, etc.
4.1 Years Warranty, 14 Days Delivery, Factory Price.
5.14800m2 factory, Own R&D Team.
6.Free design service, free professional solutions.
7.Passed ISO9001, CE, SGS, Intetek certificates.
Certifications
FAQ Q:How do you guarantee the quality of the machine?A: We have export experience for 5 years and customers who bought our machine have tested the machine before it was shipped .Q:Can the voltage of the machine be adapted ?A:We can adapt the machine to your needs to match your local voltage.Q:Can you ship the machine to my address?A:Yes, we support shipping and air transportation, as well as door-to-door service.Q:Can I go to China and visit your factory?A:Sure, we are in Henan, China, welcome to our factory.Q:Do you have operation manual with the machine?A:Yes, of course, it is in English version.Q:Can you offer us the necessary paper to do the customs clearance?A:Yes, we will send you the commercial invoice, packing list, bill of lading and we'll also meet your other request.Q:How about the packing?A:Outside Package: Wooden packing case as export standard ; Inside Package: Stretch filmQ: What is warranty period of machine?A:One year upon you receive the goods.
