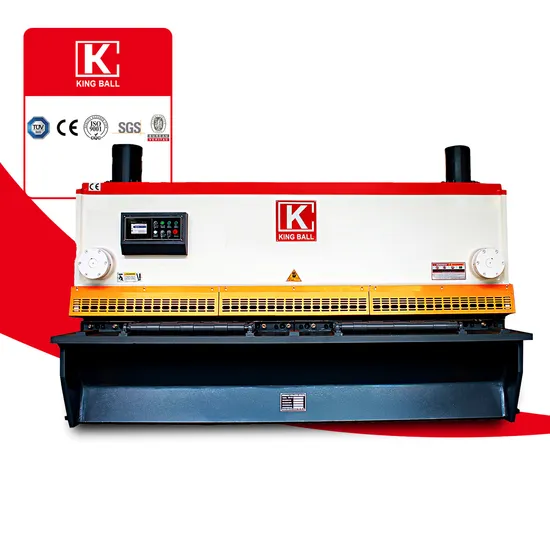

QC12K-6X2500 CNC Pneumatic Material Support E200s Controller Cutting Swing Beam Hydraulic Shearing Machine Servo Motor

QC12K-6X2500 CNC Pneumatic Material Support E200s Controller Cutting Swing Beam Hydraulic Shearing Machine Servo Motor

US$9,000.00 1 Set (MOQ)

Basic Info.

Model NO.
QC12K-6x2500
Certification
CE, ISO 9001:2000
Condition
New
Warranty
2 Years
Product Name
QC12K Shearing Machine
CNC Controller
E200s
Usage
Cutting Sheet Metal
Cutting Thickness
10m
Cutting Length
2500mm
Backgauge Range
20-600mm
Cutting Material
Metal .Alloy Metal .Aluminum
Color
All Colors
Package
Plastic Cover/Wooden Case
Transport Package
Nude
Specification
3150X1700X1650mm
Trademark
KingBall
Origin
Jiangsu, China
HS Code
8462399000
Production Capacity
100sets/Month

Packaging & Delivery

Package Size
400.00cm * 330.00cm * 220.00cm
Package Gross Weight
4200.000kg

Product Description

Products Description
Main functions and features 1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2.Indicator-based adjustment of gap of blade is convenient and fast.
3. The machine is equipped with lighting alignment device, and uses stepless control for the stroke of up tool carrier.
4.The machine uses protection fence for safe operation.
5.Digital display device for size of back gauge and shearing times available.
Hydraulic Swing Beam Shearing Machine QC12Y-10X2500 QC12Y-10X3200 QC12Y-10X4000 QC12Y-10X6000
Cutting Thickness (mm) 10 10 10 10
Cutting Width (mm) 2500 3200 4000 6000
Throat Depth (mm) 100 100 100 100
Cutting Angle (o) 2 2 2 2
Backgauge Range (mm) 20-600 20-600 20-600 20-800
Stroke Number (times/min) ≥10 ≥8 ≥8 ≥6
Main Motor (kw) 15 15 15 18.5
Weight (kg) 7500 8500 9800 24000
Overall Dimensions
(LxWxH in mm)
3180X1800X1700 3880X1830X1800 4850X1850X1900 6500 X2100X2300
Pneumatic Sheet Support System Monobloc Panel Type support system:
Avoids hanging down the wide and thin sheets via pneumatic table support and provides more precise cuts. Anti-twist System Anti-twist system contrasts the piece warping by pushing it against the upper blade.
The unique Anti-Twist system of kingball guillotine shears consists of a series of hydraulic cylinders placed below the lower
blade, which support the sheet metal against the upper blade.
The cylinders exert a counter-pressure in proportion to the thickness, thus compensating the twist effect of the sheet. Front Feeding Table Feeding the metal sheet automatically controlled by PLC ,the precision of the feeder is more accurate
The clamp adopts pneumatic clamp, which has reliable supporting power, wide processing range and convenient operation.
Our Service Pre-sales services: 1. inquiry and consulting support 2. sample testing support 3. visit our factory After-sales services: 1. 2 years warranty period 2. training how to install and use the brake press machine 3. engineers available to service machinery
overseas Contact Ways Ms.Linda Zhang Customer Manager E-mal:linda@jinqiu.cc
FAQ
1.Can you supply the relevant documentation? Yes, we can provide most documentation including Certificates of Analysis/Conformance; Insurance; Origin, and other export documents where required.
2.What is the average lead time?
For samples, the lead time is about 7 days. For mass production, the lead time is 20-30 days after receiving the deposit payment.
The lead times become effective when (1) we have received your deposit, and (2) we have your final approval for your products. If our lead times do not work with your deadline, please go over your requirements with your sale. In all cases we will try to
accommodate your needs. In most cases we are able to do so.
3.What kinds of payment methods do you accept?
You can make the payment to our bank account, Western Union or PayPal:30% deposit in advance, 70% balance against the copy of B/L.Or irrevocable LC at sight.
4.What is the product warranty?
We warranty our materials and workmanship. Our commitment is to your satisfaction with our products. In warranty or not, it is the
culture of our company to address and resolve all customer issues to everyone's satisfaction.
5.Do you guarantee safe and secure delivery of products?
Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
6.How about the shipping fees?
The shipping cost depends on the way you choose to get the goods. Express is normally the most quickest but also most expensive way. By seafreight is the best solution for big amounts. Exactly freight rates we can only give you if we know the details of
amount, weight and way. Please contact us for further information.
