Full automatic sunflower seeds groundnut palm avocado peanut almond nuts olive cold oil making processing production machine coconut sesame hydraulic oil press

Full automatic sunflower seeds groundnut palm avocado peanut almond nuts olive cold oil making processing production machine coconut sesame hydraulic oil press

US$2,500.00-2,999.00 1 Set (MOQ)

Basic Info.

Model NO.
6Y-180
Type
Hydraulic Pressure Mechanism for Oil Press
Application
Edible Oil
Voltage
380V
Appearance
Vertical
Press Materials
Olive, Sesame, Walnut, Peanut, Rape Seeds etc
Press Series
Second
Condition
New
Customized
Customized
Max Pressure
60MPa
English Manual
Yes
CE Certificate
Yes
Capacity
15-150KG/H
Power
1kw
Colour
silver
Nominal pressure
1600KN
Weight
530kg
Size
800X60X1100mm
Raw materials
Hard nut seeds
Name
oil press machine
Transport Package
Wooden Fumigated Box
Specification
CE, ISO
Trademark
VIC
Origin
China
HS Code
84792000
Production Capacity
5000PCS/Year

Packaging & Delivery

Package Size
85.00cm * 65.00cm * 120.00cm
Package Gross Weight
550.000kg

Product Description

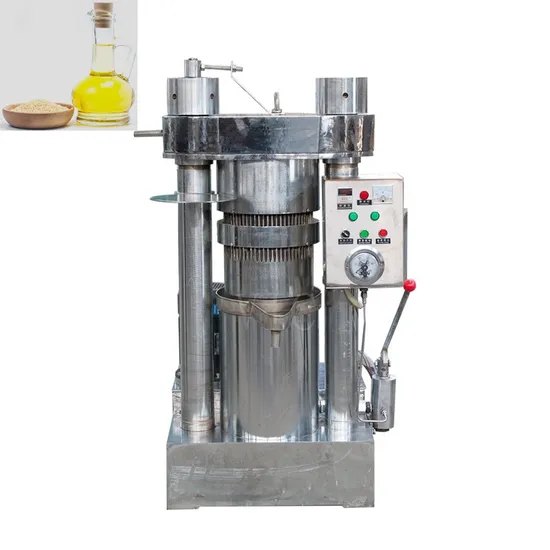

Automatic palm avocado coconut peanut sesame cold hydraulic oil press
Product Description
1. Application:
The automatic mini coconut sesame hydraulic oil press machine is improved based on introduced Korean technology and won high praise from users. Coconut sesame hydraulic oil press machine can be applied for oilseeds such as sesames, walnuts and pine nuts, etc.
With lower power consumption and noise, it can be fed with 15-30kg of material every time and completely squeeze in 6-8min. The final oil is good edible oil.
Advantage
1). Maximum pressing pressure up to 60Mpa
2). Advanced and reliable hydraulic systems power the equipment
3). The maximum capacity can reach 150KH/H
4). Both cold press and hot press are acceptable
5). Continuous intelligent automatic control system is more safe
6). Low-power motors save energy
7). Filtration system make healthier oil .
2. Technical data:
Model 6Y-180 6Y-230 6Y-260 6Y-320
Process capacity 15-30kg/h 40-60kg/h 60-80kg/h 120-130kg/h
Power 1.5kw(380V/50Hz) 1. 5kw(380V/50Hz) 1.5kw(380V/50Hz) 4.0kw(380V/50Hz)
Heating collar power 1kw 1kw 1kw 3kw
Heating collar
temperature control
70-100 degree 70-100 degree 70-100 degree 70-100 degree
Nominal pressure 1600KN 2200KN 2600KN 3000KN
Max pressure in working 60MPa 60MPa 60MPa 60MPa
Overall size 800X600X1100mm 900X750X1400mm 900X850X1500mm 900X1000x1650mm
Weight 530kg 880kg 1000kg 1600kg


3. Coconut sesame hydraulic oil press machine pictures and more details
Contral box with double scale pressure
Hydraulic systerm with excess high pressure valves to 60 mpa
Spare parts
Package
Factory corner
Sesame oil press machine working
Coconut oil press machine working
Full automatic sesame oil press machine with conveyor and touch screen
