Flat Bottom Silo 500t 1000t 2000t 3000t 5000t Silos with Large Capacity Maize Grain Storage

Flat Bottom Silo 500t 1000t 2000t 3000t 5000t Silos with Large Capacity Maize Grain Storage

US$15,000.00-88,888.00 1 Piece (MOQ)

Basic Info.

Model NO.
500t 1000t 2000t 3000t 5000t
Installation Method
Ground Installation
Feeding Method
Top Loading
Feature
Ventilation, Shockproof, Pest Control, Moistureproof, Mobile, Heat Insulation, Fixed, Fireproof, Anti-corrosion
Application
Feed Processing Plant
Silo Diameter
3600 mm to 32102 mm
Galvanized Layer Thickness
275g/Sqm /350g/400g/450g/600g/Sqm
Certification
Is09001:2008 CE
Warranty of Core Components
1 Year
Handling Equipments
Elevator Conveyor
Dimension
Costomized
Transport Package
Standard Export Packingstandard Export Packing
Specification
500t 1000t 2000t 3000t 5000t
Trademark
Xingu
Origin
China
HS Code
8479899200
Production Capacity
1000 Pieces/Year

Product Description

Product Description

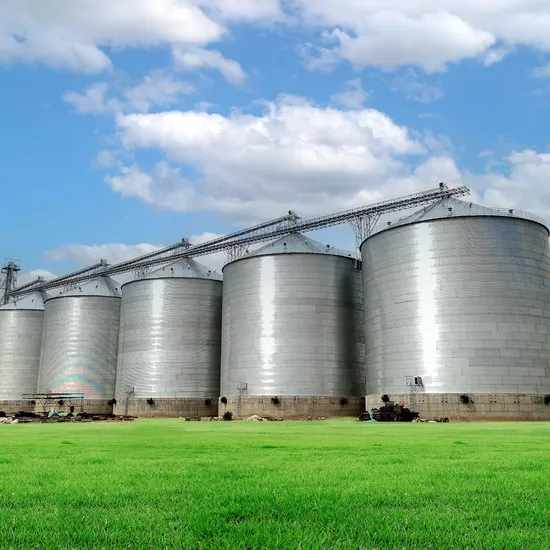

Grain steel silos, also known as rice storage silos or steel grain storage silos, used in farms, rice mills, flour mills, soybean oil factories, animal feed factories, breweries, etc., corn steel silos can be used to store grain (such as corn, bulk wheat, rice, rice, sorghum, soybeans, etc.), animal feed, grain seeds, plastic particles, wood particles, etc.
Types of silos
Structure and application of silos
The characteristics of assembled steel silo
Flat silo features
1. Large diameter, large warehouse capacity; Light weight, low foundation requirements, simple foundation construction.2. Fully mechanized entry and exit warehouse and intelligent management can be realized according to requirements.3. Equipped with sound ventilation, temperature measurement, humidity measurement and other safe grain storage systems.4. High degree of standardization: according to domestic high-quality materials or imported materials, standardized and serialized production is used to make standard parts and components with strong versatility.5. Simple and quick installation: all parts of the prefabricated galvanized steel warehouse are made in the factory and are connected by bolts on site; Construction is mobile and flexible. 6. Easy maintenance: This warehouse type is easy to disassemble and can be moved; Local plate damage can be replaced, thus extending the service life.
Cone bottom silo features
1. light weight , low requirements for the foundation , low cost .
2. easy assembly , short construction period .
3. according to user selection can achieve temperature measurement , ventilation , ventilation and other functions .
4. easy to realize mechanization and modern
5. simple demolition , convenient maintenance and reliable use .
6. long service life , generally up to 30 years or so .
Manufacturing capacity
Product specifications and parameters:
With many years of design and manufacturing experience, grain storage silos can be customized according to customer requirements.
Only a partial model of Xingu flat silo is listed below.
Silo type Silo capacity (m³) Cylinder height Peak height Wheat Capacity(T)
TCK11914 1859 15.735 18.515 1394
TCK12815 2310 16.855 19.845 1733
TCK13715 2660 16.855 20.065 1995
TCK14615 3040 16.855 20.275 2280
TCK15517 3875 19.095 22.725 2906
TCK16517 4360 19.095 22.945 3270
TCK17418 5140 20.215 24.275 3855
TCK18319 6100 21.335 26.625 4575
TCK19219 6749 21.335 26.885 5062
TCK20121 8152 23.575 29.125 6114
TCK21022 9241 24695 30.785 6931
TCK22021 9614 23.575 28.705 7211
TCK22921 10635 23.575 30.195 7976
TCK23822 12043 24.695 31.575 9032
TCK24722 13029 24.695 31.845 9772
TCK25623 14639 25.815 33.225 10979
TCK26523 15751 25.815 33.485 11813
TCK27523 16905 25.815 33.745 12679
TCK28423 18107 25.815 34.015 13580
TCK29323 19356 25.815 34.285 14517
TCK30223 20648 25.815 34.545 15486
TCK31122 21133 24.695 33.685 15850
TCK32024 24278 26.935 36.195 18209

remark : The above silo model is based on wheat density of 0.75T/m³.
our advantages How do we assure the silo solidity?1- Roof Top: The roof is designed to stand up even the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.2- Body Steel Plate: A commercial 275g/m2 double galvanized steel coating increases life and durability.450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that has the ability to overcome extreme power, pressure.3- Stiffeners: Xingu SILO's high tension stiffener(can be located inside or outside silo) profiles make bins stronger allowing silos to stand well even under an extreme . Base stiffener bootsare coated so they won't rust over time.4- Wind Ring: For tall silos or that need to resist heavy wind. Wind ring and brackets reduce bolt holes in stiffeners; swaged technology ensure silo power load capacity5- High strength bolts and screws: XinguSILO's high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grain bin stands the test of time.6- Manhole: double layer security locking manhole system.7- Wide Flange H Beam Support Structure:Wide flange H-Beam support structure has the strength and durability to support the heavy hopper silo loads long time, and with consideration of wind and seismic requirements.XinguSILO Is Expert for the Whole System Used for Various Industries.Starting from the initial project analysis, to develop your custom grain silo system plan and to the final turnkey completion of the project, XinguSILO's engineers will stand together with you to get the best matching profitable solution.Our grain silo size starts from 200tons to 15000ton, with compatible auxiliary systems of grain receipt, cleaning, drying, lifting, conveyor, grain condition monitoring system, unloading, etc.XinguSILO has rich experience in building silos, the farm used to silo, seaport silo group, river transportation silo, flour mill silo, edible oil production factory, pellet line, paddy rice processing factory, starch line, seeds storage, etc. The matching auxiliary systems determine the smooth running, efficiency, energy-saving, and stability of the whole silo system. The scientific configuration and quality updating of auxiliary systems has always been our forever research, modification, and improving area from our continuous projects practice.The principles are meeting capacity as required, high efficiency, no waste, energy-saving, and for sure stability and reliability.
Packing and shipping
The various parts of the silo and silo accessories are strictly classified and packaged in the factory to ensure that the goods are not squeezed and damaged during transportation. Some packaging items are also made according to customer requirements.
Please check out some packaging and shipping photos below for reference.
Exhibitions and customer visits
Enterprise qualification, patent and honor certificate
FAQ
1.Will you send engineers to install the plant?
Yes, but at an extra cost payable by the customer. Or you can get local contractors to do the commissioning and we send one supervising engineer.
2. Do you offer a warranty on your products?
Yes, for the products we can provide 1 years warranty time from the date of delivery.
3. What are your delivery times?
For regular products, it will take 30 days after receiving your advance payment. The exact delivery time depends on the goods and quantity you order.
3.How do you maintain a long-term good relationship with our business?
We will provide the most competitive price and quality to ensure our benefits to you;
No matter where you come from, we are all friends and family. We will do our best to help you.
