Universal Teeth Disc Pulverizer Machine with Simple Deduster Commercial Corn Nut Grinder Machine

Product Description

Product Description The stainless steel dust removal crusher uses 304 stainless steel and is suitable for crushing dry materials in industries such as licorice, chemical, and food.
This machine utilizes the relative motion of movable and fixed toothed discs, as well as the mutual impact between materials, to crush and crush the materials in the crushing chamber. This machine is equipped with a sieve, with a mesh size of 10-120 that can be replaced according to customer requirements. When the material is crushed to a diameter smaller than the sieve hole, the powder comes out of the sieve and falls into the lower aggregate bucket. The dust floating in the bucket is sucked into the dust removal bag inside the dust removal box through the action of the dust removal motor for filtration, and the air is discharged outdoors by the fan.

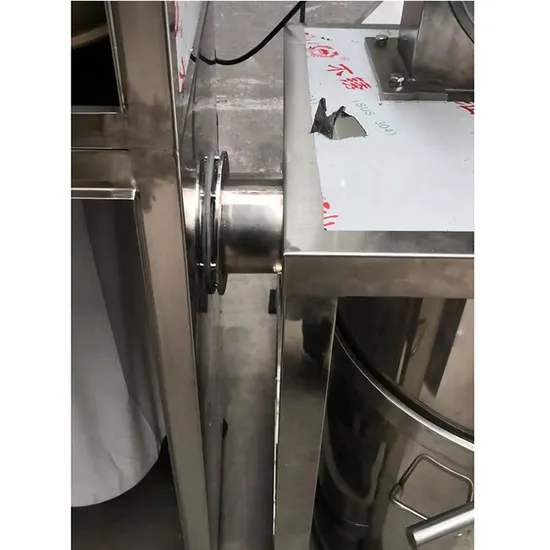

Detailed Photos
Product Parameters

Mechanical parameters
Model	XJT-CCFS180	XJT-CCFS250	XJT-CCFS350
Voltage	380V	380V	380V
Dedusting power	0.37kw	1.1kw	1.1kw
Crushing power	3kw	5.5kw	7.5kw
Yield	10-120kg/h	30-250kg/h	50-500kg/h
Mechanical size	1050*1000*1200mm	1200*1200*1650mm	1300*1300*1800mm
Mechanical weight	≈100kg	≈300kg	≈400kg

Mechanical parameters
Model	XJT-CCFS400	XJT-CCFS500	-
Voltage	380V	380V	-
Dedusting power	1.1kw	1.1kw	-
Crushing power	11kw	22kw	-
Yield	70-700kg/h	140-1000kg/h	-
Mechanical size	1400*1400*1800mm	1500*1500*2000mm	-
Mechanical weight	≈500kg	≈800kg	-
