Vps -Ec003 Vibration Pickup Sensor

Product Description

Product Description
Description
Yuanben Magnetoelectric is a manufacturer of quality engineered solutions, products and technologies. Established in 2001, through the commitment of our dedicated team we have become a supplier of choice.
VPS -EC003 Vibration Pickup Sensor is made of eddy-current sensor, measuring the shift position variety
The top-entry velocity transducer with DC output is made from robust stainless steel throughout for continuous vibration monitoring in harsh environments.
It is sealed to IP67 with industry standard two-wire 4-20mA output proportional to sensor range that can connect directly to PLC, DCS and other industrial controllers. Includes integral stainless over braided ETFE cable and is available with a wide range of mountings.

Applications

• Air handling units • Building services • Fans

Technical Details
Specifications
Output current 4-20mA DC proportional to rms velocity (mm/s)
Supply voltage 12-32V DC (4-20mA)
Frequency response 2Hz to 1kHz ±10%
Mounted base resonance 5kHz (nominal)
Isolation Base isolated
Dynamic range 50g peak
Transverse sensitivity Less than 5%
Operating temperature -25 to 90°C
Temperature sensitivity 0.08%/°C
Case material Stainless steel
Cable Integral stainless steel over braided ETFE
Standard cable length 5m
Maximum cable length 100m
Mounting torque 8Nm
Weight 150g (nominal)

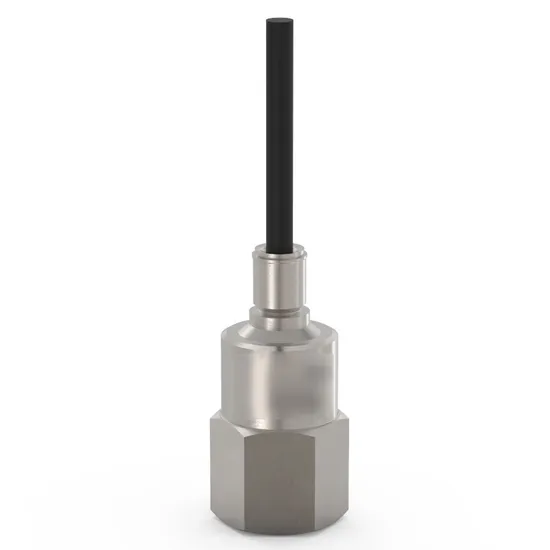

Sealing IP67 Detailed Photos
