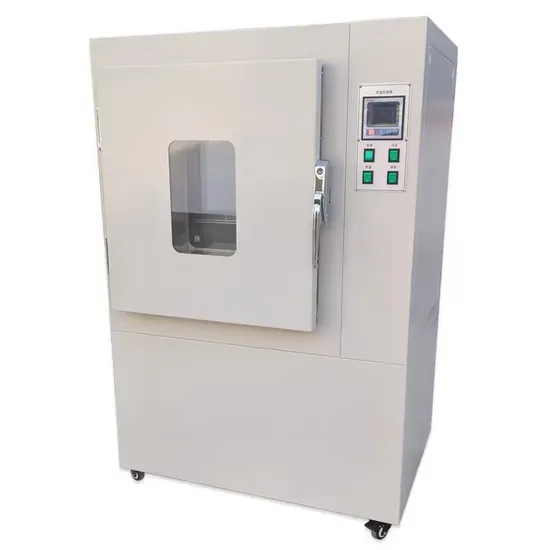

Xenon Lamp Aging Test/Testing Chamber for Laboratory Equipment

Xenon Lamp Aging Test/Testing Chamber for Laboratory Equipment

US$18,000.00-60,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
PW-XD80LA
Certification
CE, ISO, SGS
Warranty
1 Year
Model No
Pw-Xd80la
Internal Dimensions
950×950×850mm
External Dimensions
1350×1400×2100mm
Temperature Range
0ºC~80ºC
Temperature Deviation
±2ºC (Without Lighting)
Humidity Range
30~8%R.H.
Humidity Deviation
±2.5%R.H (Humidity≥75%R.H)
Transport Package
Wood
Specification
100L
Trademark
PW
Origin
China
HS Code
8514109000
Production Capacity
1000pieces/Year

Packaging & Delivery

Package Size
135.00cm * 140.00cm * 210.00cm
Package Gross Weight
100.000kg

Product Description

Product Description
Xenon lamp aging test is a comprehensive weather test device. In addition to the weather aging test, it can also test the optical resistance of high-resolution materials, that is, polymer materials are exposed to artificial light sources that simulate the sunlight spectrum through the glass to evaluate materials Rotation resistance. Carry out simulation and intensified experiments from the main climatic factors of light energy, temperature, rainfall or condensation, humidity; use xenon arc lamps that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments;
The box can provide corresponding environmental simulation and accelerated tests for scientific research, product development, and quality control, and can be used for tests such as the selection of new materials, the improvement of existing materials, or the evaluation of changes in durability after changes in material composition; suitable for plastic, rubber, paint, ink, paper, medicine, food, cosmetics, textiles, auto parts, packaging materials, building materials, and electrical products, etc.;The xenon lamp test box uses a xenon arc lamp that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments and can provide corresponding environmental simulation and accelerated tests for scientific research, product development, and quality control;The xenon lamp test chamber can be used for tests such as the selection of new materials, the improvement of existing materials, or the evaluation of changes in durability after changes in the composition of materials. It can well simulate the changes in materials exposed to sunlight under different environmental conditions;Simulate full sunlight spectrum:The optical resistance of the material is measured by exposing the material to ultraviolet (UV), visible light, and infrared light. It uses a filtered xenon arc lamp to produce a full sunlight spectrum with the greatest consistency with sunlight. The xenon arc lamp with reasonable filtering treatment is the best way to test the product's sensitivity to longer wavelength ultraviolet and visible light in direct light or sunlight through glass.Optical resistance test of indoor materials:Due to long-term exposure to fluorescent lamps, halogen lamps, or other light-emitting lamps, products placed in retail outlets, warehouses or other environments will also experience significant photodegradation. The SN xenon lamp test chamber can simulate and reproduce the destructive light in such a commercial lighting environment and can accelerate the test process with higher intensity.Simulated climate environment:In addition to the photodegradation test, the SN xenon lamp test box can also become a weathering test box by adding a water spray option to simulate the influence of outdoor moisture on materials.

Features
1. Full-spectrum xenon lamp.
2. A variety of filter systems for selection.
3. Water spray function.
4. Relative humidity control.
5. Test chamber air temperature control system.
6. Irregularly shaped flat product rack for easy placement of products.
7. Domestic water-cooled xenon arc tube (U.S. original imported lamps can be customized).
8. It is easy to install and use and basically does not require routine maintenance.
9. The service life of the xenon arc lamp tube depends on the level of radiation illuminance used. The life of the general lamp tube is 1600 hours. The lamp can be replaced quickly and easily, and the long-lasting filter provides protection for maintaining the required spectrum.
10. The latest air-cooled xenon lamp solves the problem of the high failure rate of the water-cooled xenon lamp cooling method. It is convenient for users to replace the lamp by themselves; maintenance is simple and convenient.

Product Parameters
Model PW-XD80LA
Internal Size 950×950×850mm (D×W×H)
External Size 1350×1400×2100mm (D×W×H)
Temperature Range 0ºC~80ºC (not within the measurement range)
Temperature Deviation ±2ºC (without lighting)
Humidity Range 30~98%R.H.
Humidity Deviation ±2.5%R.H (humidity≥75%R.H) ±3%R.H(humidity≤75%R.H) (without light)
Type of Light Source Water-cooled full solar spectrum long arc xenon lamp (average service life is about 1200 hours)
Rain Time 1~9999 minutes, adjustable
Rain Cycle 1~240 minutes, adjustable interval (break)
Spectral Wavelength 290nm~1200nm
Xenon Lamp Power 1CW, 6KW (lifetime: 1600 hours)
Light Source Wavelength Range 290-1200nm
Heating Power about 6KW
Humidification Power about 4KW
Light Source Irradiance Spectrum 290-1200nm 300-1200w/m2 (continuously adjustable); The energy compensation of the xenon lamp is realized by adjusting the voltage and current.
Irradiation Area about 7500cm2
Distance from arc center to sample holder 350~380mm
Rotation Speed of Sample Rotating Basket ≥1r/min (stepless speed regulation)
Water Spray Time 0~99h59min, continuously adjustable
Stop Spray Time 0~99h59min, continuously adjustable
Illumination Time continuous programmable control
Blackboard Temperature 65ºC±3ºC adjustable
Cooling Method mechanical cooling and air cooling
Total Power and Power Supply about 15KW; 380V±10% 50HZ
Company Profile

Company Introduction:
PW (Guangdong) Instruments Co., Ltd. was established in March 2007, a national high-tech enterprise, located in Tongzheng Intelligent Industrial Park, No. 2, North 3rd Road, Tingshan Square, Houjie Town, Dongguan City, Guangdong Province. Through years of operation, the company has gathered a group of talents with considerable qualifications in the industry, and has accumulated a large number of high-quality customers. In order to better serve customers in East China, the company established PW Instruments (Shanghai) Co., Ltd. in Shanghai and set up an instrument exhibition hall and testing center in Suzhou Industrial Park.
Corporate Culture:
Vision: Become a world-renowned instrument manufacturer
Mission: Provide customers with high-quality testing equipment
Values: Customer satisfaction is our aim.
Certifications

FAQ
Q: Are your company a trading one or a factory?A: Factory, More than 15 years focusing on test equipment field, 10 years exporting experience.Q: After an order is placed, when to deliver?A: Generally about 10-25 days, If we have inventory, we can arrange shipment within 3 days.Please be aware that our production lead times depend on specific items and item quantities.Q: What about the warranty with after-sales services?A: The testing machine is guaranteed for 12 months by PW, we can help you to repair your problem controller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handle guest problems and complaints in a professional and timely.Q: What about the product's services and quality?A: Each piece of equipment must be carried out 100% quality examination and test when shipping and delivering goods. Product use training, each of our products provides video training to show you how to install & operate. We can arrange engineer to train the operation of equipment to customer's company when you need. products are widely recognized and trusted by users.A: Considerate Service Different countries plugs, manually change the voltage from 110V to 220V, insurance indicator.Q: Can your products be customized?A: Yes, our product can be customized according to your parameters.
