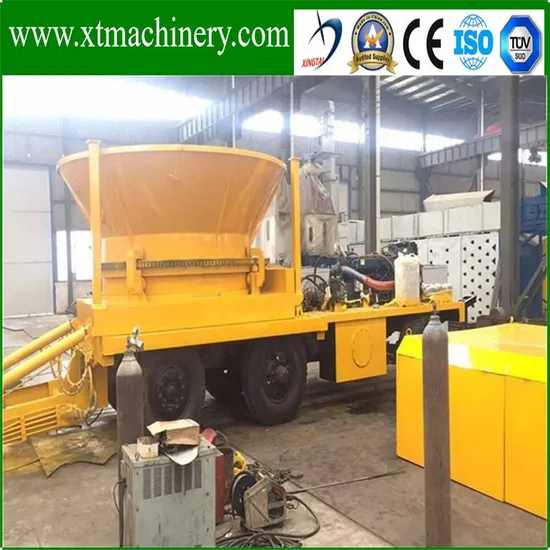

350HP Diesel Engine, Max 2100mm Stump Diameter Tree Root, Tree Stump Shredder
| US$19,500.00-65,800.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
XT-3600
After-sales Service
10 Years
Rotor Diameter
750mm
Blade Numbers
6PCS
Running Speed
1405r/Min
Finished Chip Size
20mm-50mm or Customized
Feeding Conveyor
10m
Discharge Conveyor
10m
Top Feed-Inlet Size
3600mm
Bottom Feed-Inlet Size
2300mm
Maximim Stump Diameter
2100mm
Transport Package
by Sea
Specification
8900mmx2800mmx2600mm
Trademark
XT Machinery
Origin
China
HS Code
84659600
Production Capacity
30 Sets/Month
Product Description
Wood chipper machine brief introducitonStump grinder is mainly used for producing wood chips from tree roots, stump, which is the main raw material of biomass factories and also curhsing baled straw.
| Detailed Models For Wood Stump: Specially cut the wood stump into small mulch or chips with size 20mm-50mm | ||||||
| Model | XT-3000 | XT-3300 | XT-3600 | |||
| Rotor diameter | 650mm | 750mm | 750mm | |||
| Blade numbers | 2-6 pieces | 2-6 pieces | 2-6 pieces | |||
| Running speed | 960r/min | 960r/min | 1405r/min | |||
| Mesh screen size | Φ 50 or customerized | Φ 50 or customerized | Φ 50 or customerized | |||
| Main power | 160KW | 220KW | 250KW | |||
| Feeder power | 5.5KW | 7.5KW | 7.5KW | |||
| Discharge power | 5.5KW | 7.5KW | 7.5KW | |||
| Oiling Power | 3KW | 3KW | 3KW | |||
| Top feed-inlet size | 3000mm | 3300mm | 3600mm | |||
| Bottom feed-inlet-size | 1600mm | 2000mm | 2300mm | |||
| Maximum stump diameter available | 1200mm | 1600mm | 2100mm | |||
| Output capacity | 10-15Ton/Hour | 15-20Ton/Hour | 20-25Ton/Hour | |||
| Machine weight | 8.9Tons | 18.7Tons | 24.8Tons | |||
