Sf4022 High Speed Drilling Machine for Making Pallet Collar

Product Description

SF4022 Automatic CNC Pallet Collar Drilling Machine
Feature SF4022 automatic drilling machine for wooden pallet collar, width adjustable, drilling bits can customize.
Advantages Easy to operate, high efficiency, safety for worker.

Model	SF4022
Working length	540-1200mm
Working width	195-205mm
Working thickness	19-22mm
Fixed hole distance	50mm
Hole diameter	5mm
Motor speed	2800RPM
Machine power	3KW
Voltage	380v 50hz 3phase
Air consumption	0.5-0.8Mpa
Productivity	About 200pc/h
Machine size	2200*950*1500mm
Machine weight	590kg

Detailed Images
Button panel
Simple and clear
Foot pedal control
Control the drilling head
Handwheel adjust working width
With electric reader, more convenient
Automatic press wood
Then drill, more safe
Drilling bits
Standard diameter 5mm
Final product
Packing&Shipping
1) The machine will be deliver as a whole machine.2) Machine packed with wrapping film and fixed by plastic belt.3) Packing the machine in 1 plywood box.

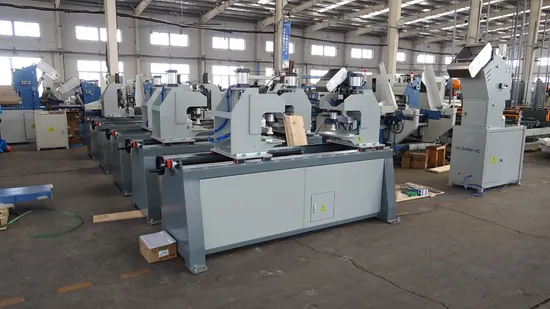

Factory overview
Our CompanyHICAS group is one leading manufacturing and exporting company of wood working machine in China. We are committed to provide one-stop service to our customers all over the world.
HICAS was established in 2003 with two manufacturing centers in Foshan and Qingdao, covering about 40,000 square meter.
1.Founded in 2003.
2.Owns 2 factories manufacturing nailess plywood box machine, wood pallet machine,wood crate machine, nailless plywood box.
3.Owns 70% Market Share(Nailless plywood box machine) in China.
4.Expertized in R&D, Manufacturing, Marketing,Training, and Service.
5.Professional in consultation of Factory construction and Processing Technology, and Technical Improvement Training.
6.Supply Technical Solution base on Cost Analysis and Optimal Allocation.
7.Customer and feedback.
