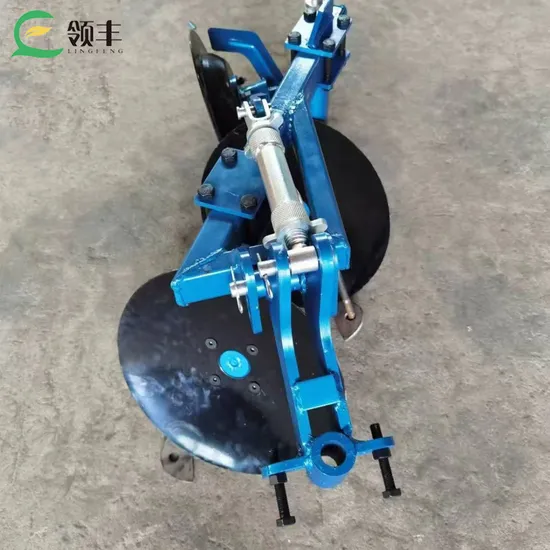

Lf-Yp Manual Disk Plow Agricultural Mechanical Disk Plow

Product Description

Product Parameters
15/18/20/22 HP diesel engine+151 chassis Rotary tiller and seat

22HP walking tractor parameter table
ltem	Unit	Specifications
Engine model		ZS1115
Overall dimensions(LxWxH)	mm	2680×960×1250
Type of tractor		Traction drive dual-use type
traction	N	2400
Min.ground clearance	mm	185
Track width	mm	580-800
rated power	KW/hp	14.7/22
Type of engine		Horizontal 4-stroke
Bore x stroke	mm	115*115
Turingspeed of crankshaft	rpm	2200
Fuel consumption rate	g/kw.h	≤244.8
start mode		Electric start/ hand start
Lubrication mode		Pressure splatter
Rotary tiller width	cm	100
Fuel tank capacity	L	12
Water tank capacity	L	17.5
Net weight	kg	340 (without rotary tiller) 440(with rotary tiller)
Tire model		600-12

15/18 hp walking tractor

18HP walking tractor parameter table
ltem	Unit	Specifications
Engine model		ZS1105
Overall dimensions(LxWxH)	mm	2170×890×1150
Type of tractor		Traction drive dual-use type
traction	N	1700
Min.ground clearance	mm	210
Track width	mm	640-680
rated power	KW/hp	12.1/18
Type of engine		Horizontal 4-stroke
Bore x stroke	mm	105*115
Turingspeed of crankshaft	rpm	2200
Fuel consumption rate	g/kw.h	≤246.2
start mode		Electric start/ hand start
Lubrication mode		Pressure splatter
Rotary tiller width	cm	100
Fuel tank capacity	L	12
Water tank capacity	L	3
Net weight	kg	310(without rotary tiller) 380(with rotary tiller)
Tire model		600-12

8/9/10/11/12/13 hp walking tractor+101 Rotary tiller+seat

Type	units	101
Structural weight	kg	360
Usage weight (including rotary tiller)	kg	504
Plowing speed	rpm	188
Dimensions (length * width * height)	mm	2680*960*1250
Number of plows	PCS	10 on each of the left and right sides
Rotary tillage amplitude	mm	1000
Hand held tractor type		Single axis, drive traction
Driving speed (forward)	ng	1.4,2.5,5.3,9.4,15.3
(Step back)	ng	1.1,3.8
Tire Size		600-12
Wheel torque	TID	800,740,640,580,800
Ground clearance	mm	250
Minimum turning radius	mI	0.9(without rotary tiller status)
Engine (model)		ZR195
(Calibrated power)	kw	8.82
(Calibrated speed r/min)		2200
(Cooling method)		Evaporative water-cooled type

Orchard type walking tractor(8-13HP+101Chaiss)
Detailed Photos

Walking tractors of 8-30 horsepower are available, as are 40 farm implements that can be combined with the walking tractor head. If you have the required model and the corresponding agricultural machinery, please inform customer service online, customer service will quote and make PI for you.
Company Profile

Shandong Lingfeng Machinery Manufacturing Co., Ltd. has developed into a professional, leading, and modern enterprise integrating the development, manufacturing, and sales of agricultural and horticultural plant protection machinery since its establishment in 2016.
We have an excellent technical team that can design according to customer requirements
With years of experience in spray design and manufacturing, we provide customers with first-class spray solutions, and provide a full range of professional products from small spray to large tractors to install spray. We have everything you need.
More than 90% of our products are exported, covering markets in over 100 countries and regions such as Europe, America, Southeast Asia, the Middle East, and Africa, and are highly praised by customers around the world.
The company relies on technological innovation and scientific management, and has successively passed ISO9001:2008 international quality management system certification. Some products have also passed international and national quality and safety certifications such as CE and CCC.
For many years, our team has been dedicated to the in-depth cultivation, research, and evaluation of the market. Therefore, we have a broad understanding of products and applications. In addition, after years of development, we have obtained a large number of invention, utility model, and design patents. With a wide product line, we have a variety of product components, pumps, engines, and motors to design your personalized products and develop solutions that meet your needs. With a strong and experienced team of engineers, we have provided excellent services to many clients worldwide.
Certifications
Packaging & Shipping

FAQ

1,Are you a factory or a trading company?
We are a factory
2,How can we ensure quality?
Always provide pre production samples before mass production;
Always conduct final inspection before shipment;
3,What can you buy from us?
Orchard spray, farm spray, self-propelled spray, trailer spray, mini truck dump truck
4,Why do you want to buy from us instead of other suppliers?
In the past ten years, we have been focusing on the research and production of orchard spray. Self propelled spray with
It is small and exquisite, easy to operate, beautiful in appearance and good in effect. We also provide large trailer spray for large farms.
5,What services can we provide?
Accepted delivery terms: FOB, CIF;
Accepted payment currencies: USD, EUR, GBP, RMB;
Accepted payment method: wire transfer;
Languages: English, Chinese, Spanish and other languages
