Enamelled/Fiber Glass Round/Flat/Square Aluminium Wire

Product Description

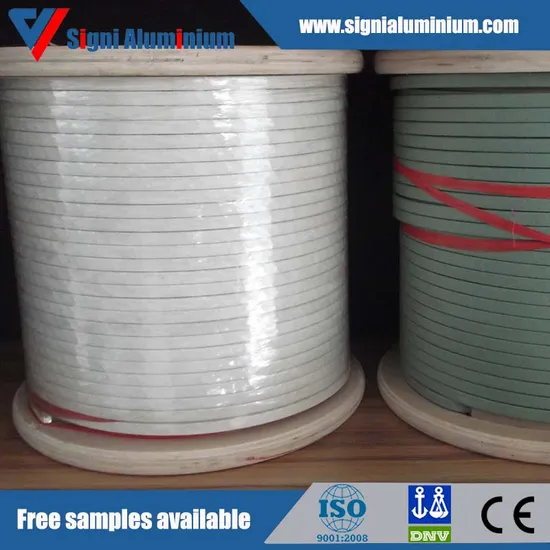

Enamelled/Fiber Glass Round/Flat/Square Aluminium Wire
Enamelled aluminum wire is a type of winding wire made by electric round aluminum rod which drawn by dies with special size, then over coated with enamel repetitiously.Enamelled
Round Aluminum Wire is a fundamental part of a winding in every electrical machine or apparatus. Compared to fibrous insulations, enamelled aluminium wire offers a favourable space
saving factor together with a high level of breakdown voltage. The main application of Enamelled Enamelled Aluminium wire is in winding of Motor and Transformers.

aluminum wire specification
1. Diameter: 0.80--8mm
2. Recommended width ratio of conductor : 1.4<b/a<8.0
3. Temperature Class (C) : 130, 155, 180, 200, 220
4. Color : natural color,red,blue, green and so on
5. liackage : PT-25 PT-30 PT-60 PT-90 PT-200,PT-270,
Material of aluminum wire
Drawing or extruding bare aluminum wire confirm to National Standard, smooth surface, no defects ;Good performance,Insulation varnish.

Type	Polyesterimide	Polyimide and polyimide mixed	Polyvinyl acetal	Thermal bonding acetal
Temperature-resist grade	180	200	150	130
Property	High heat resistance, good chemical resistance, hydrolysis resistance	Excellent heat resistance, strong resistance to chemical solvents, good scratch resistance	Excellent resistance to transformer oil, good resistance to scratch, excellent flexibility and adhesion, and good water resistance.	In addition to all the performance with acetal, also can obtain good adhesion strength by the heating mode
Standard	GB/T7095.4-2008, IEC60317-28	GB/T7095.6-2008, IEC60317-29	GB/T7095.2-2008, IEC60317-18

aluminum wire Types
Class 130(155) Polyester Enamelled round aluminum wire;
Class 180 polyesterimide enameled round aluminum wire;
Class 200(220) polyesterimide over-coated with polyamide-imide enmalled round aluminum wire.

Standard of aluminum wire
Applicable standard or part of the reference standard :
GB/T6109/IEC60317-0-1
GB/T23312/IEC60317-0-3
MW76-A
MW35-A

The advantages of aluminum wire
1. Compared with the copper enameled wire, enameled aluminum wire is easier to winding, also there is a solid oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
2. Due to the good insulating effect of aluminum film layer, it's heatresistant temperature can be 20 degrees higher than the copper wire;
3. Thegreatest benefit of using aluminum is that it is 1/3 lighter than copper which significantly lower the production costs, second it can attach to the solids easily, and third it can also reduce the freight and transportation during the operation.

Features of Aluminum Wire
Low density allows coil weight reduction
Rapid heat dissipation
High cut through
Excellent heat shock
Perfect breakdown voltage
High heat resistance
Good solvent resistance

Application of aluminum wire
1. Microwave transformers;
2. Requirements for the production of light weight, relatively high conductivity, heat resistance and good windings, especially the transmission of high frequency signal windings;
3. Manet wires used in high-frequency voltage devices, common transformer, inductance coils, electromotors, household electrical and micro-motos;
4. Enamelled wire used in small-motor rotor winding .etc.
5. Magnet wires used in monitor deflection coil;
6. Magnet wires used in degaussing coil;
7. Other special magnet wire.
