New Design Hydraulic System High-Speed CNC Angle Steel Drilling Marking Shearing Machine for Power Transmission Line

New Design Hydraulic System High-Speed CNC Angle Steel Drilling Marking Shearing Machine for Power Transmission Line

US$172,000.00
1-4 Pieces
US$171,800.00
5-9 Pieces
US$171,600.00
10+ Pieces

Basic Info.

Model NO.
HADM3635 CNC Angle Drilling Machine
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
Bt40
Hole Diameter
<50mm
Automatic Grade
Automatic
Precision
High Precision
Certification
GS, CE, RoHS, ISO 9001
Condition
New
Angle Size( mm)
140*140*10-250*250*32
Max.Length of Raw Material(M)
14
Marking Force(Kn)
1030
Max.Drilling Diameter(mm)
26
Transport Package
Packages
Specification
30*7.5*3
Trademark
RAINTECH
Origin
China
HS Code
8462490000
Production Capacity
20 Sets/Month

Packaging & Delivery

Package Size
50.00cm * 60.00cm * 70.00cm
Package Gross Weight
1000.000kg

Product Description

New Design Hydraulic system CNC Angle Steel Drilling Marking Line
Product Description

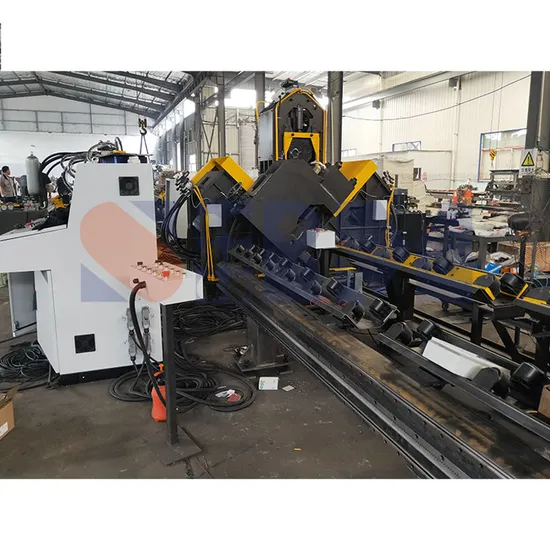

1. This processing line is composed of transverse conveyor, overturn conveyor, infeed conveyor, CNC infeed carriage, two sets of drilling units, one set of marking unit, automatic unload conveyor and corresponding hydraulic station, electric cooling system.
Adopt CNC technology, servo motor in feeding, with high efficiency, stable work piece precision.
2. There is one set of drilling unit on each side. Every drilling unit can be installed with three drills of different dimensions. The drilling unit can realize the CNC movement holistically for change of drilling stadia, therefore to ensure the accuracy of holes.
3. Rotation speeds of all spindles are stepless adjustment realized by transducer, and feeding speeds are also stepless adjustment realized by speed regulating valves. Transform of the rapid feeding, work feeding, and rapid withdrawing of spindles all are finished automatically.
4. One marking unit in the drilling line. Marking stadia can be preset conveniently. Marking, clamping of the workpiece and infeed of the drilling are driven by the hydraulic system. Main components are imported. Circulate cooling system is applied so as to prolong the life of drills.
5. All marking and drilling in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength of workers with well advantages than other manufacturers.
6. The control system consists of the host computer, servo motor, PLC, external monitoring switch, etc. Just input the dimension of the workpiece, the processing program will be generated automatically. Besides, the program can be saved, selected, displayed and communicated as per the workpiece No.
7. The machining line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.
Product Parameters
Model HADM2532 HADM3635
Angle size( mm) 140*140*10-250*250*32 140*140810-360*360*35
Max.length of raw material(m) 14
Marking force(kN) 1030
Marking unit type Close type
Qty.of character group 1
Qty.of character 15
Character size(mm) 14*10*19
Back marking (mm) 50-220steoless 50-330stepless
Qty.of drill on each side 3
Max.drilling diameter(mm) 26
Taper of drilling spindle BT40
Max.spindle rotation speed(r/min) 6000
Max.moving speed (m/min) 40
Max.moving speed of slipway of drilling head 10
Max.feeding speed of drilling head 14
Qty.of CNC axes 9
Overall dimension (m) About 30*7.5*3 About 33.3*8.9*3
Machine weight About 30000 About 34000

Workpiece Show
Application
This line is fully automatic machine for punching, marking, shearing of the angle line, which used widely in telecommunications angel steel tower industry, electric power fittings, warehouse rack, structural steel construction industries etc.
Manufacturing Process
We have cooperated with experienced shipping forwarders for many years, they arrange the shipment. No matter by express, by air or by sea, we will track the course of the goods all the way, to make sure goods arrive at you on time and in good condition.
Company Profile

Why Choose Raintech SANS?
CERTIFICATE
International exhibitions
Customer visits
FAQ
♥1.How to operate the machine ? We will deliver English manual and video with the machine to you. lf you still need our help, please contact us.
♥2.If some problems happen to this machine during warranty period, what should I do?
We will supply free charge of spare parts and regularly maintenance service during machine warranty period if machine have some problems. So any doubts, just let us know, we will give you solutions.

♥3.Does the machine can be customized according to my requirements ?
Yes, we have a strong technical team and have rich experience.

♥4. What about the package and shipment ?
The machine will be packaged by multilayer plastic wrap for anti-humidity on the sea. The strong steel wire roops will be used for fix the machines in container to avoid any damage in transportation.
