High Quality High Precision Fiber Laser Cutting Machine with Tube

High Quality High Precision Fiber Laser Cutting Machine with Tube

US$43,800.00-54,700.00 1 Piece (MOQ)

Basic Info.

Model NO.
HN-3015FR
Application
Home Appliance, Environmental Equipment, Petroleum Machinery Manufacturing, Agriculture Machinery, Aerospace Industry, Automotive Industry, Advertising Industry
Cooling System
Water Cooling
Technical Class
Continuous Wave Laser
Applicable Material
Metal
Structure Type
Desktop
Laser Classification
Fiber Laser
Laser Technology
Laser Beam Cutting
Laser Source
Raycus/ Ipg/Max
Laser Cutting Head
Raytools/Wsx/ Precitec
Water Chiller
Hanli
Control System
Cypcut
Guide Rail
Hiwin
Front Chuck
Pneumatic/Manual
Rear Chuck
Pneumatic
Transport Package
Stretch Film
Specification
4450*2450*2000mm
Trademark
Hongniu Laser
Origin
Jinan, China
HS Code
8456110090
Production Capacity
50/Month

Product Description

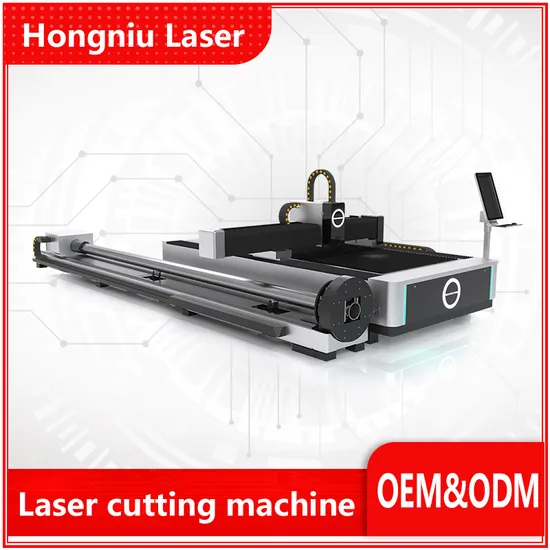

High quality high precision fiber laser cutting machine with tube
Product Description


This model integrates square tube, circular tube, oblate tube, and plane cutting in one, with multi-function and high practicality. Gantry structure and dual drive, Germany imported rack & pinion drive system. Excellent cutting performance and stability Self-centering jig system ensures stable process of conveying pipes, so that it can ensure high accuracy and high quality of products. The machine, with high accuracy of machining dimension, can take the place of traditional processing equipment, such as sawing and punching. Saddle-shaped pipe type support beam is with high precision calibration, no deformation during 12m pipe cutting Cutting Samples
Metal material
Cutting a wide variety of metal plates, tubes, mainly applicable to stainless steel, carbon steel, manganese steel, galvanized sheet, a variety of alloy plates, rare metal and other materials cutting.
Application Industry
Industry of kitchen ware, lamps and lanterns, panel beating, metal cabinets, auto parts, refrigerators, air condition, elevators, hotel metal supplies processing, etc
Detailed Photos
Machine Details
Machine Specifications
Maximum working area 1500*3000mm, 1500*4000mm, 2000*4000mm,2000*6000mm, 2500*6000mm( optional)
Cutting thickness Depend on the laser power
Laser power 1000-20000w
Transmission mode Imported square rail and helical gear
Positioning accuracy of X/Y axis ±0.01 mm
Repositioning accuracy of X/Y axis ±0.02 mm
Maximum moving speed of X/Y axis 120m/min
Minimum cutting line width 0.02mm
Floor dimension Depend on the working area
Whole weight Depend on the working area

Why Choose Us
1:About HongNiu Laser:
Premium OEM Factories Since2012 With 2 Years Warranty Period
Manufacturers assessed by independent third parties
R&D capability for customization, ,
High-performance manufacturing capacity ,Professional certifications&approvals
2:Technical R&D:
Environmental Advantage : Dust-free Quiet Environmental Friendly
3:Customer Service Advantage:
7*24H fast response service.24 hours online service
4:Free Training:
overseas support
User-friendly English manual and Video CD for machine using and maintaining.
5:WARRANTY:
machine 2 years,spare parts 2 years.

Quality Control System
We strictly control every production link, and produce stable and efficient fiber cutting machines to meet all your needs.
Packaging & Shipping
Package details
Stretch film and Plywood Pallet
Delivery
shipment within the specifited time limit

Company Profile
PART 1
Hongniu office R & D center, product exhibition hall, customer experience center, 1000-15000 watt fiber laser sample cutting 1000W-15,000W, laser welding, 3D cutting robot center always meet customer needs

PART 2 Workshop
Hongniu factory workshop, exquisite production technology, is the core strength of Hongniu's production
PART 3 Exhibition
Hongniu laser participated in many domestic and foreign exhibitions and established long-term cooperation and friendly relations with many customers
PART 4 Cetificate
