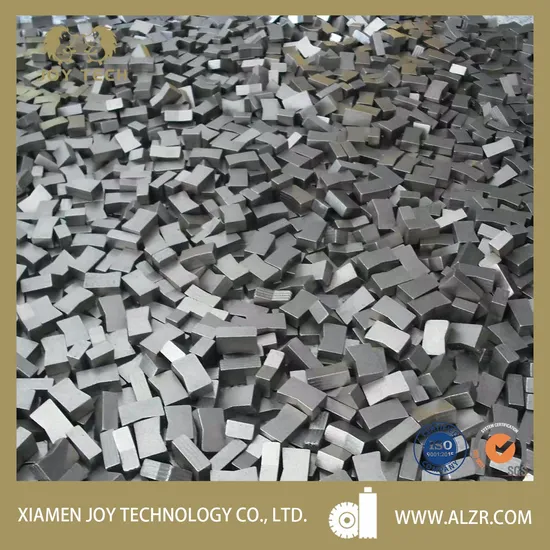

1200mm Cutting Blade Diamond Segment for Marble Stone
| US$0.50-1.50 | 200 Pieces (MOQ) |
Basic Info.
Model NO.
JOY-S06
Blade Material
Diamond
Bond
Very Soft, Soft, Medium Bond, Hard, Very Hard
Grit Available
6# 16# 20# 30# 60# 80# 100# 150# 200# 400# etc.
Color
Black, White, Blue, Red, Gold, Silver, and Customi
Application Machine1
Sti, Prepmaster, Stonekor Grinde
Application Machine2
Terrco, Blastrac, Blastpro, Diamapro Grinder
Application Machine3
Terrco, Microban, Ameripolish, Sase Grinder Plate
Application Machine4
Spe Cps, Diamatic, Bartell, Scanmaskin, Schwamborn
Application Machine5
Klindex, Edco, Werkmaster, Airtec Grinder Plate
Advantage
Fast Grinding Long Working Life, Stable Perform
Usage
Stone, Concrete, Glass, Ceramics, Steel, Synth
Certification
CE, ISO9001, ISO2000, SGS, MPa
Sample Production Time
7 Days
Shipping
by Air, Sea Freight, Express
Manufacturing Experience
Over 18 Years Diamond Tool Manufacture Experience
Transport Package
Carton Box, Color Box, White Box, Double Blister,
Specification
OEM ODM Customized
Trademark
JOY
Origin
China
HS Code
6804219000
Production Capacity
30000000 PCS/ Month
Packaging & Delivery
Package Size
35.00cm * 35.00cm * 35.00cm
Package Gross Weight
1.000kg
Product Description
Product Description1. The blade has good sharpness and high efficiency at the process of cutting, meanwhile, it has a long lifespan.
2. Good cutting result: smooth cutting, flat surface and even size.
3. Stable cutting, narrow cutting gap, stone waste reduction.
4. M-shape segment is easy for diamond opening.
| Product Name | Diameter (mm) | Steel Core Thickness(mm) | Segment Dimension(mm) | Segment Number | Application |
| Edge Cutting Segment For Stone | 300 | 2.2 | 40x3.2x10(15,20) | 21 | Granite, Marble, Basalt, Volcanic, Lava Stone, Andesite, Travertine, Limestone, Sandstone, Quartz, Artificial Stone, Microcrystal Stone |
| 350 | 2.2 | 40x3.2x10(15,20) | 24 | ||
| 400 | 2.6 | 40x3.6x10(15,20) | 28 | ||
| 450 | 3.0 | 40x4.0x10(15,20) | 32 | ||
| Splitting Segment For Stone | 500 | 3.0 | 40x4.0x10(15,20) | 36 | |
| 550 | 3.6 | 40x4.6x10(15,20) | 40 | ||
| 600 | 3.6 | 40x4.6x10(15,20) | 42 | ||
| 650 | 4.0 | 40x5.0x10(15,20) | 46 | ||
| 700 | 4.0 | 40x5.0x10(15,20) | 50 | ||
| 750 | 4.0 | 40x5.0x10(15,20) | 54 | ||
| 800 | 4.5 | 40x5.5x10(15,20) | 57 | ||
| 850 | 4.5 | 40x5.5x10(15,20) | 58 | ||
| Block Cutting Segment For Stone | 900 | 5.0 | 24x7.0/6.2x13(15,20) | 64 | |
| 1000 | 5.0 | 24x7.0/6.2x13(15,20) | 70 | ||
| 1200 | 5.5 | 24x7.4/6.6x13(15,20) | 80 | ||
| 1400 | 6.0 | 24x8.0/7.2x13(15,20) | 92 | ||
| 1400 | 6.5 | 24x8.4/7.6x13(15,20) | 92 | ||
| 1600 | 7.2 | 24x9.2/8.4x13(15,20) | 108 | ||
| 1800 | 7.5 | 24x10/9.2x13(15,20) | 120 | ||
| 2000 | 8.0 | 24x11/10x15(20) | 128 | ||
| 2200 | 9.0 | 24x11/10x15(20) | 132 | ||
| 2500 | 9.0 | 24x12/11x20(30) | 140 | ||
| 2700 | 9.0 | 24x12/11x20(30) | 140 | ||
| 3000 | 9.3 | 24x13/12x20(30) | 160 | ||
| 3500 | 9.5 | 24x13.5/12.5x20(30) | 180 | ||
| Other specifications are available upon request. | |||||
| Silent and non-silent blades are available for choice. | |||||
Product Parameters
Diamond Segments For Granite:
| Diameter (mm) | Segment Size (mm) | Segment Number |
| Φ300 | 40*3.2*10 | 21 |
| 40*3.2*12 | ||
| 40*3.2*15 | ||
| Φ350 | 40*3.4*10 | 24 |
| 40*3.4*12 | ||
| 40*3.4*15 | ||
| Φ400 | 40*3.6*10 | 28 |
| 40*3.6*12 | ||
| 40*3.6*15 | ||
| 40*3.6*20 | ||
| Φ450 | 40*4.0*10 | 32 |
| 40*4.0*12 | ||
| 40*4.0*15 | ||
| 40*4.0*20 | ||
| Φ500 | 40*4.2*10 | 36 |
| 40*4.2*12 | ||
| 40*4.2*15 | ||
| 40*4.2*20 | ||
| Φ600 | 40*4.8*10 | 36/42 |
| 40*4.8*12 | ||
| 40*4.8*15 | ||
| 40*4.8*20 | ||
| Φ700 | 40*5.2*10 | 42 |
| 40*5.2*12 | ||
| 40*5.2*15 | ||
| 40*5.2*20 | ||
| Φ800 | 40*6*10 | 46 |
| 40*6*12 | ||
| 40*6*15 | ||
| 40*6*20 | ||
| 900 | 24*7/6.4*12 | 64 |
| 24*7/6.4*15 | ||
| 24*7/6.4*20 | ||
| 1000 | 24*7/6.4*12 | 70 |
| 24*7/6.4*15 | ||
| 24*7/6.4*20 | ||
| 1200 | 24*8/7.4*12 | 80 |
| 24*8/7.4*15 | ||
| 24*8/7.4*20 | ||
| 1300 | 24*8.4/7.8*12 | 88 |
| 24*8.4/7.8*15 | ||
| 24*8.4/7.8*20 | ||
| 1400 | 24*8.4/7.8*12 | 92 |
| 24*8.4/7.8*15 | ||
| 24*8.4/7.8*20 | ||
| 1600 | 24*9.2/8.4*12 | 108 |
| 24*9.2/8.4*15 | ||
| 24*9.2/8.4*20 | ||
| 1800 | 24*10/9*12 | 120 |
| 24*10/9*15 | ||
| 24*10/9*20 | ||
| 2000 | 24*10.5/9.5*15 | 128 |
| 24*10.5/9.5*20 | ||
| 24*10.5/9.5*25 | ||
| 2200 | 24*11/10*15 | 132 |
| 24*11/10*20 | ||
| 24*11/10*25 | ||
| 2500 | 24*11.5/10.5*15 | 140 |
| 24*11.5/10.5*20 | ||
| 24*11.5/10.5*25 | ||
| 3000 | 24*13.5/12.5*20 | 160 |
| 24*13.5/12.5*25 | ||
| 24*13.5/12.5*30 | ||
| 3500 | 24*14.5/13.5*20 | 180 |
| 24*14.5/13.5*25 | ||
| 24*14.5/13.5*30 |
Our Advantages
Company Profile
Application Machine:
Husqvarna-, Lavina,STI ,Prepmaster, Stonekor, HTC, TERRCO, Blastrac, BlastPro, DiamaPro, TERRCO, Microban, Ameripolish, SASE, SPE CPS, Diamatic, Bartell, Scanmaskin, Schwamborn, Klindex, EDCO, Werkmaster, Airtec grinder
