Full Automatic Vulcanization Machine Rubber Machinery to Satisfy Customers

Product Description

Product Description
1. Automatic plate vulcanization function automatic rise, automatic exhaust, automatic fall, vulcanization timing, alarm and automatic mold opening function, improve production efficiency.
2. Vulcanization time, venting times, venting time and other process parameters can be easily set, and there is an automatic pressurization function.
3. The electricity is controlled by PLC, which is convenient, accurate and correct.This machine is suitable for pressing all kinds of moulded products, such as rubber, plastic, etc., and also suitable for wafer products. There are automatic pressure preservation, automatic exhaust, automatic pressure relief functions.

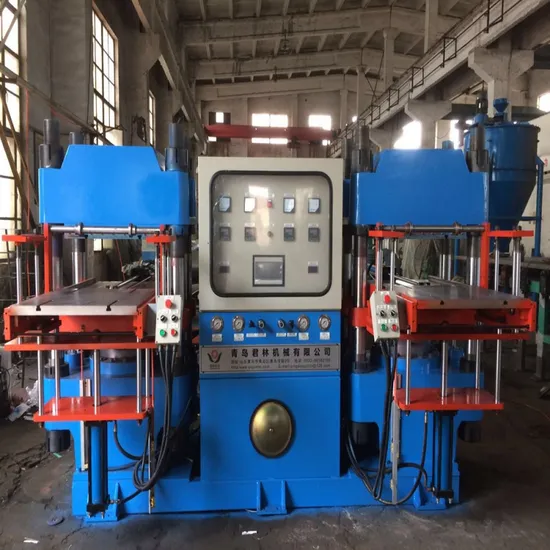

The equipment is a four-column overall structure, the pressing type is down (up) pressure type, divided into main engine, fuel tank and electric control box three parts. The main engine is equipped with plunger, oil cylinder, fixed plate, movable plate and other parts. Fuel tank has oil pump, pipe, valve and other components. The oil pump is driven by motor, and the electric control box is equipped with button switch, magnetic starter, timing alarm, brake temperature controller, overload protector, etc.Detailed Photos
Features:
1. Adopt dual power individual oil circuit design, stable, quiet, low failure rate, two axes can be operated at the same time, and can save 50% energy
2. The front top opening mold is suitable for all kinds of two-layer or multi-layer molds, which is a new multi-functional model
3. Adjustable speed of opening die, accurate and reliable
4. Accurate positioning of the mold, 100% safe positioning, and ensure that the mold is not damaged
5. The vacuum chamber can reach 650-700Hg in 5 seconds
6 Has the function of fast and slow calibration, so that the normal calibration of the mold is more accurate and saferProduct Parameters

	200Ton	250Ton	300Ton	350Ton	400Ton	500Ton
Lamping force(Ton)	200	250	300	350	400	500
Stroke(mm)	250	250	250	300	300	300
Work platform(mm)	Top: 503*508 Lower: 554*560	Top: 600*600 Lower: 600*650	Top: 600*600 Lower: 650*650	Top: 700*700 Lower: 750*750	Top: 800*800 Lower: 850*850	Top: 950*950 Lower: 1000*1000
Main cylinder diameter(mm)	φ355	φ400	φ450	φ475	φ500	φ560
Horse power(hp)	10*2	10*2	10*2	15*2	15*2	15*2
Electrical power(kw)	22	34	34	43	48	72
Vacuum pump(kw)	3	3	3	5.5	5.5	5.5
Weight(kg)	9000	11500	13500	16500	19500	23500
Type of mold opening	up-down-in mold double layer mold opening(Front top open mold) Up and down-in and out of mode,former top open mold cavity-middle-three open mold-ejector device
Machine size L*W*H(m)	3.3*2.71*2.53 3.66*2.95*2.6 4.2*3.6*3.3 3.0*2.36*2.33 3.45*2.63*2.6 3.8*3.3*2.8

Certifications
Company Profile
Qingdao Junlin Machinery Co., Ltd. is a company engaged in rubber machinery, shoe machinery research and development and manufacturing enterprises, located in the west coast of Qingdao, Shandong, China, the geographical environment is superior.
The company gathers a large number of outstanding technical and management talents in the industry, with advanced machining equipment and precision testing instruments. Relying on high-quality service, advanced equipment and excellent technical strength, through continuous innovation and development, Junlin Machinery has established a stable business relationship with many customers at home and abroad, and gradually established a brand position in similar enterprises.
The main products of the company are: open rubber mixing machine series, waste tire rubber recycling production line series, calender, extruder, filter rubber machine series, film cooling line series, plate vulcanization machine series and so on.
Our Advantages
The company has T150 large floor boring machine, 2m×6m large planer milling machine, MQ1350A×3000 cylindrical grinding machine, M7150×2000 surface grinding machine, C62100B×5000 large lathe, C61110×3000 large lathe, C6180×3000 large lathe, C6125×3000 large car Bed, T611B horizontal boring machine, CNC lathe and a series of advanced processing equipment, according to customer requirements to produce a variety of special rubber machinery equipment.
