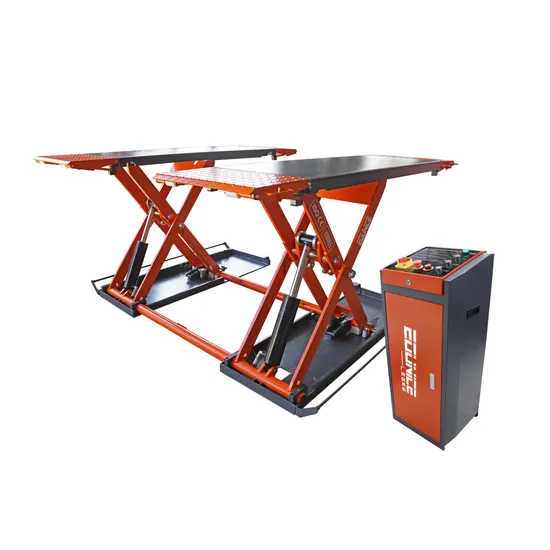

Garage Equipment Full Rise Scissor Lifting Elevator Hoist for Automobile Car Lifter

Product Description

TECHNICAL DATA :

Model	Lifting Capacity	Lifting Time	Lifting Height	Minimum Height	Runway Length	Overall Length (Inc.Ramps)	Runway Width	Gross Weight	Motor Power
ON-7802LT	4,000kgs (9,000LBS)	≤40S	1000mm (39 3/8")	120mm (4 3 /4")	1420mm (55 7/8")	2015mm (79 5/16")	520mm (20 1/2")	648kgs (1,429LBS)	2.2KW (3HP)

PRODUCT INTRODUCTION CE approval by TUV. 4000Kg (9000LBS.) lifting capacity. Portable design and the lift can be moved easily. Durable cylinders with anti-surge valves. Pneumatic safety lock release system. 24V low voltage electrical control system. Self-lubricated bushing and bearing. Standard with height limit switch. Standard with mobile kit makes the lift move in the garage easily. Standard with aluminum motor power unit. Standard with power arm to start the lift easier. MAIN FEATURES Portable design and the lift can be moved easily. The scissor arm is cut by the whole high quality alloy steel plate, and the mounting holes of the scissor arm are welded sleeve, which can ensure the rigidity and strength of the equipment. The joint of hydraulic cylinder is equipped with anti-hose burst throttle valve, which can prevent accidents caused by hose burst. The main structural parts are welded by robot with good welding consistency, high strength and beautiful welding seam. Structural parts are sprayed with imported powder, using imported spraying equipment spraying, high temperature curing, can ensure strong adhesion, bright color and beautiful. OUR FACTORY
Warranty term: Our products are warranted for one years on equipment structure, to be free of defects in material and workmanship.

Motors, gear box, power units, hydraulic cylinders, and all other assembly components such asturnplates, slip plates,

Cables, chains, valves, switches etc, are warranted for one year against defects in material or workmanship under normal use.
Our Services Our Company will be Provide to you some Service.

1. OEM ODM service.
2. Customized service.
3. One Year Quality warrant service, during the period spare part supplied free
if you pay for shipping.
4. Professional team supply service for life long time.
FAQ The Some buyer maybe ask ?

A:You Are Trade Company or Factory?
A: We are manufacturer and we have our own trade company.So pls don`t worry.

B: How long the production can be delivered?
A: Commonly the lead time will be within 15 days after receiving 30% deposit or L/C,
subject to prior sales.This ways based on 1 20FT Containers or 40HQ Container.

C: What is the regular color? Can I order special color which I like?
A: The regular color is Blue, Red, Yellow.
Yes, we can also produce machines with special color according to client's request.

D: Can I order in any special size?
A: Yes,you can.
The size is customized, but should be suitable for the inner size of containers.pls understand.
