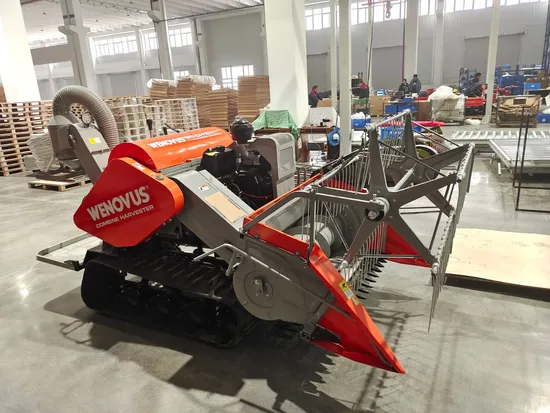

Wenovus China Mini Combine Harvester Agricultural Machinery Diesel Powered 15HP Rice and Wheat Harvester High Quality Farming Machine
| US$3,500.00-3,800.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
WN-CH15
Application
Rice, Wheat, Straw
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Portable Harvester Type
Backpack Type
Certification
CE
Color
Orange
Condition
New
Application Field
Agriculture
Warranty
1 Year
Category
Crawler Type Riding Type
Net Weight
730kg
Cutting Width
1100mm
Ground Clearance
240mm
Average Ground Pressure
9.5kpa/M2
Feeding Capacity
1
Gear
1
Traveling Speed
0.4-14m/S
Productivity
Above 0.06hm2/H
Fuel Consumption
Below 30kg/Hm2
Engine Type
Single Cylinder 4-Stroke, Forced-Air-Cooled
Rated Power
9.5kw
Header Lifting System
Hydraulic
Reel Diameter
730mm
Lost Rate
Below 2.5%
Transport Package
Container
Specification
3000*1380*1650
Trademark
WENOVUS
Origin
Chongqing China
HS Code
84335100
Production Capacity
10000PCS/Year
Packaging & Delivery
Package Size
300.00cm * 138.00cm * 165.00cm
Package Gross Weight
840.000kg
Product Description
Company ProductsOur Advantages
1.Highest levels of vertical integration in the industry
ΦSuperior quality control
ΦStable, responsive supply chain
2.China and Thailand based manufacturing operations and supply chain
ΦAvoids anti-dumping tariffs (country of origin certified as Thailand for select categories)
ΦExcellent Thailand / U.S. government relationship
ΦStable Thailand supply chain and strong industrial base
3.Significant experience in contract manufacturing for well known brands
ΦStrength in maintaining costs low and ability to offer high quality competitively priced finished products to
ΦSupport channel partner brands
4.Wide range of gas and battery outdoor power equipment product categories
ΦMore than 10 categories in production, and adding more
ΦConfigurable products to customize solutions for retail and OEM customers
Product Description
Self-designed full gear transmission box, high transmission efficiency, reliable quality. Direct Gear Drive with Clutch, No pulley, No belt. . With steering,cutting table lifting and brake handle control system,it is efficient and safe . 350mm width crawler, allows larger ground contact area, can work in muddy fields at 30cm depth . Retractable feeding into the roller, feeding evenly without blocking . With sieve in grid type, high-efficient and thorough threshing, less grain loss in straw outlet. . With larger fan and winnowing roller, more accurately grain screening; With air outlet guide pipe, keeps operator away from dust
Detailed Photos
Product Parameters
| MODEL NAME | WN-CH15 |
| Type | Crawler Type, Riding Type |
| Dimension(mm) | 3000*1380*1650 |
| Net Weight(kg) | 730 |
| Cutting Width(mm) | 1100 |
| Ground Clearance(mm) | 240 |
| Average Ground Pressure(kpa/m2) | 9.5 |
| Feeding Capacity(kg/s) | 2850×1350×1340 |
| Speed | 1 |
| Traveling Speed(m/s) | 0.4-1.4 |
| Productivity(hm2/h) | above 0.06 |
| Fuel Consumption(kg/hm2) | below 30 |
| Engie Model | WN1100FE Diesel |
| Rated Power(kw) | 9.5 |
| Starting System | Electric Start |
| Hearder Lifting System | Hydraulic |
| Reel Diameter(mm) | 730 |
| Tilling depth(mm) ≥120 | ≥120 |
| Lost Rate | 2.5% |
| Break Rate | 0.7% |
| Impurity Rate | 5% |
