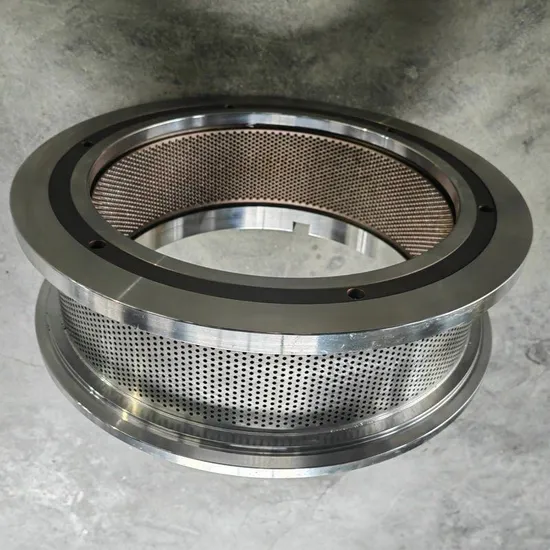

6mm Aperture Stainless Steel Ring Die Granulator for Ruminant Feed
| US$400.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CPM3016-4
Processing Technics
Crushing-before-Mixing
Screen Mesh
Without Screen Mesh
Pellet Mill Type
Ring Die Pelleter
Condition
New
Applicable Materials Shape
Granular
Warranty
One Year
Material
X46cr13
Hole Diameter
3.5mm-8.0mm
Compression Ratio
1:6-1:12
Outer Diameter of Workpiece
300mm-1200mm
Inner Diameter of Workpiece
200mm-900mm
Surface Hardness
HRC52-56
Ring Die Wall Thickness
15mm-100mm
Transport Package
Wooden Case
Specification
According to different type
Trademark
HanPai
Origin
China
HS Code
8436990000
Production Capacity
3000 Pieces/Year
Packaging & Delivery
Package Size
100.00cm * 100.00cm * 50.00cm
Package Gross Weight
150.000kg
Product Description
Specification parameters of feed mills ring die:
•Material:Quality chromium Steel
•Machining aperture:0.8mm up to 18mm
•Outer diameter of workpiece:300mm up to 1200mm
•Inner diameter of workpiece:200mm up to 900mm
•Surface hardness:HRC 52-56
•Ring die wall thickness:15mm up to 100mm
•Compression ratio:according to user demand
| Specification Type | Hole Diameter | Working Width | Designed Output |
| IDAH 530F | 0.8 | 193 | 1.0t-1.5t/h |
| FAMSUN 600 | 170 | 0.8-1.2t/h | |
| ANDRITZ 520 | 178 | 0.8-1.2t/h | |
| IDAH 530F | 1.0 | 193 | 2.5t--3.9t/h |
| FAMSUN 600 | 170 | 2.2t-3.5t/h | |
| ANDRITZ 520 | 178 | 2.2t-3.5t/h | |
| IDAH 530F | 1.2 | 193 | 2.8t-4.6t/h |
| FAMSUN 600 | 170 | 2.5t-4.0t/h | |
| ANDRITZ 520 | 178 | 2.5t-4.0t/h |
| Feed Varieties | Hole Diameter | Compression Ratio |
| Poultry&livestock feed | Φ2.0-Φ4.5 | 1:9-1:20 |
| Shrimp Feed | Φ0.8-Φ2.0 | 1:20-1:35 |
| Fish feed | Φ1.5-Φ5.0 | 1:10-1:25 |
| Crab feed | Φ1.5-Φ5.0 | 1:15-1:26 |
| Biomass and Fertilizer | Φ5.0-Φ18.0 | 1:4-1:10 |
| Cattle and sheep feed | Φ4.5-Φ10.0 | 1:6-1.12 |
| Feline feed | Φ1.6-Φ3.5 | -- |
