Basic Info.
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Table Travel
900X320X405mm
Transport Package
Standard Plywood Package
Production Capacity
20 Sets/ Month
Product Description

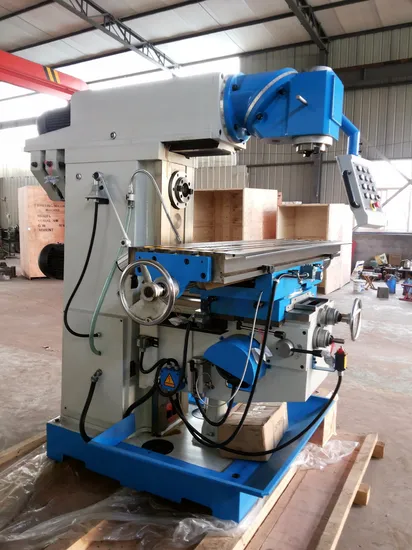

Universal Milling machine:
LM-1450A universal swivel head milling machine is based on theLM1450, installation of rotary table 45 degrees, processing of a wide range ,three-axes automatic feeds, large torque and strong power,1.5KW, fast-moving 2000mm/min.Spindle taper is ISO 50.
Specifications | LM1450A | LM1450 |
Spindle taper | ISO50 | ISO40(ISO50)H |
Distance from spindle axis to guideway | 505mm | / |
Horizontal axis middle height | 0-480mm | / |
Table size | 1630(1500)×360mm | 1250×360mm |
Table travel | 1016(900)×320×405mm | 970(1000)×300×450mm |
Main motor | 4kw | 3(ISO50/4kw) |
Feeding motor | 1.5kw | / |
Spindle speed | 60-1800rpm | 35-1600rpm(V) 40-1300rpm(H) |
Overall dimensions(mm) | 2000×2000×2250mm | 1550×1670×1950mm |
N.W/G.W (kg) | 2650kg/2850kg | 2650kg/2850kg |
