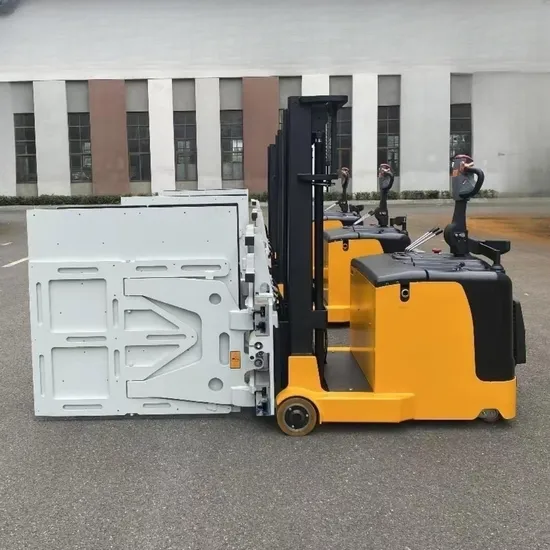

Electric Pallet Stacker with Customized Holding Clips

Product Description

Product Description
Koosn's range of electric stackers is suitable for light and medium duty work within the warehouse. They come with a capacity of up to 1.5 tones and a lifting height of 4.5 meters. Optional foldable platforms aid flexibility and manoeuvrability in the warehouse.


Product Parameters

Model	Unit	CDD08-15
Power Model		Battery
Drive Model		Standing
Stacker Capacity	kg	500
Loading Center	mm	500
Overall Length (Platform Fold/unfold)	mm	2515/2115
Overall Width	mm	850
Clamp Capacity(customizable)	mm	500kg
Outside Fork Distance	mm	560/685
Mini Ground Clearance	mm	55
Wheelbase	mm	1390
Wheel Types, Drive/Load		PU
Wheel Size, Loading	mm	85*70
Wheel Size, Driving	mm	230*75
Balance Wheel Size	mm	130*55
Wheel Number F/R (X=Drive)		4/1X+2
Wheeltread, Driving	mm	490
Wheeltread, Loading	mm	604
Lifting Height	mm	3000
Platform Height	mm	145
Mini Ground Clearance of Fork	mm	85
Closed Mast Height	mm	2000
Lifted Mast Height	mm	3490
Free Lift Height	mm	0
Mast Mode		Dual Mast
Driving Motor(S2-5Min)	kw	1.5
Lifting Motor (S2-5Min)	kw	3
Battery	kg	200

Company Profile

Packaging & Shipping
Exhibition

FAQ

1.Q:How about your delivery time?
A: 5 days to ship if in stock, 25 days if it need to re-produce.
2.Q:Why should I choose from you?
A:Koosen have rich experience to choose suitable equipment to you,as we have been in this line over 13years.Moreover,our products are highly competitive,both in quality and price.
3.Q:What about your warranty time?
A:Generally,the product warranty period is 12 months for key components since you receive it..
4.Q:What should we do if there have quality problems?
A:Pls send picture or video about the broken part to us,
we can provide technical support and free spare part of key parts within 12 moths.
5.Q:What payment methods do you support?
30% deposit and 70% balance will be paid in 3 working days after get copy B/L.
6.Q:What is your trade terms?
We have EXW, FOB, CIF, CFR for you to choose, and we can change according to your requirements.
7.Q:Are you factory?
Yes,we have our own factory.
8: Can I visit your company?
Of course at anytime.
9, Do you support customization?
Yes.We not only provide standard products,but also support customized products.
