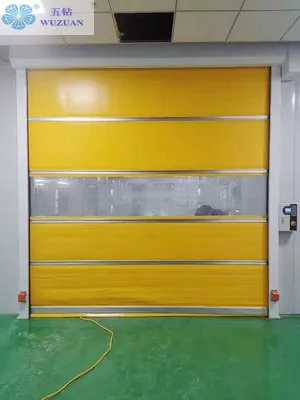

High Speed PVC Rapid Roller Door Fast Rolling Gate Manufacturer Warehouse Clean Room

Product Description

High Speed PVC Rapid Roller Door Fast Rolling Gate Manufactuer Warehouse Clean Room
Hengtaichang high speed rolling shutter doors are designed for fast open and close, allowing people and/or equipment to move quickly through the opening. This type of doors is ideal for large size opening and designed for high performance daily use both internally and externally with minimal maintenance. The door operated as speed > 1m/s, this model doors offers beneficial energy saving in both commercial and industrial application. In additional it reduces noise and dust from nearby working areas. It was ideally choice for many commercial and industrial application Fiber: industrial environmental protection high strength polyester fiber, double PVC coating, a variety of color selection (Yellow, red, blue, silver, ect.) Anti-corrosive, prevent ultraviolet ray, prevent salt, thickness of 0.9mm. Origin: Belgium.

Window Part: Transparent window part material is not easy aging, not variant, antifreeze performance is good, not sun crack in the winter

Aluminum Bar: Professional enhanced industrial aluminum alloy wind resistance reinforcement, thickness:3.0-5.0mm, low maintenance cost.

Sealing brush: Built-in brush seal,is better than traditoinal lateral seal brush seal, The bottom is equipped with increasing gas insulation cloth, can be closely integrated with ground.

Control system: Traditional mechanical limit switch combined with electronic limit switch, dual protection, the use of advanced science and technology, adopt high quality frequency converter and PLC control circuit,motor soft start,slow stop,
prolong the service life of the motor,Running speed is 0.6 ~ 1.5 M/S, can be adjusted according to customer needs, more humane; Rotary encoder limit, more stable,simple to set up.Door operation management, the data parameters,according to the actual need to adjust.

Overhead Shell: High quality steel plate welding, surface anti-corrosion treatment, is not easy to rust,beautiful and strong.

Motor shell with guide rail way:Motor shell made by China brand production manufacture,high quality of galvanized sheet fluor-carbon painting process, the rails thickness is 3.5mm aluminum alloy which is used in industry,surface oxidation treatment. Rail surface with bright decoration article,so the whole boday more coordinate and beautiful.
Power system: high-speed door power 220v/380v special brake motor,power 0.75KW/1.5KW/1500s/roll. bearing heavy load type S4.Can be manual when power off.

Infrared Security system: effectively prevent hit people.

Door and switch operation: Magnetism switch,control button,rocker,the external switch box,infrared security system.

Open ways when power off: Rocker,the reserve power supply.
Brush:
Raw Material Show:
Open Ways:
Structures:
Specification.1. Door curtain: High strength polyster textile fiber
2. Curtain thickness: 0.8 - 1.2 mm
3. Opening speed: 0.8 - 1.5 M/S
4. Closing speed: 0.6 - 1.0 M/S
5. Side Rail options: 2.0mm thick cold-roll steel sheet (Bao Steel) / 2.0mm thick stainless steel
6. Tube shaft: 114mm diameter / 2.5mm thickness round tube
7. Cover box options: 1.0mm thick cold-roll steel shett (Bao Steel ) / 1.0mm thick stainless steel
8. Motor brand: SEW / Powever / Damar
9. Motor power: 550W / 750W / 1500W / 2200W / 4000W / 5500W
10. Control box: HOLIP / DFL
11. Safety performance: Airbag / Photo cell 12. Optional control mode:Loop Sensor, Radar, Remote control, Linkage interlock, Pull rope, etc..

Control System	DFL PLC / Holip PLCand other components.
Dynamical Systems	Motor: SEW / Powever / Damar or Nord from Germany Factory.(China unit: Powever/SERVO system)
	Most stable brake system or Advanced Servo System, 220V~380V/50 -60HZ
	Power: 0.75kw ~ 3.0kw(According to the size of door)
Fast Speed Gate Construction
Framework	In 2mm thickness cold-roll steel sheet or on request in Stainless steel INOX201/304, Plaint color accordingly to your order
Rolling Drum	2mm thickness steel/Galvanized rube with machined blacks at each side and incorporating high-speed bearing.
Cross Bar	Normal in aluminum rod for small doors. Additional with Steel pipe for large opening and high-wind application.
Color	Red/Yellow/Blue/Sky blue/Orange/Mesh white and yellow/White/Green/Black/Grey.
Transparent Window	Transparent pvc sheet 1.5mm thickness. Window sizes and loaction accordingly to your requirement.
Command System	Magnetic Loop/Radar Sensor/Rope switch/Remote Control/Finger printer/Bluetooth/Key card etc.
Safety System & Seal
Photocell Sensor	Installed ont he side track with emergency rebound opening when sensing obstacles.
Safety edge bottom	When the people or vehicle touch the bottom edge of closing doors, It bound up automaticlly.
Emergency stop protection	With emergency stop button on the main control board.
Seal	Seal brush are installed inside of guider rail. Besides there is trap heavier fabric on the bottom, Close to any uneven ground.
Technical Parameter	Power Supply: Single or Three phase 220V~260V.. Three phase 380V~460V. 50/60HZ.
	Max Size: 10m width * 15m height
	Opening & Colsing speed: 0.7~1.5m/S
	Operation Frequency: 1000~1500 Cycles/Day
	Wind load: 15m/S

Why Choose Us?
Customers satisfaction is our eternal goal. We adhere to the management principles of "quality first, customer first and credit-based" since the establishment of the company and always do our best to satisfy potential needs of our customers. Our company is sincerely willing to cooperate with enterprises from all over the world in order to realize a win-win situation since the trend of economic globalization has developed with anirresistible force.
Over the years, our company has been working with the well-known manufacturers work closely with gated, has introduced the latest and most sophisticated production equipment of various volumes gate. The use of superior Quality raw materials and high-quality components, and adhere to the " excellence, precision production" product concept, to ensure the production of a variety of beautiful rolling door products Generous, easy operation, security, security, durability, quality assurance. We spirit of "honesty, quality first, customer first, service leader," the case Purpose, passion for the community to provide the safest customers the best a variety of roll gates, but also provide comprehensive maintenance service.

F A Q : 1,Are you trading company or manufacturer ? A: We are factory. 2. What's the payment details? Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. 3. What's the delivery time? For common order, about 15 days only. 4. What about the warranty for the doors? We provide 12 months warranty for all doors and accessories. 5. Do you provide OEM Service? Yes. OEM & ODM Service is ok for us. 6. What's the MOQ? We accept 1 set as sample order. 7. How about the package? Plywood case, suitable for sea freight or air freight, as your request.
