Shrinking Machine for LPG Cylinder Refurnishment

Product Description

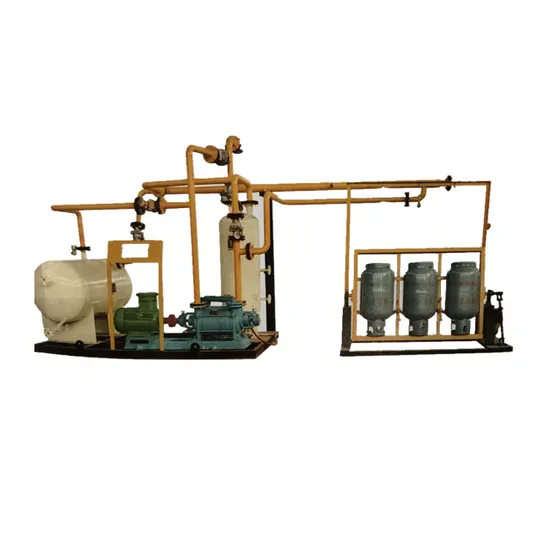

Shrinking Machine for LPG Cylinder Refurnishment Machine Specification Residual liquid removal machine Model residual liquid recover is used to recoverthe residual gas and liquid in LPG cylinder. Thisdevice adopts the necative pressure method toI drawy out the residual, The residual is drawn out andtransported in the closure svstem,The recoveredresidual gas and liquid can access to burning deviceas fuel. Valve mounting and dismounting machine
Model YJ-2 and YJ-2s are suitable to load and unloadthe valves of model YSP-10,15 and 50 LPG cylinders.
Main parameter
1. Motor power: 1.5kW
2. Drive speed ratio: 130-1.60
3. Main shaft speed ratio: 16~32r/min
4. Main shaft moment: 300N/m
5. Air source pressure: 0.5-06MPa
6. Weight:600kg Incinerator furnace
The high temperature residual heat of incinerator cantransport the heat energy to the solid dry channel byFUL incinerator residual heating use device,it carreduce 50-80% energy consumption in dry channel.
1. Heat exchange rate: 50~90%
2. Suction fan volume: 2706 m3/h
Fan pressure: 171mH2O
Motor power: 4kW
3. Weight:2000kg Handle welding machine
Work with Lincoln 500 model gas shield welder
Speed: 1pcs/min
3 torches welding together Base welding machine
Work with Lincoln 500 model gas shield welder
Speed: 1pcs/min
3 torches welding together Shot blasting machine
This machine is suitable for surface cleaning and strengthening of large and medium steel pipes. After cleaning, the steel pipe presents a silver-white metallic luster, and its surface tensile and compressive strength is improved. This machine is a pass-through type, which continuously conveys workpieces in series, and rotates while moving, with high production efficiency and good cleaning effect.
Cleaning steel pipe size: medium 300x5000mm (length)
Channel running speed: 1-5m/min (frequency conversion speed regulation)
Required projectile diameter: Medium 0.8~Medium 1.2mm
The first projectile load: 800kg
Inlet (outlet) material bank length: 5000mm
Track distance: 400mm
Loading weight: 30kg/m Air leakage testing machine
Test pressure:3.2Mpa
Test efficiency:100~120Pc/h(YS-6) 50-70Pc/h(YS-6B)
Air source pressure:0.5-0.6MPa(YS-6)
Motor power:22kW
Weight:2500kg(Model YS-6,6 positions) Silk printing machine
The machine adopts the scraper printing principle.itis suitable for cylinder inspection center and cylindermanufacturer.lt is ideal LPG steel cylinder printingequipmment.
Main parameter 1. Work efficiency: 120(pcs per hour)
2. Air source pressure: 0.506MPa
3. Overall size: 1265x850x1285mm 4. Weight: 200kg Successful Cases
What can we provide? We can provide you
1.Detailed Proposal and Price List
2.Technical Specification
3.Technical Drawing
4.Production Flow Design
5.Production Line Layout
6.Technical Support for Factory Operation
7.Thorough Spare Parts
8.Machine Maintaince and Installation, Commissioning Service Company Profile We are a professional LPG cylinder machinery manufacturer with more than 30 years' experience, we improve our machine technology all the time to satisfy the customers' requirements. Based on our good reputation in the market and the best service that praised by our clients, we establish the good cooperation with many clients from overall the world, such as Turkey, Vietnam, India, Bangladesh, Thailand, Ghana, Nigeria, Argentina.
Exhibition We attend all relevant summit every year to promote our advanced machines to the world, such as:
2018 World LPG summit in Houston
2018 EURO LPG summit in Monaco
2019 Asian LPG summit in Bangladesh
2019 African LPG summit in Tanzania
2019 World LPG summit in Amsterdam
2019 Nigerian LPG summit in Logas
......
FAQ In order to recommend you the proper machine, we'd like to get the below info from you:
- What's the cylinder size you want to repair?
- It's better to provide the cylinder drawing and picture.
- What's the daily capacity you want to attain? Welcome to inquiry!
